Vertex Top End Piston Kit 85cc
Vertex Top End Piston Kit 85cc
Available in stock (5)
-
Estimated delivery: Feb 04 - Feb 08
About this product
About this product
Upgrade your two-stroke engine with the Vertex Top End Piston Kit. This cast replica piston kit provides reliable performance and durability, offering an excellent OEM replacement option. Ideal for enthusiasts and professionals seeking quality and value.
Description
The Vertex Top End Piston Kit is designed as a direct replica, featuring a cast piston crafted to match original equipment specifications. Each piston undergoes a T-5 heat-treating cycle, hardening and tempering the aluminum alloy for enhanced strength. The piston skirt is coated with Molybdenum Disulphide, which promotes rapid break-in and prolongs piston life. Constructed from gravity-cast aluminum alloy with an 18% silicone content, this piston achieves a balance of lightweight design and robust performance. This top end piston kit is specifically designed for 85cc 2-stroke engines, with a bore size and piston diameter of 47.45 mm. It provides reliable performance comparable to OEM parts.
Features & highlights
- Cast replica piston designed to match OEM specifications for reliable performance.
- T-5 heat treatment enhances the strength and durability of the aluminum alloy piston.
- Molybdenum Disulphide coated piston skirt ensures faster break-in and increased piston life.
- Gravity-cast aluminum alloy with 18% silicone content provides a lightweight yet strong piston.

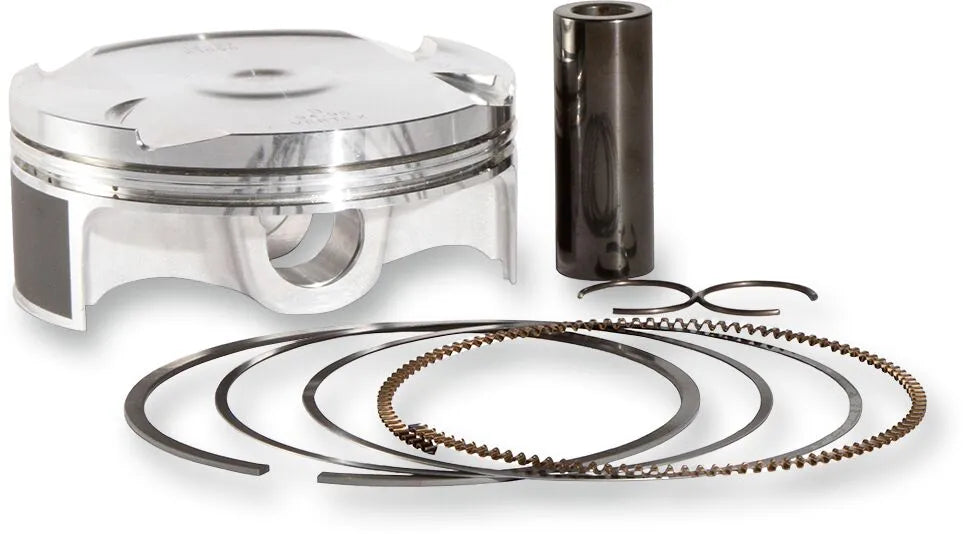

- Complete top end kit includes piston, rings, wrist pin, circlips, and top end gaskets for convenient installation.
- Nitride coated steel rings offer excellent sealing and wear resistance.
Technical specifications
- Brand: Vertex
- Part Number: VTK24370A
- Engine Type: 2-Stroke
- Displacement: 85cc
- Piston Material: Aluminum Alloy, Cast
- Piston Diameter: 47.45 mm
- Bore Size: 47.45 mm
- Piston Size: Standard Size A
- Ring Material: Nitride Coated, Steel
- Type: Top End
- Units: Kit
Important to know
This kit includes all necessary components for a top-end rebuild: piston, rings, wrist pin, circlips, and top-end gaskets.
