Vertex Forged Replica Piston Kit 450cc

Upgrade your engine's performance and reliability with the Vertex Forged Replica Piston Kit. Designed as an OE replacement, this kit provides superior strength and durability, ensuring your engine operates at its peak. Get the most out of your four-stroke engine with this meticulously crafted piston kit.

Description

The Vertex Forged Replica Piston Kit is engineered for enthusiasts and professionals seeking a high-quality replacement piston. Forged from 2618 aluminum alloy, these pistons offer exceptional strength and durability compared to cast pistons. Each piston undergoes a T-5 heat treatment, hardening and tempering process to further enhance its structural integrity. The piston skirt features a Molybdenum Disulphite coating, reducing friction, promoting faster break-in, and extending piston life. This kit is designed for a 450cc 4-stroke engine with a bore size of 96.00 mm and a compression ratio of 12.5:1. Standard Size C piston diameter measures 95.97 mm. It’s an OEM replacement ensuring proper fit and function. The forged replica design mirrors the original equipment manufacturer's specifications.

Features & highlights

• Forged from high-strength 2618 aluminum alloy for superior durability.
• T-5 heat treatment provides exceptional hardness and wear resistance.
• Molybdenum Disulphite coated skirt reduces friction and extends lifespan.
• Designed as a direct OE replacement for easy installation.
• Includes piston, rings, wrist pin, and circlips for a complete rebuild.
• Nitride-coated steel rings ensure optimal sealing and performance.
• Optimized for 450cc 4-stroke engines.

Technical specifications

• Brand: Vertex
• Product Name: Piston Kit
• Engine Type: 4-Stroke
• Displacement: 450 cc
• Piston Material: Forged Aluminum Alloy (2618)
• Bore Size: 96.00 mm
• Piston Diameter: 95.97 mm
• Piston Size: Standard Size C
• Compression Ratio: 12.5:1
• Ring Material: Nitride Coated Steel
• Skirt Coating: Moly Coated

Important to know

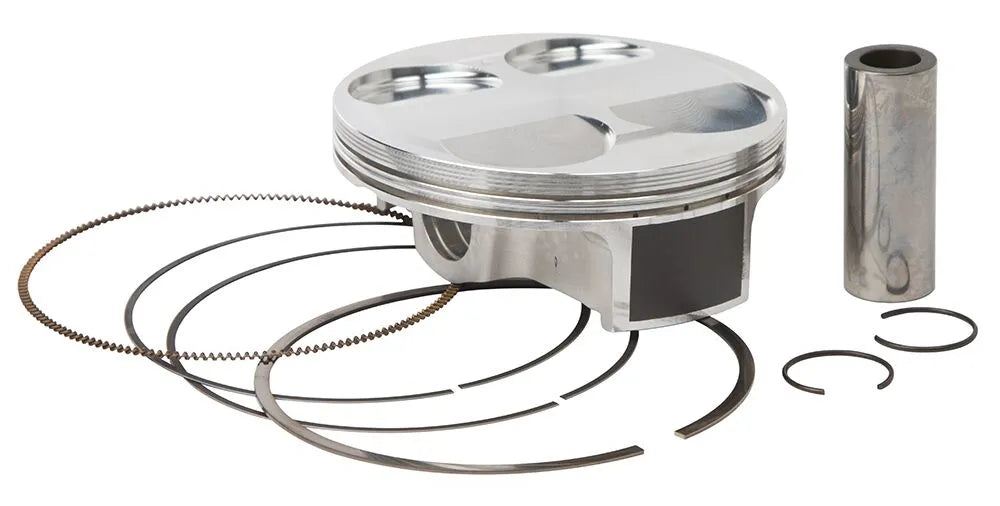

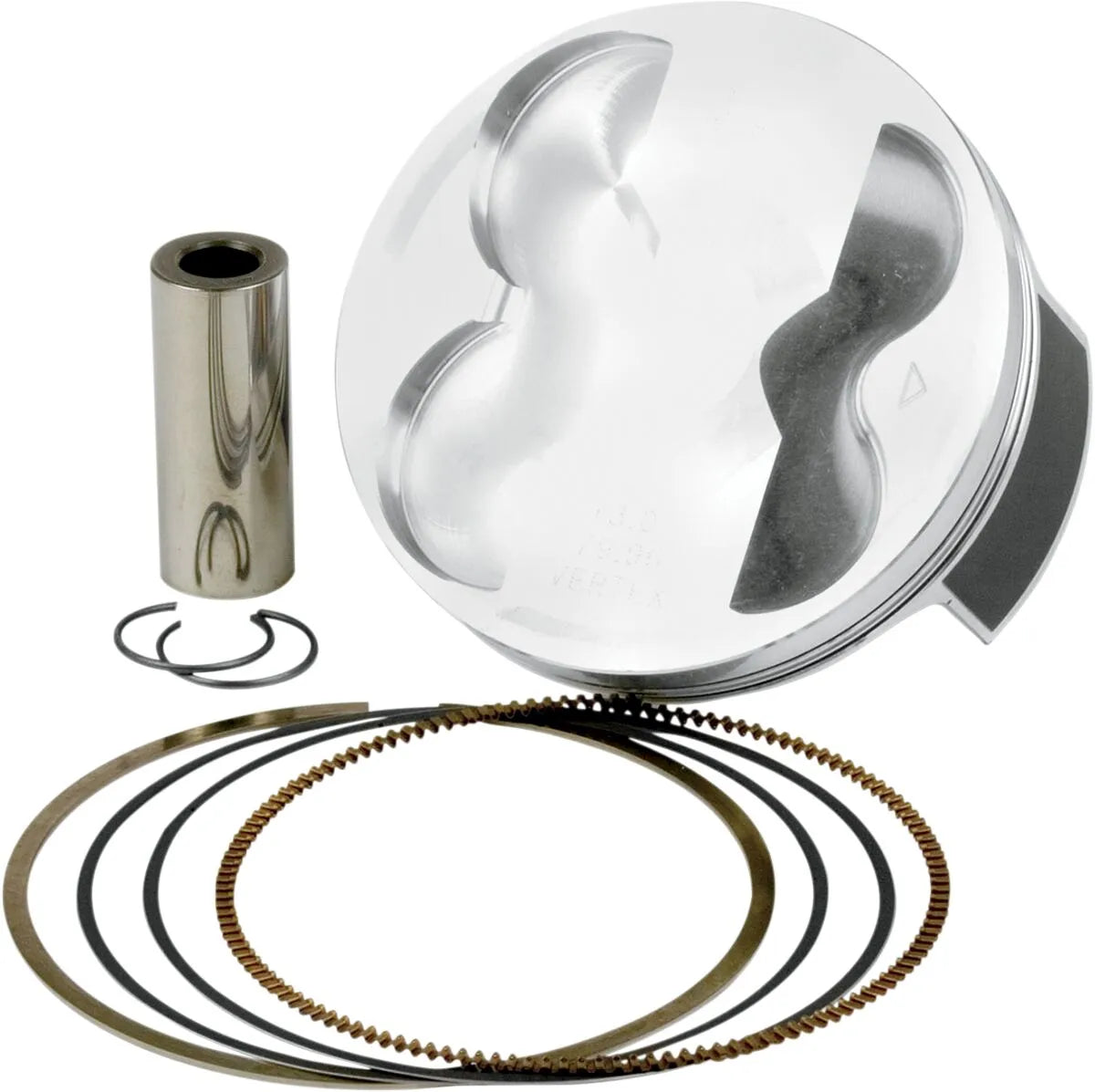

This kit includes the piston, rings, wrist pin, and circlips. Two-stroke piston rings are sold individually, while four-stroke piston rings are sold as a set.
