Vertex Forged High Compression Piston Kit 250cc

Maximize your engine's potential with the Vertex Forged High Compression Piston Kit. Engineered for superior performance and durability, this kit is designed to deliver a significant boost in power and torque across the entire RPM range. Experience the difference that high-quality components and advanced manufacturing can make.

Description

The Vertex Pro HC Forged Piston Kit is meticulously crafted using Vertex technology to achieve an optimal high compression ratio of 14.2:1, enhancing your 250cc 4-stroke engine's output. Each piston is forged from 2618 aluminum, ensuring exceptional strength and resistance to wear under extreme conditions. The pistons undergo a T-5 heat treatment, a hardening and tempering cycle to further improve their structural integrity. A high-tech Molybdenum Disulphite coating is applied to the piston skirts, reducing friction and promoting faster break-in times, while also extending piston life. This kit includes everything you need for a complete installation: piston, rings, wrist pin, and circlips. Unleash the full potential of your engine with Vertex.

Features & highlights

• Forged from high-strength 2618 aluminum alloy for superior durability.
• High compression design to significantly increase power and torque.
• Molybdenum Disulphite coated skirts reduce friction and extend piston life.
• T-5 heat treatment enhances piston hardness and wear resistance.

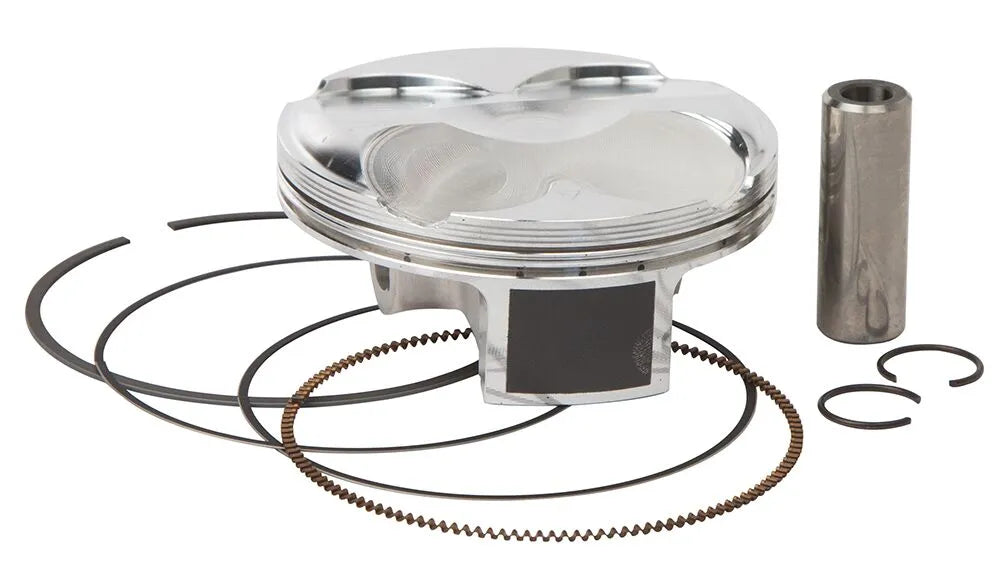

• Complete kit includes piston, rings, wrist pin, and circlips for easy installation.
• Optimized for 250cc 4-stroke engines.

Technical specifications

• Brand: Vertex
• Part Number: 24117D
• Engine Type: 4-Stroke
• Displacement: 250cc
• Bore Size: 77.00 mm
• Piston Diameter: 76.98 mm
• Compression Ratio: 14.2:1
• Piston Material: Forged Aluminum Alloy
• Piston Size: Standard Size D
• Ring Material: Nitride Coated Steel
• Skirt Coating: Moly Coated

Important to know

• Two-stroke piston rings are sold individually.
• Four-stroke piston rings are sold as a set.
