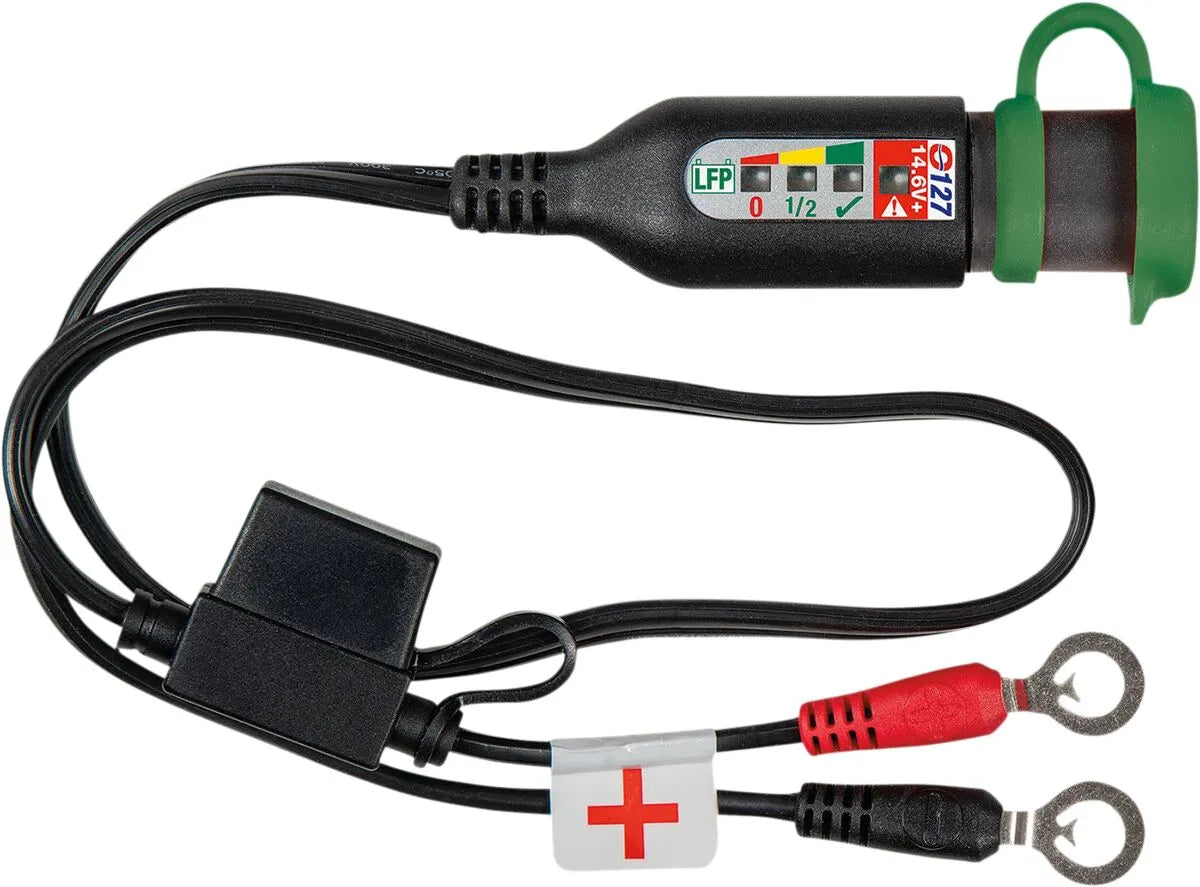

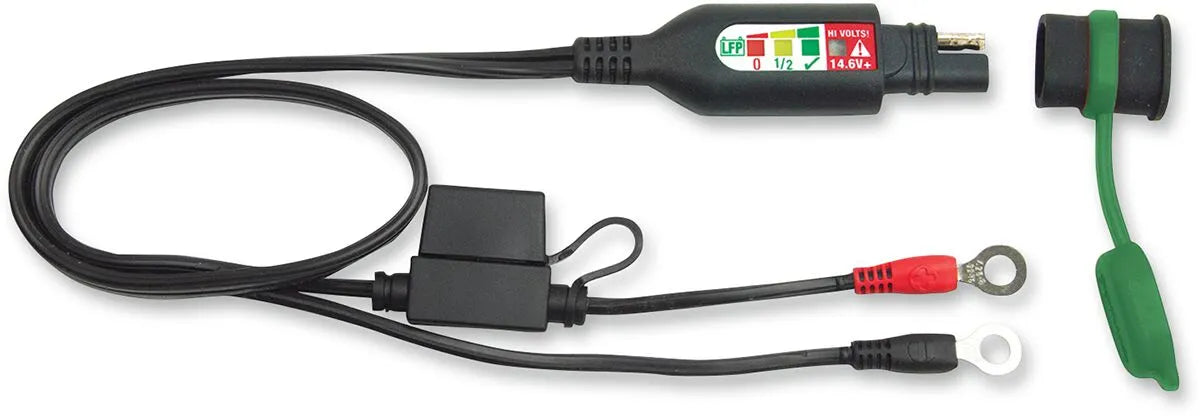

Tecmate Optimate Lithium Battery Monitor

The Tecmate OptiMate Lithium Battery Monitor is your reliable solution for monitoring the health and charge status of your 12.8V/13.2V lithium batteries in powersport vehicles. This device offers a permanent connection to your battery, providing continuous insight into its condition and the performance of your vehicle's charging system.

Description

This advanced monitor features two automatic modes for comprehensive analysis. The battery charge level monitor uses a single LED blink to indicate the charge status, while the charging system test utilizes an arrow mode to confirm proper charging. Three LEDs clearly display the 'full to empty' voltage range for lithium batteries (LFP/LiFePO4/Lithium nano Phosphate), ensuring you always know your battery's state. A fourth LED provides an overcharge warning, protecting your battery from potential damage. The integrated SAE charge port with a weatherproof sealing cap offers convenient and secure connectivity. With a minimal long-term draw of less than 0.2mA in battery charge level mode, this monitor ensures your battery isn't unnecessarily drained.

Features & highlights

• Continuously monitors the charge level of your 12.8V/13.2V lithium powersport battery.
• Confirms proper operation of the vehicle charging system with clear LED indicators.
• Features two automatic modes: battery charge level monitoring and charging system testing.

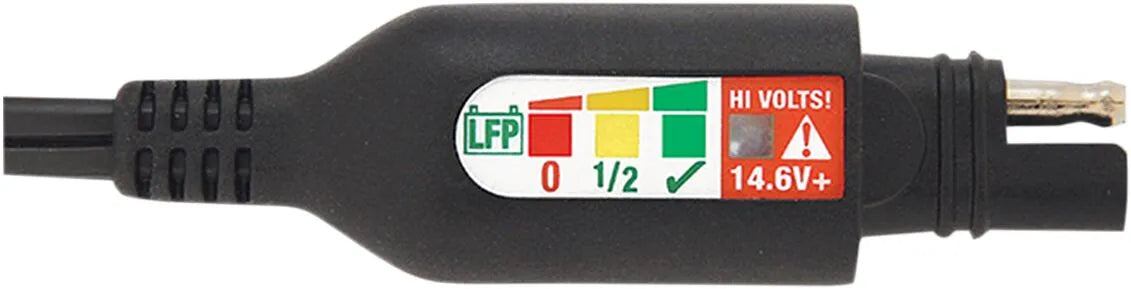

• Provides 'full to empty' voltage range display for lithium batteries via three LEDs.
• Includes an overcharge warning LED to prevent battery damage.
• SAE charge port with weatherproof cap ensures reliable connection in all conditions.
• Minimal long-term draw (less than 0.2mA) preserves battery life.

Technical specifications

• Brand: Tecmate
• Product Name: Monitor
• Type: Lithium Battery Monitor
• Volts: 12V
• Cable Length: 24" (610 mm)
• Power Connection Type: SAE Plug, Fused, 1/4" Terminal Eyelet
• Color/Finish: Black

Important to know

This monitor is designed specifically for 12.8V/13.2V lithium (LFP/LiFePO4/Lithium nano Phosphate) batteries. Ensure compatibility before installation.
