S&s Cycle M8 Cam Chest Kit

Upgrade your Milwaukee-Eight engine with the S&S Cycle Cam Chest Kit, meticulously engineered for superior quality, perfect fit, and enhanced performance. This comprehensive kit ensures optimal oil delivery, improved cam timing, and increased durability for your engine.

Description

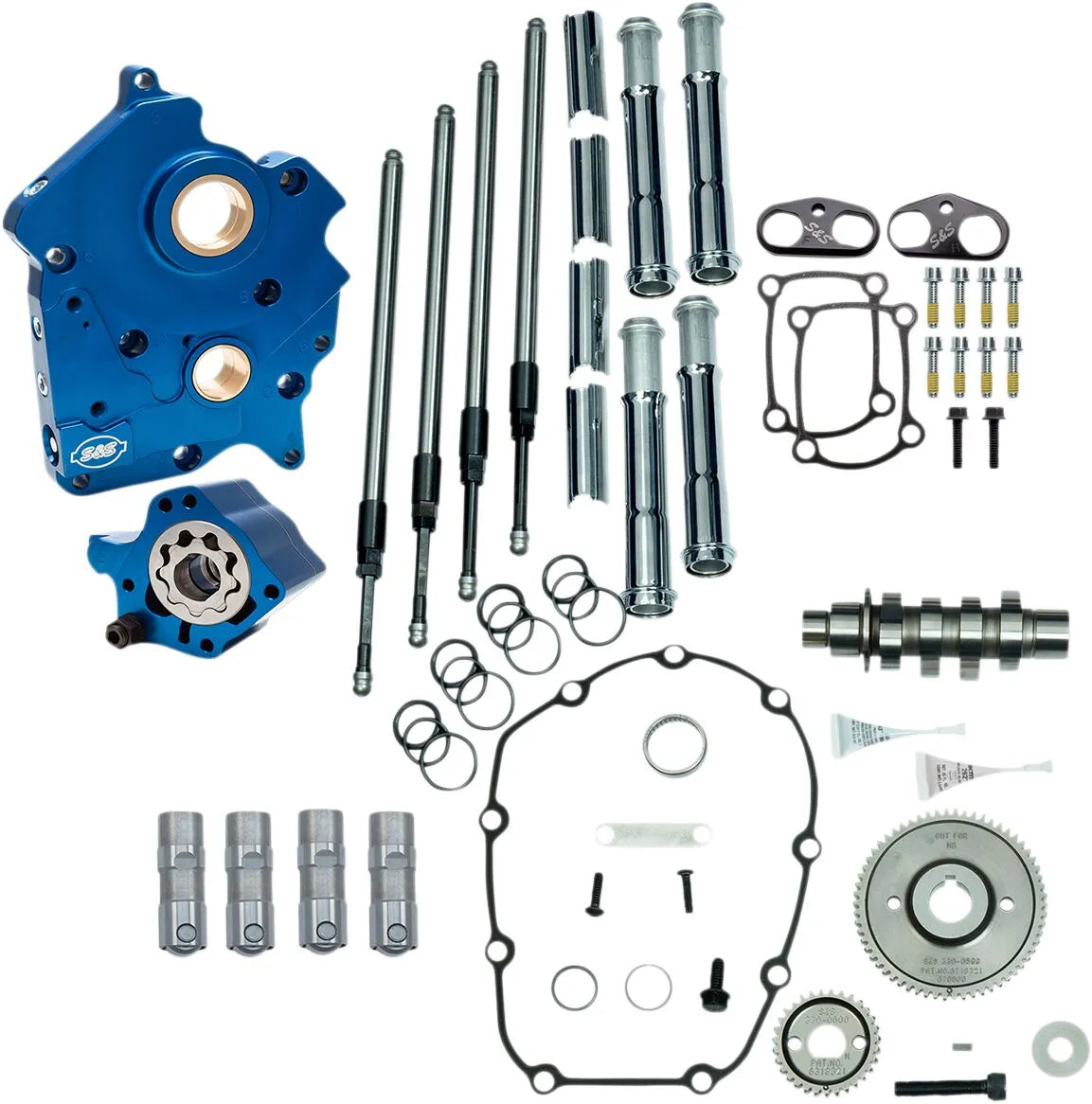

The S&S Cycle Cam Chest Kit is a complete solution for upgrading your M8 engine's cam chest. The oil pump and cam plate are precision-machined from billet aluminum and feature a distinctive blue anodized finish. Serviceability is enhanced with removable passage plugs, while independent scavenge sections for the flywheel cavity and cam chest ensure efficient oil return. Debris screens in both scavenge pickups and a magnet in the cam chest prevent contaminants from reaching the oil pump. An adjustable pressure relief valve allows for fine-tuning while installed. Increased oil flow capacity on both the feed and scavenge sides maximizes lubrication and cooling. This kit provides improved cam timing accuracy and eliminates the stock cam chain tensioner. The inclusion of S&S Quickee pushrods, premium tappets, and billet aluminum tappet cuffs – hard-anodized in black for added strength and distortion resistance – further elevates performance and durability. These features ensure improved tappet stability, especially in high-lift and high-RPM conditions. Gear drive provides quiet operation.

Features & highlights

• Complete kit with matched components for superior quality and performance.
• Billet aluminum oil pump and cam plate with blue anodized finish for enhanced durability and aesthetics.
• Independent scavenge sections and debris screens ensure optimal oil cleanliness.
• S&S Quickee pushrods and premium tappets for improved valve train stability.
• Billet aluminum tappet cuffs with hard-anodized black coating for increased strength and distortion resistance.
• Adjustable pressure relief valve allows fine-tuning.
• Eliminates stock cam chain tensioner, enhancing reliability.

Technical specifications

• Brand: S&S Cycle
• Product Name: Cam Chest Kit
• Type: Gear
• Grind: 465G
• Application: Water Cooled
• Intake Duration: 197.2°
• Intake Lift: 0.462"
• Intake Open: 2.6° Front, 2.8° Rear
• Intake Close: 14.6° Front, 14.4° Rear
• Intake Lobe Centerline: 96.0° Front, 95.8° Rear
• Intake Lift at TDC: 0.087° Front, 0.088° Rear
• Exhaust Duration: 218.9°
• Exhaust Lift: 0.462"
• Exhaust Open: 30.1° Front, 33.1° Rear
• Exhaust Close: 8.8° Front, 5.8° Rear
• Exhaust Lobe Centerline: 100.6° Front, 103.6° Rear
• Exhaust Lift at TDC: 0.109° Front, 0.098° Rear
• Features: Chrome Pushrod Tubes

Important to know

This kit includes outer drive gears, all necessary gaskets, bearings, and hardware for a complete installation. Made in the USA.
