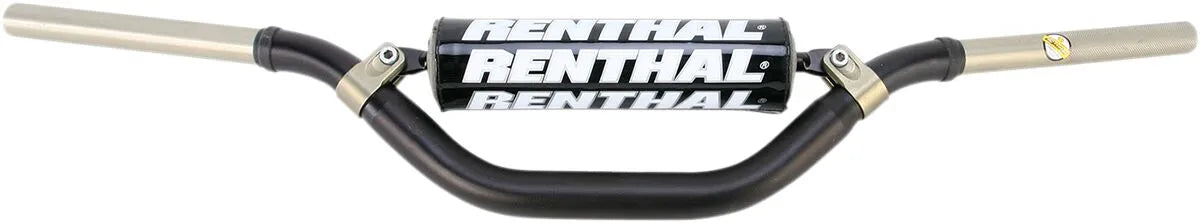

Renthal Twinwall Handlebar - 1-1/8" Clamping Diameter

The Renthal Twinwall® Handlebar represents a revolutionary design, borrowing principles from aircraft design to deliver the ultimate combination of strength, lightweight performance, and rider comfort. Trusted by top racers worldwide, the Twinwall® handlebar is engineered to withstand the most demanding conditions.

Description

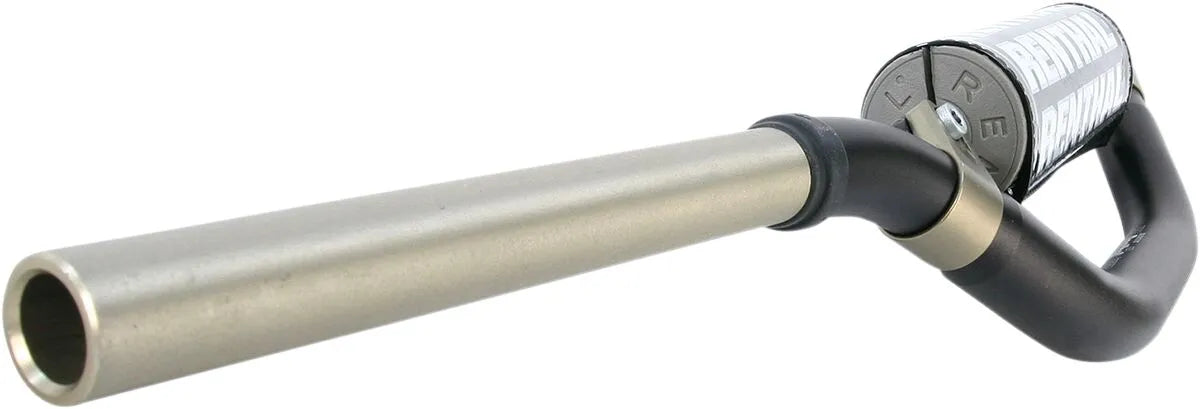

Featuring a unique twin-tube construction, the Renthal Twinwall® handlebar significantly reduces the risk of failure. The outer tube is constructed from 7010-T73 aluminum, offering exceptional resistance to mechanical damage and corrosion, ensuring long-lasting durability. The inner tube, made from ultra-high-strength 7010-T6 aluminum and hard anodized, resists wear from twist grips and controls, maintaining optimal performance. The handlebar's design incorporates rubber seals to protect against water and cleaning fluids, extending its lifespan. Precise laser markings facilitate accurate positioning and centering. Each handlebar includes an updated injection-molded foam bar pad, enhancing rider protection and improving overall durability. The 1-1/8" clamping diameter provides a secure and stable connection to your motorcycle.

Features & highlights

• Twinwall® construction for superior strength and reduced risk of failure.
• Outer tube made from 7010-T73 aluminum for exceptional resistance to mechanical damage and corrosion.
• Inner tube constructed from ultra-high-strength 7010-T6 aluminum, hard anodized to resist wear.
• Rubber seals prevent water and cleaning fluids from entering the handlebar.
• Laser marked for accurate positioning.
• Includes an updated injection-molded foam bar pad for enhanced protection and durability.
• Knurled clutch end to maximize grip adhesion.

Technical specifications

• Brand: Renthal
• Product Name: Handlebar
• Type/Bend: RC, Mini, Twinwall
• Material: Aluminum
• Color/Finish: Black, Gloss
• Handlebar Diameter: 28.6 mm (1-1/8")
• Controls Diameter: 22 mm (7/8")
• Clamping Diameter: 28.6 mm (1-1/8")
• Clamping Width: 80 mm (3-1/8")
• Width: 75.4 cm (29-3/8")
• Height: 11.2 cm (4-7/16")
• Pullback/Sweep: 40 mm (1-5/8")
• Rise: 80 mm (3-1/8")
• Features: Knurled Clutch End, Crossbar, Includes Pad

Important to know

Requires model-specific 1-1/8" bar mounts for bikes originally equipped with 7/8" bars.
