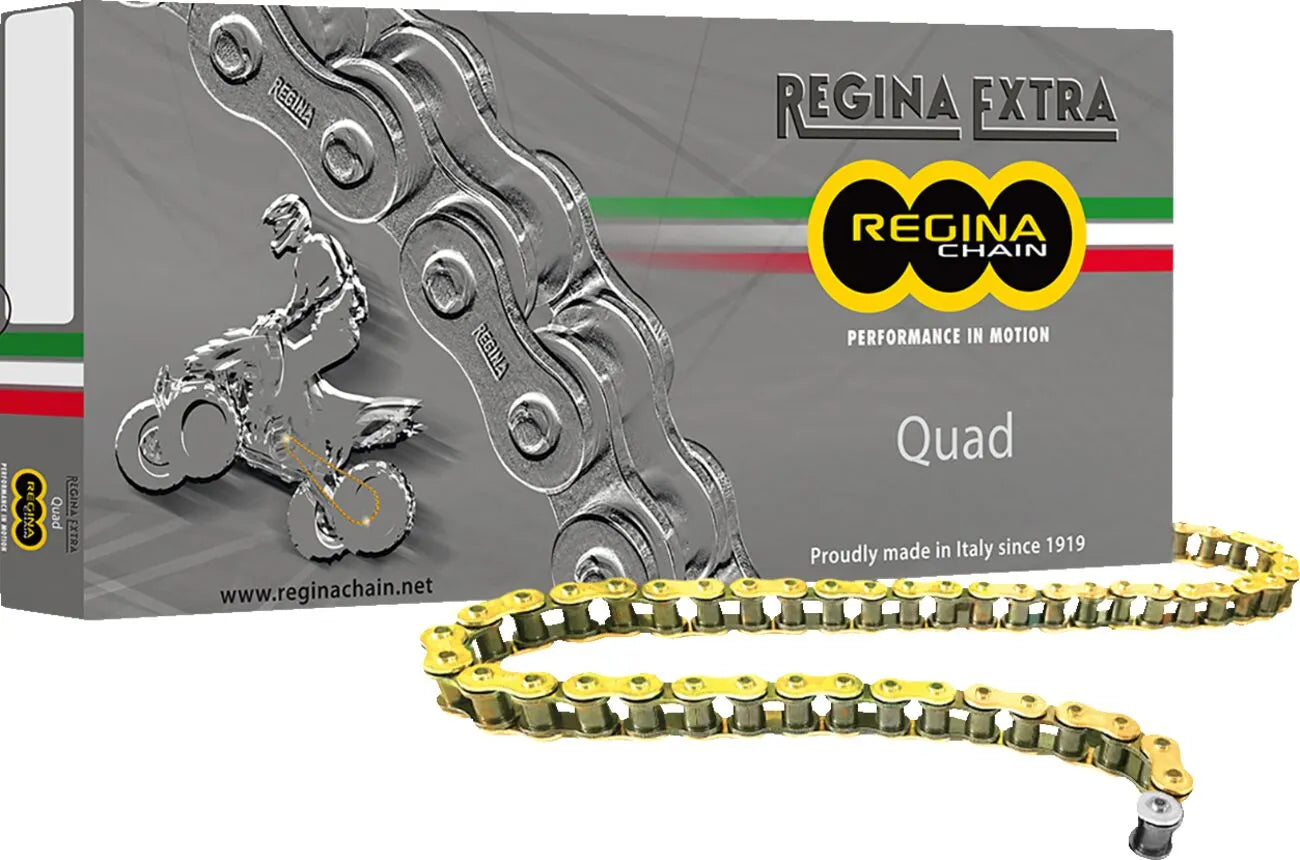

Regina 520 Quad Series Atv Drive Chain

The Regina 520 Quad Series chain is engineered to conquer the demanding conditions of ATV riding. This high-performance, lightweight chain delivers exceptional durability and power transfer, ensuring reliable operation in the toughest environments. Experience the difference of a chain designed specifically for the rigors of ATV use.

Description

Specifically developed for ATVs, the Regina 520 Quad Series drive chain features patented Z44 sealing rings that significantly enhance performance and extend wear life, surpassing traditional X-ring and Z-ring chains. The advanced design reduces friction by 50% compared to standard O-rings, maximizing power delivery and minimizing wear. Constant lubrication, provided by specialized high-temperature grease in the pin/bushing area, guarantees long-lasting performance. High-carbon alloy pins minimize wear, while increased roller thickness further enhances durability. Thicker outer plates and quad-riveting provide exceptional tensile strength, ensuring the chain can withstand extreme loads. All components are shot-peened for maximum fatigue resistance, and chains are pre-loaded to ensure superior out-of-the-box performance and minimal initial adjustment. Suitable for ATVs up to 500cc (although tested to withstand the loads of 900cc machines).

Features & highlights

• Patented Z44 sealing rings dramatically improve wear life and performance.
• 50% reduction in friction compared to traditional O-ring chains for increased power.
• High-carbon alloy pins and increased roller thickness maximize durability.
• Thicker outer plates and quad-riveting provide exceptional tensile strength.
• Shot-peened components offer maximum fatigue resistance.
• Pre-loaded for superior performance and minimal initial adjustment.
• Gold finish for a premium look and added corrosion resistance.

Technical specifications

• Brand: Regina
• Chain Size: 520
• Chain Type: 520 Quad
• Color: Gold
• Master Link Type: Clip
• Maximum Engine Displacement (Offroad): 500 cc
• Number of Links: 100
• Seal Type: Z44-Ring
• Tensile Strength: 36.5 kN (8205 lb)
• Weight: 1.76 kg/100 Links

Important to know

Ensure proper chain tension and lubrication for optimal performance and longevity. Always use a compatible master link for secure closure.
