Prox Piston Kit - Dual Ring Design

Upgrade your engine's performance with the Prox Piston Kit. This high-quality kit is engineered for superior strength, durability, and optimal performance. Experience enhanced power and reliability with this complete piston solution.

Description

The Prox Piston Kit features a high-quality cast piston crafted with dedicated tooling and molding, ensuring precise fit and function. Constructed from a hypereutectic alloy, the piston offers exceptional strength and reduced expansion, contributing to increased engine longevity. The special dual-ring design significantly improves durability and resistance to wear, providing consistent performance under demanding conditions. A full MOS2 (Molybdenum Disulphite) skirt coating enhances the breaking-in process and minimizes scuffing, while the anodized piston dome provides increased protection against excessive heat, ensuring optimal thermal management. The kit utilizes high-quality rings, such as Riken, for superior heat transfer and sealing, maximizing engine efficiency and power output. Ideal for 700 cc and 593 cc 2-stroke engines with a 72.00 mm bore.

Features & highlights

• Hypereutectic alloy construction for superior strength and reduced expansion.
• Dual-ring setup enhances durability and wear resistance.
• Full MOS2 skirt coating minimizes scuffing and improves break-in.
• Anodized piston dome protects against excessive heat.
• High-quality rings, including Riken, ensure optimum heat transfer and sealing.

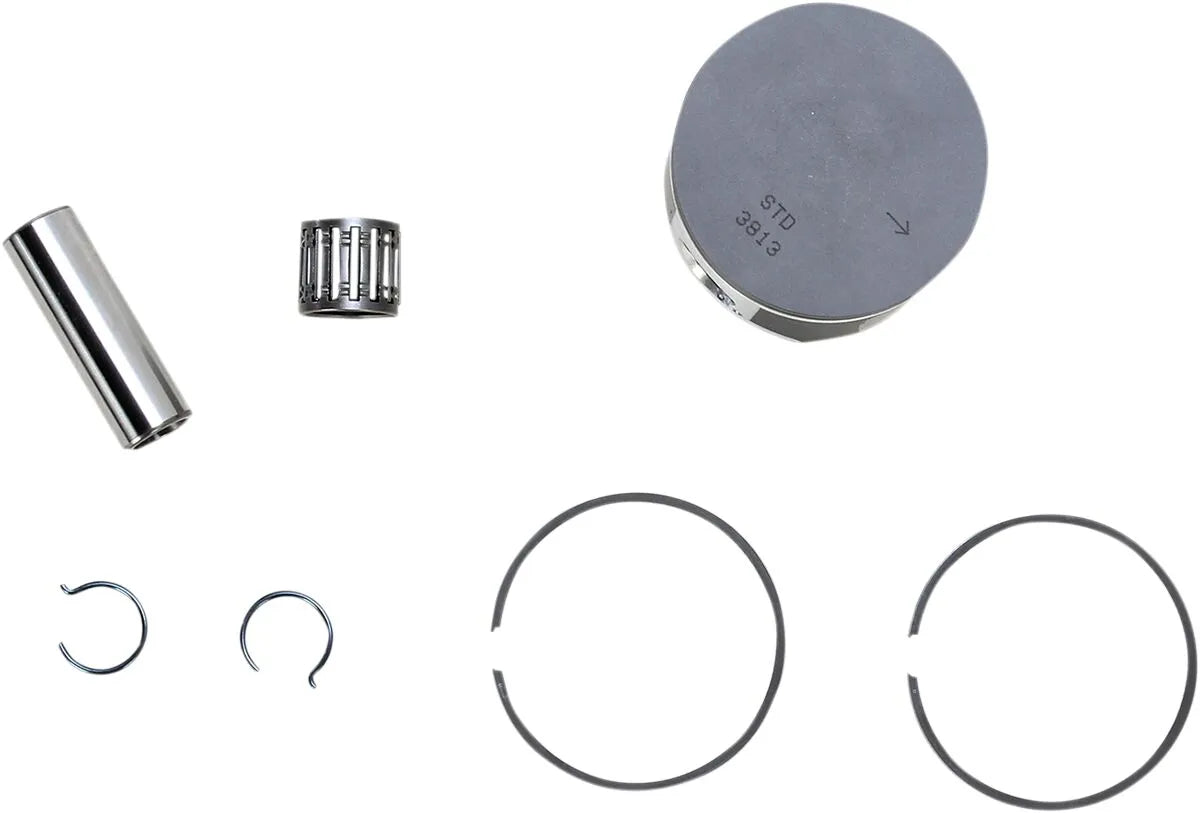

• Complete kit includes piston, rings, pin, clips, and top-end bearing for a comprehensive solution.

Technical specifications

• Brand: Prox
• Part Number: 09103295
• Bore Size: 72.00 mm
• Displacement: 700 cc, 593 cc
• Engine Type: 2-Stroke
• Piston Material: Hypereutectic Alloy
• Ring Type: Dual Ring Design
• Skirt Coating: Molybdenum Disulphite (MOS2)

Important to know

This kit is a complete piston replacement solution, including the piston, rings, pin, clips, and top-end bearing. Ensure proper installation and break-in procedures are followed for optimal performance and longevity.
