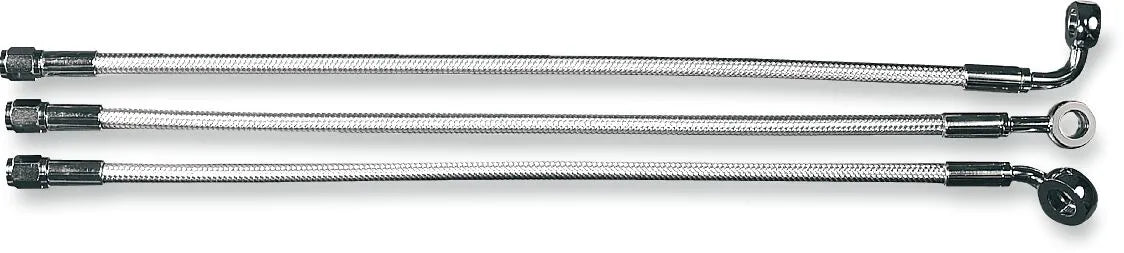

Magnum Shielding Designer Brake Line Kit For Non-abs Models

Upgrade your motorcycle's braking performance with the Magnum Shielding Designer Series Braided Front Brake Line Kit. This kit delivers enhanced stopping power and a sleek aesthetic, ensuring both safety and style on the road. Specifically designed for non-ABS models, this brake line kit provides a significant improvement over stock lines.

Description

This brake line kit features a superior two-piece design, combining a direct-fit lower assembly with alternative length upper lines to accommodate various handlebar configurations. The all-brazed manifold construction eliminates common issues like leaks and alignment problems, while providing a clean, streamlined appearance without unattractive threaded connections. The inner PTFE tubing, reinforced with aramid braiding, minimizes line expansion, ensuring consistent and reliable braking performance under pressure. With AN-3 connections for easy installation, this kit is made in the U.S.A. to the highest quality standards. The 63.5 cm (25") length provides optimal routing and fitment for your motorcycle's front braking system. Enhance your ride with the stopping power and custom look of Magnum Shielding.

Features & highlights

• Superior two-piece design offers a direct fit and accommodates custom handlebar setups.
• Brazed manifold construction eliminates leaks and alignment issues for enhanced reliability.
• PTFE inner tubing with aramid braiding minimizes line expansion for consistent braking.
• AN-3 connections ensure easy and secure installation.
• Made in the U.S.A. for superior quality and craftsmanship.
• Designed for non-ABS models, ensuring optimal performance and compatibility.

Technical specifications

• Brand: Magnum Shielding
• Product Name: Brake Line
• Type: Standard
• Color/Finish: Chrome, Sterling Chromite® II
• Material: Stainless Steel
• For Braking System: without ABS
• Mounting Position: Front, Upper
• Length: 63.5 cm (25")
• Master Cylinder Banjo: 10 mm 90° Banjo Fitting

Important to know

• Requires: One upper and one lower kit for non-ABS models; two kits per bike.
• Alternative fitments: Upper line length and banjo angle may need adjustment based on specific routing and handlebar changes. Measurement from the top of the lower triple tree to the master cylinder determines the upper line length.
