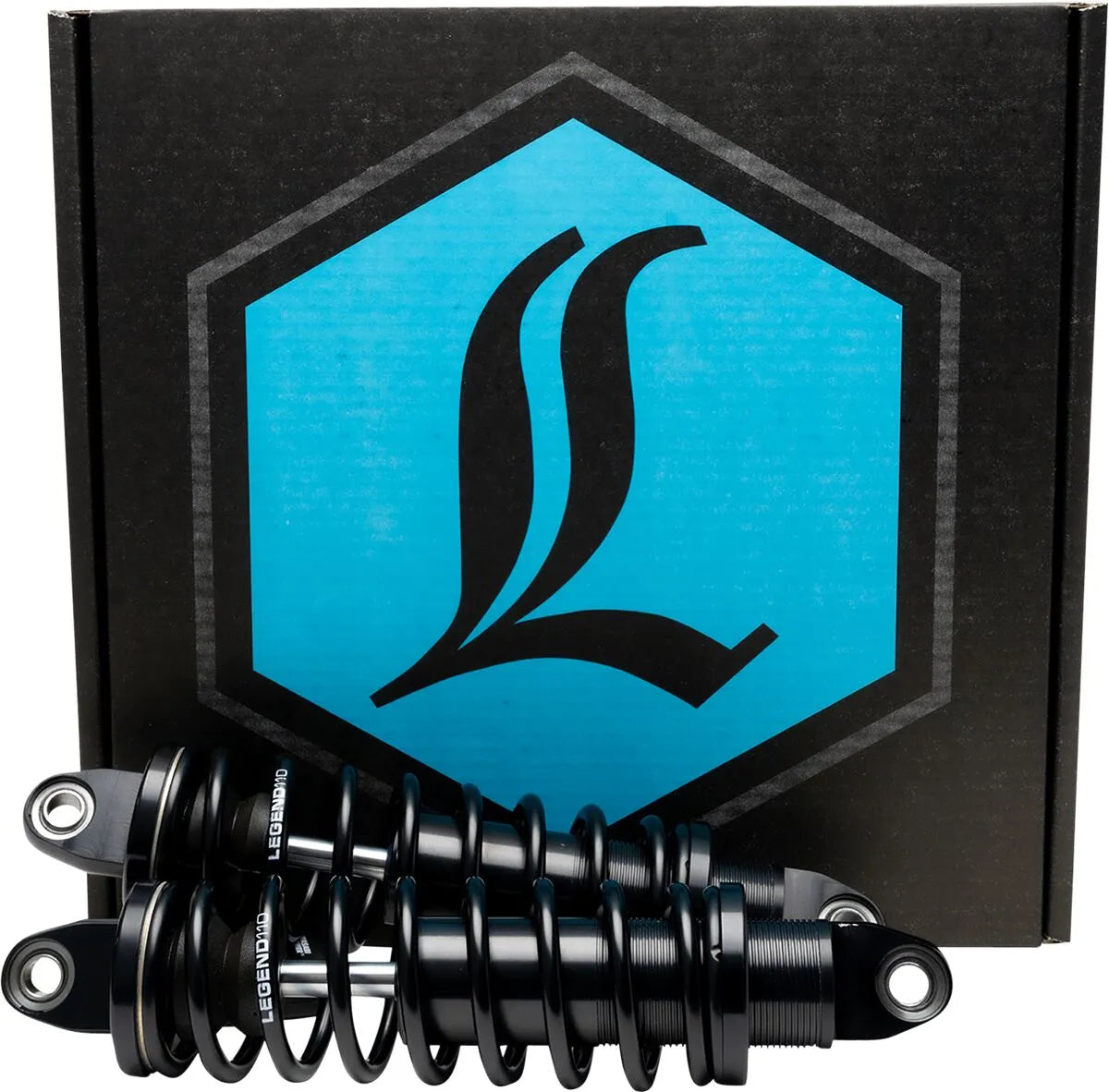

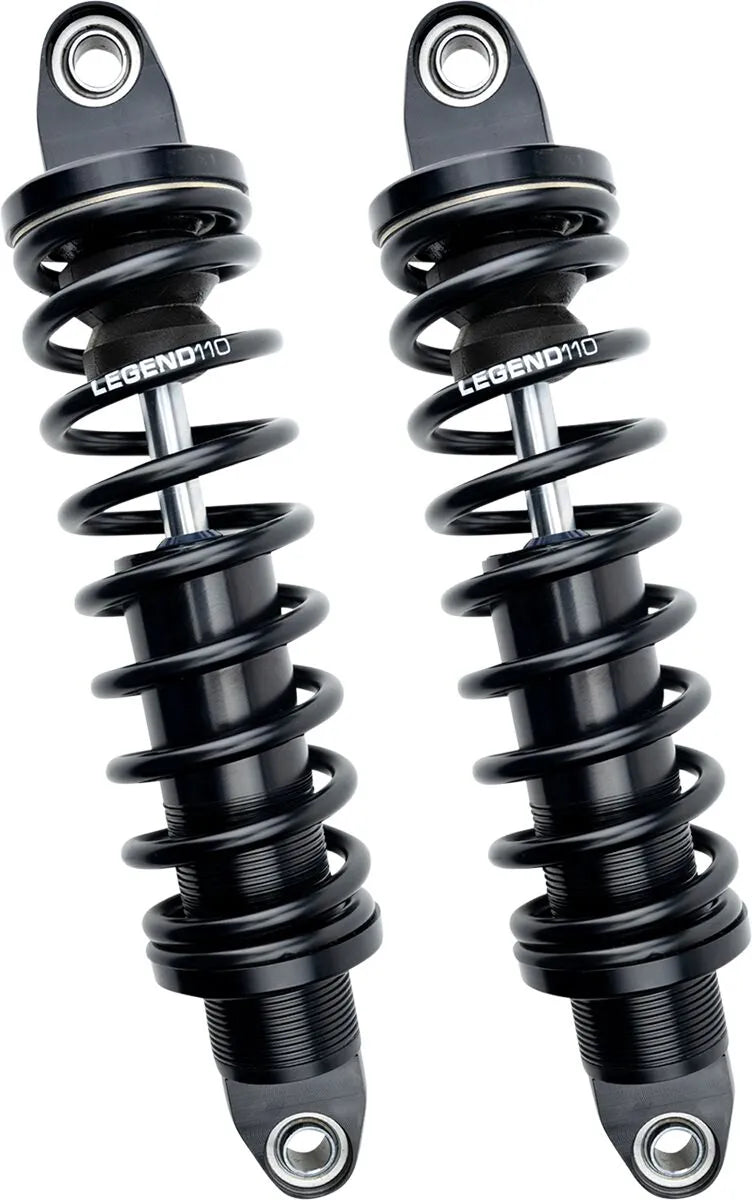

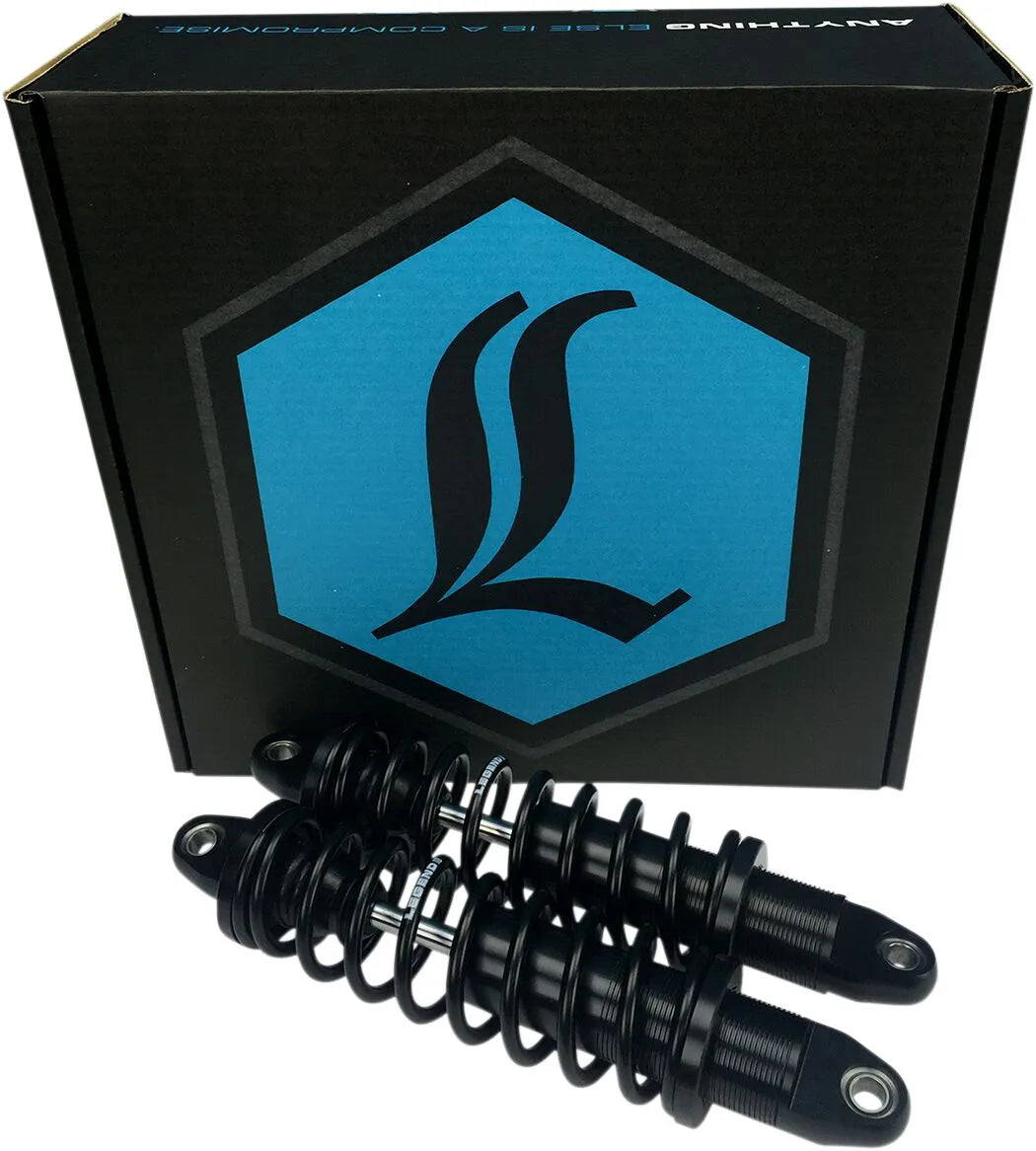

Legend Suspension Revo Coil Suspension For Fxr Models

Upgrade your FXR model's ride quality with the Legend Suspension Revo Coil Suspension. These shocks are engineered to provide superior comfort, enhanced performance, and increased bottoming resistance for all-day riding enjoyment. The Type III hard coat anodized black finish ensures durability and a sleek look.

Description

The Legend Revo coil suspension features touring-specific coil spring rates optimized for comfort and performance. The hand-adjustable preload allows for easy customization without tools. With lengths available in 12", 13", and 14" and standard or heavy-duty options, you can tailor the suspension to your specific needs. Spherical bearings on both top and bottom mounting points ensure easy installation and precise alignment. A high-flow piston reacts quickly to changing road conditions, improving fluid flow management. Deflective disc valving self-adjusts to frequency, delivering controlled performance while a low-friction sealing system and sliding bearings enhance overall feel. These shocks are proudly made by hand in Sturgis, SD USA and backed by a lifetime warranty.

Features & highlights

• Experience superior ride comfort and enhanced performance with touring-specific coil spring rates.
• Easily adjust preload by hand, eliminating the need for tools.
• Enjoy easy installation and alignment thanks to spherical bearings on mounting points.
• Benefit from improved fluid flow management with the high-flow piston.
• Ensure controlled performance with deflective disc valving that self-adjusts to frequency.
• Low friction sealing system and sliding bearings deliver improved performance and feel.
• Covered by a lifetime warranty for peace of mind.

Technical specifications

• Brand: Legend Suspension
• Part Number: 1310-1101
• Adjustment Type: Adjustable Preload
• Color/Finish: Black, Anodized
• Duty: Standard
• Extended Length: 13.00" (330.00 mm)
• Material: Aluminum
• Mounting Position: Rear
• Product Type: Shock Absorber
• Reservoir Location: Internal
• Type: Coilover Twin-Tube
• Units: Pair

Important to know

This product is specifically designed for FXR models.
