Legend Suspension Revo Arc Piggyback Coil Suspension For Xl Models
Available in stock (9)
-
Estimated delivery: Feb 06 - Feb 10
About this product
About this product
Upgrade your Harley-Davidson XL model's ride quality and performance with the Legend Suspension Revo Arc Piggyback Coil Suspension. These shocks are designed to provide superior comfort, improved handling, and increased resistance to bottoming, ensuring all-day riding comfort.
Description

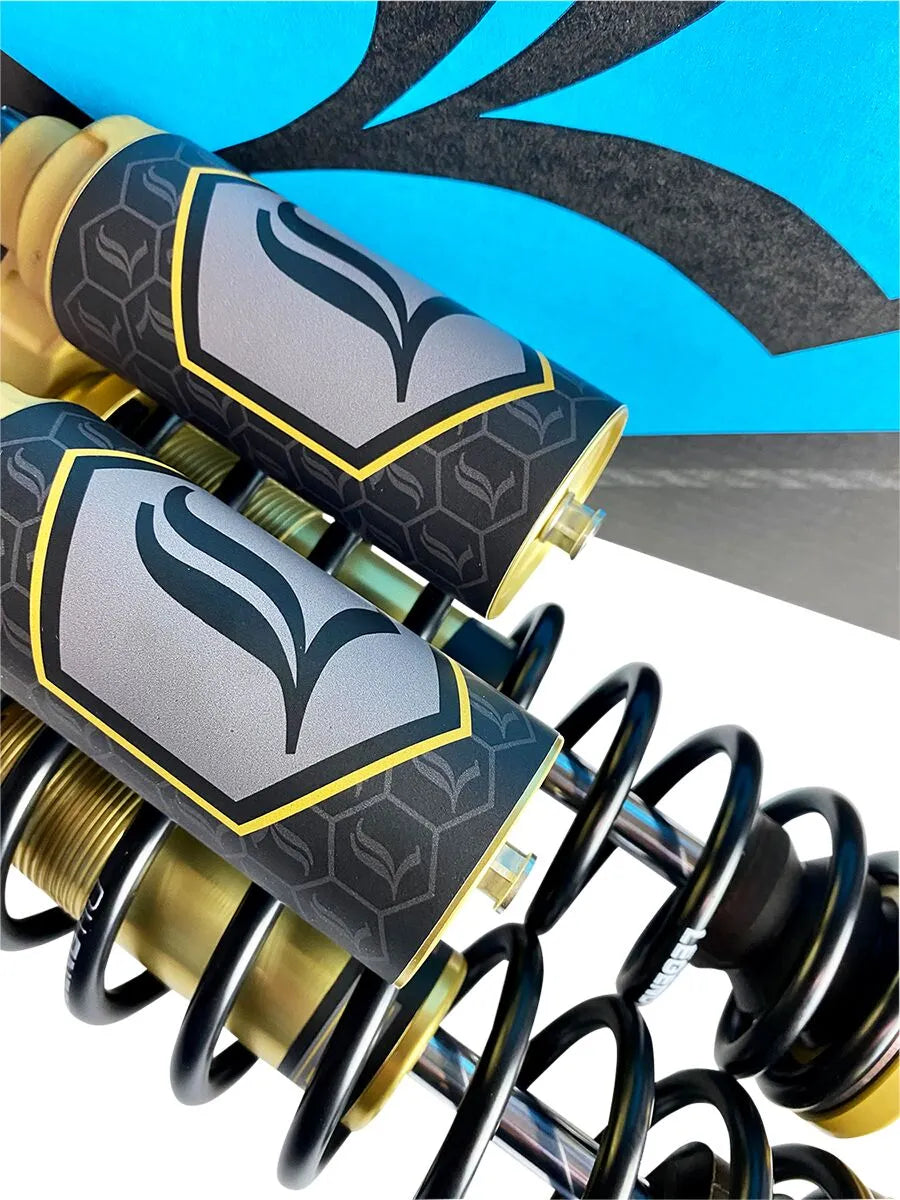

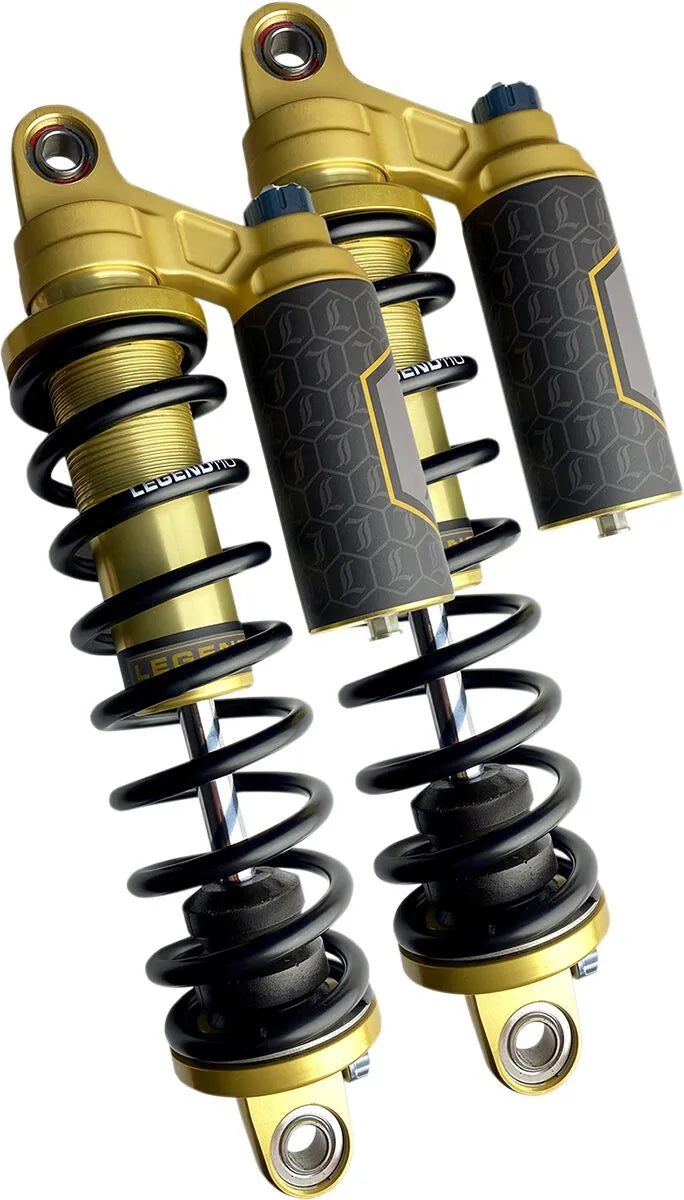

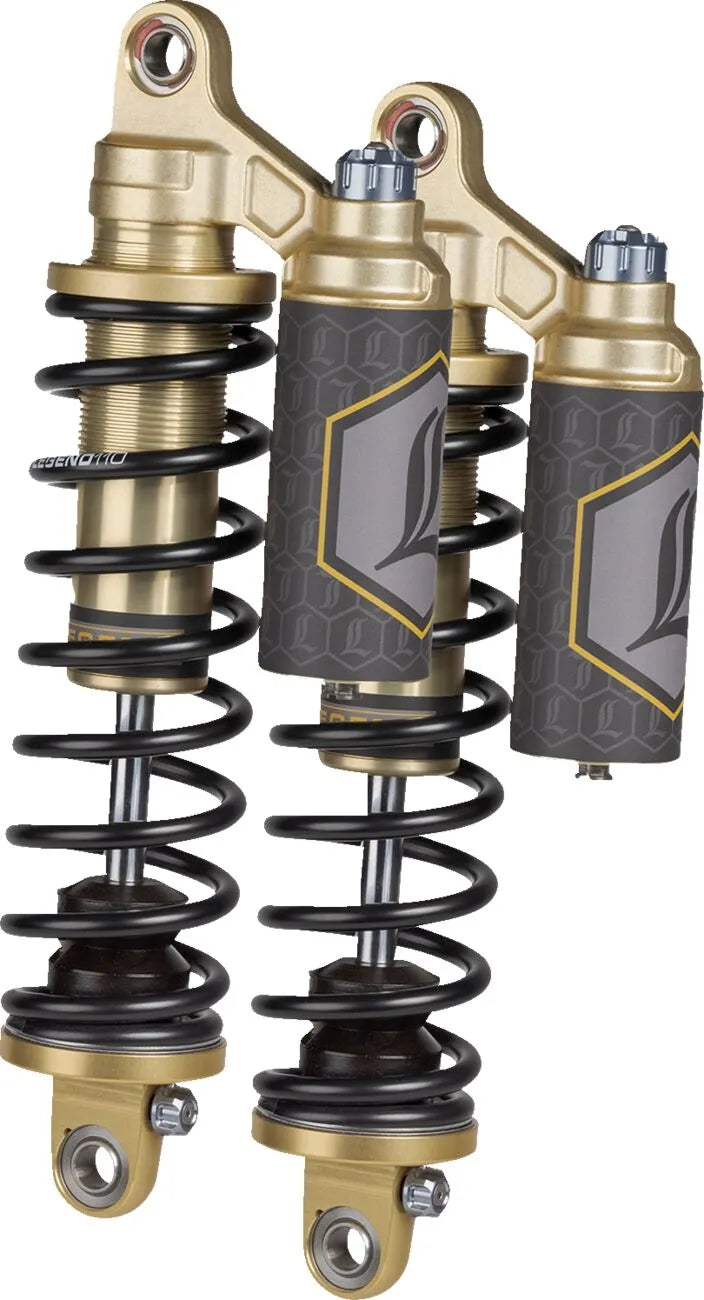

The Legend Suspension Revo Arc shocks feature a 35 mm monotube construction and deflective disc valve stacks for exceptional damping control. The balanced/matched piston and base-valve design, coupled with a low-friction sealing system, enhances performance and feel. Independent compression and rebound damping adjusters allow for fast, precise, and repeatable changes to ride comfort. The nitrogen gas bladder design enables ultra-fast response and stiction-free movement. Whether you're a light or heavy rider, or prefer aggressive or casual riding styles, these shocks can be fine-tuned to your desired quality and personal preference. Available in both 13" and 14" lengths and standard or heavy-duty applications, installation and alignment are simplified with spherical bearings on both top and bottom mounting points.
Features & highlights
- Available in Black, Gold, and Clear Type III hard coat anodize for exceptional durability.
- Touring-specific coil spring rates provide superior ride comfort and improved performance.
- Hand-adjustable without tools for quick and easy ride tuning.
- Spherical bearings on mounting points ensure easy installation and alignment.
- Independent compression and rebound damping adjusters for personalized ride control.
- Nitrogen gas bladder design delivers ultra-fast response and smooth movement.
- Handmade in Sturgis, SD USA.
Technical specifications
- Brand: Legend Suspension
- Part Number: 1310-1918
- Color/Finish: Gold
- Duty: Standard
- Extended Length: 13.00" (330.20 mm)
- Mounting Position: Rear
- Product Type: Shock Absorbers
- Reservoir Location: Piggyback
- Units: Pair
- Construction: 35 mm Monotube
Important to know
These shocks are designed specifically for Harley-Davidson XL models. Ensure compatibility before purchase.
