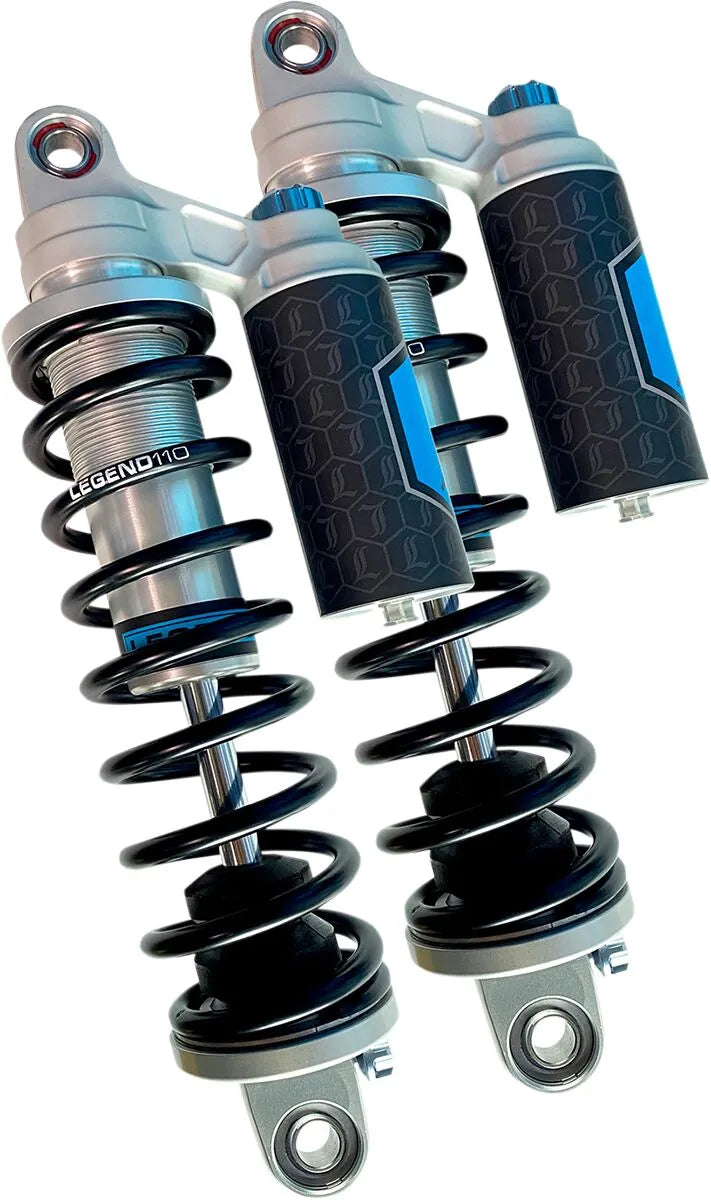

Legend Suspension Revo Arc Piggyback Coil Suspension For Fxd

Upgrade your FXD model with the Legend Suspension Revo Arc Piggyback Coil Suspension, designed for superior ride comfort and enhanced performance. These shocks offer improved resistance to bottoming, ensuring all-day comfort on long rides. The Legend Suspension system allows you to fine-tune your ride to match your weight and riding style, providing optimal rebound and compression performance.

Description

The Legend Revo Arc Piggyback Coil Suspension transforms your motorcycle's handling and comfort. Featuring a 35 mm monotube construction and deflective disc valve stacks, these shocks deliver balanced and matched piston and base-valve design specific for motorcycle applications. The low friction sealing system and sliding bearings improve performance and feel. Independent compression and rebound damping adjusters allow for quick, precise, and repeatable changes to ride comfort with a simple turn of a knob. Built with a nitrogen gas bladder for ultra-fast response and stiction-free movement. Easy installation and alignment are ensured by spherical bearings on both top and bottom mounting points. Available in clear Type III hard coat anodize for durability and style. Experience the difference of hand-made quality from Sturgis, SD USA.

Features & highlights

• Enjoy superior ride comfort and improved performance with Legend's touring-specific coil spring rates.
• Easily adjust your suspension by hand; no tools needed.
• Benefit from easy installation and precise alignment thanks to spherical bearings on both mounting points.
• Fine-tune your ride with independent compression and rebound damping adjusters.
• Experience ultra-fast response and stiction-free movement with the nitrogen gas bladder design.
• Customize your ride, from light to heavy riders, and aggressive to casual styles.
• Proudly made by hand in Sturgis, SD USA.

Technical specifications

• Brand: Legend Suspension
• Part Number: 1310-1940
• Color/Finish: Clear Type III Hard Coat Anodize
• Duty: Standard
• Extended Length: 14.00" (356.00 mm)
• Mounting Position: Rear
• Product Name: Shock Absorber
• Reservoir Location: Piggyback
• Units: Pair

Important to know

Ensure proper fitment for your specific FXD model. Professional installation is recommended to ensure optimal performance and safety.
