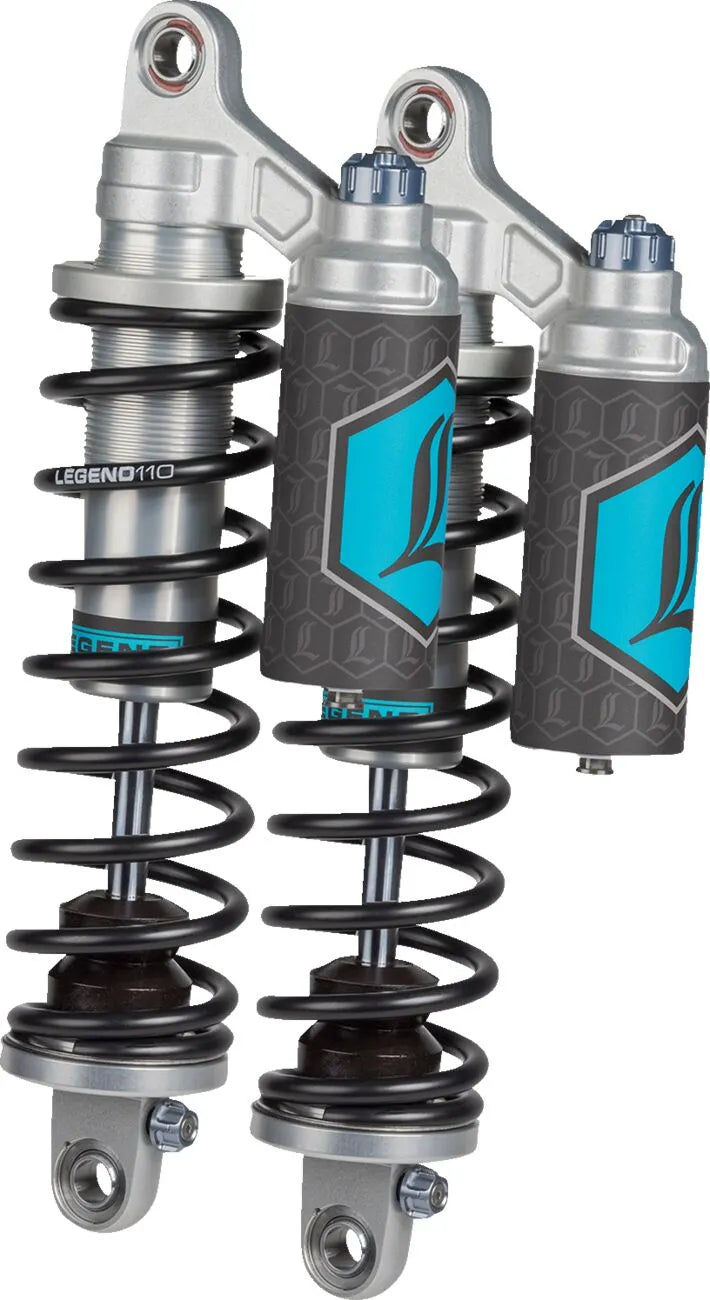

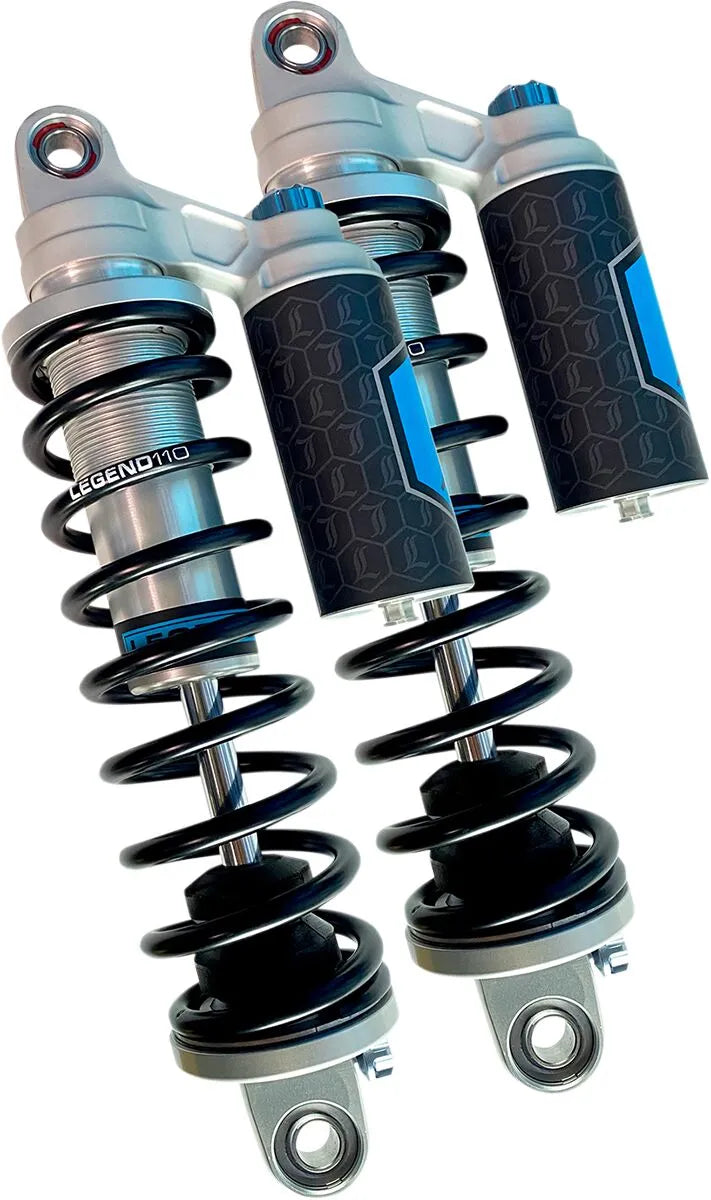

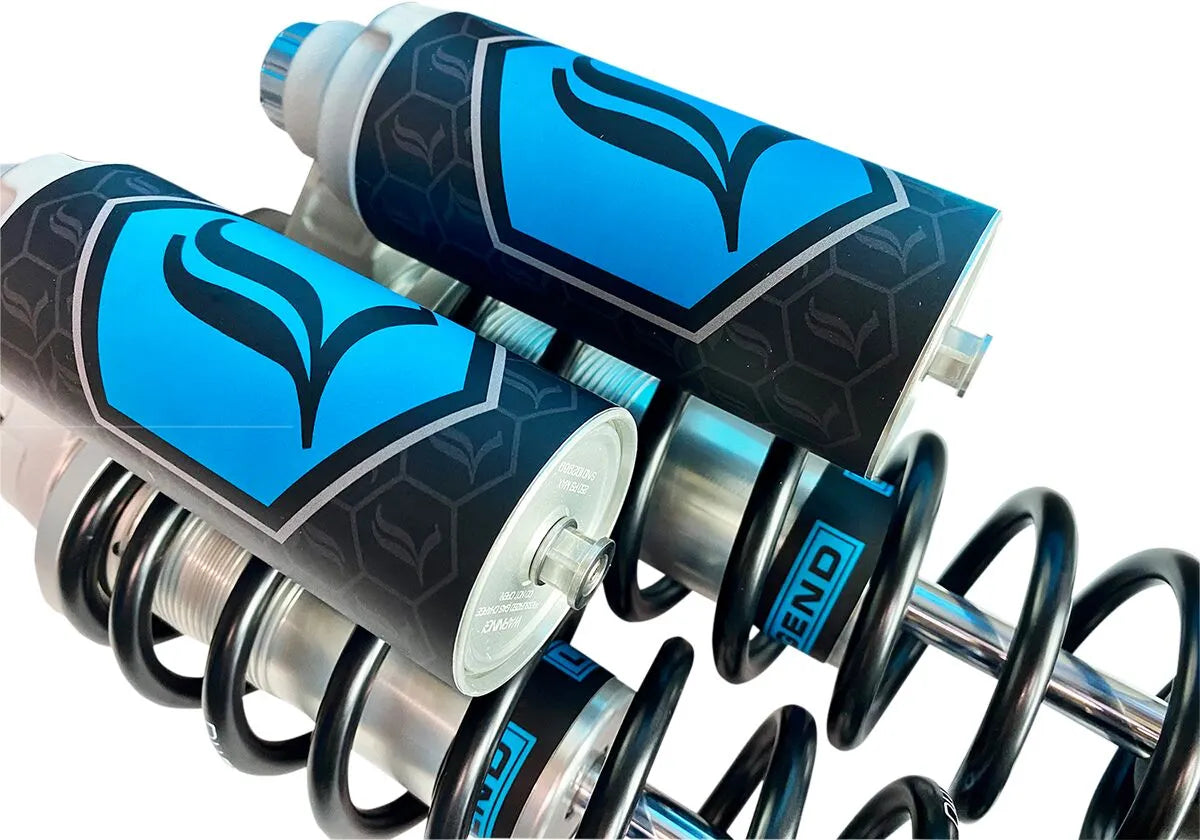

Legend Suspension Revo Arc Piggyback Coil Suspension For Fxd

Upgrade your FXD model with the Legend Suspension Revo Arc Piggyback Coil Suspension. These shocks deliver superior ride comfort and enhanced performance, ensuring all-day riding pleasure. With easy, tool-free adjustments, you can quickly adapt to varying rider weights and riding styles. Crafted by hand in Sturgis, SD USA, these shocks guarantee top-tier quality and durability.

Description

These Legend Suspension Revo Arc shocks utilize touring-specific coil spring rates to provide exceptional ride comfort, improved handling, and increased resistance to bottoming out. The 35 mm monotube construction, combined with deflective disc valve stacks and a balanced piston/base-valve design, ensures optimal rebound and compression performance. The independent compression and rebound damping adjusters allow for fast, precise, and repeatable changes to ride comfort. Whether you're a light or heavy rider with an aggressive or casual riding style, these shocks can be fine-tuned to your personal preferences. Spherical bearings on both top and bottom mounting points ensure easy installation and alignment. The nitrogen gas bladder design delivers ultra-fast response and stiction-free movement, maximizing performance and feel.

Features & highlights

• Provides superior ride comfort and improved performance.
• Adjustable by hand; no tools needed for fine-tuning.
• Features independent compression and rebound damping adjusters.
• Nitrogen gas bladder design allows ultra-fast response and stiction-free movement.
• Easy installation and alignment via spherical bearings on mounting points.
• 35 mm monotube construction ensures durability.
• Made in Sturgis, SD USA.

Technical specifications

• Brand: Legend Suspension
• Color/Finish: Clear Type III hard coat anodize
• Duty: Heavy Duty
• Extended Length: 13.00" (330.20 mm)
• Mounting Position: Rear
• Reservoir Location: Piggyback
• Construction: 35 mm Monotube
• Adjustability: Compression and Rebound Damping

Important to know

• Designed for FXD models.
• Sold as a pair.
