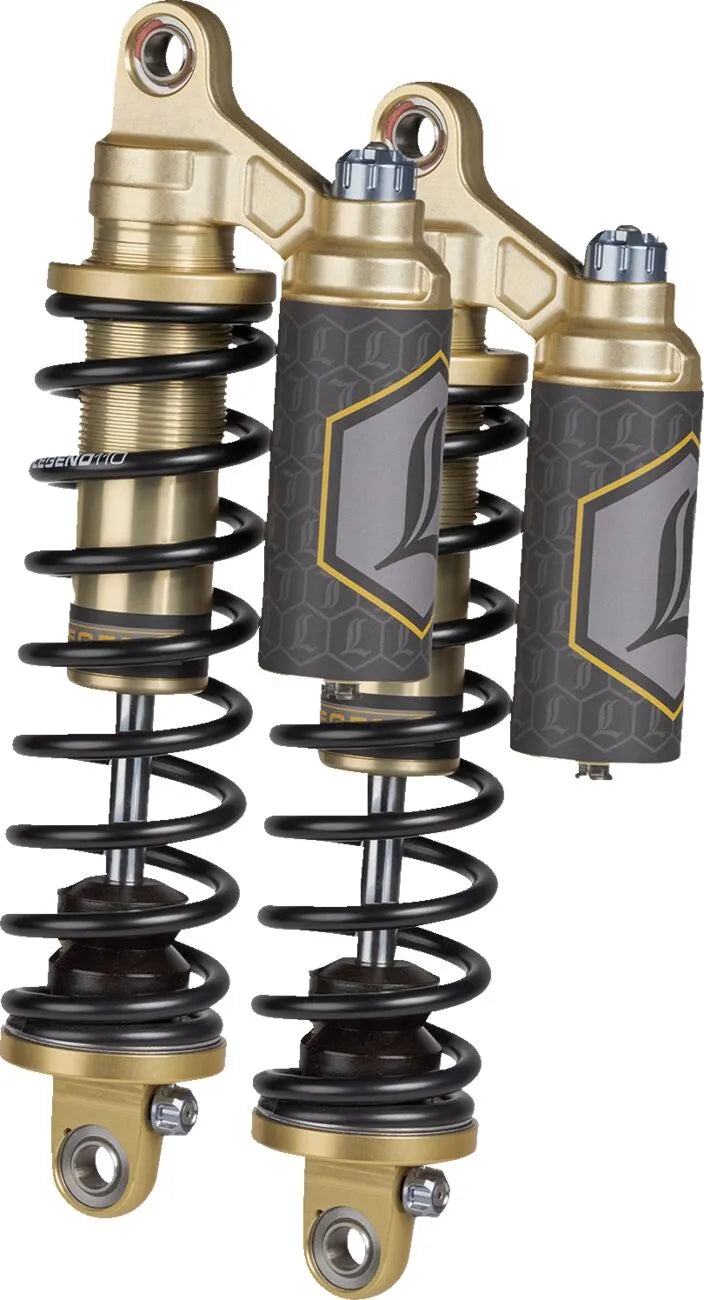

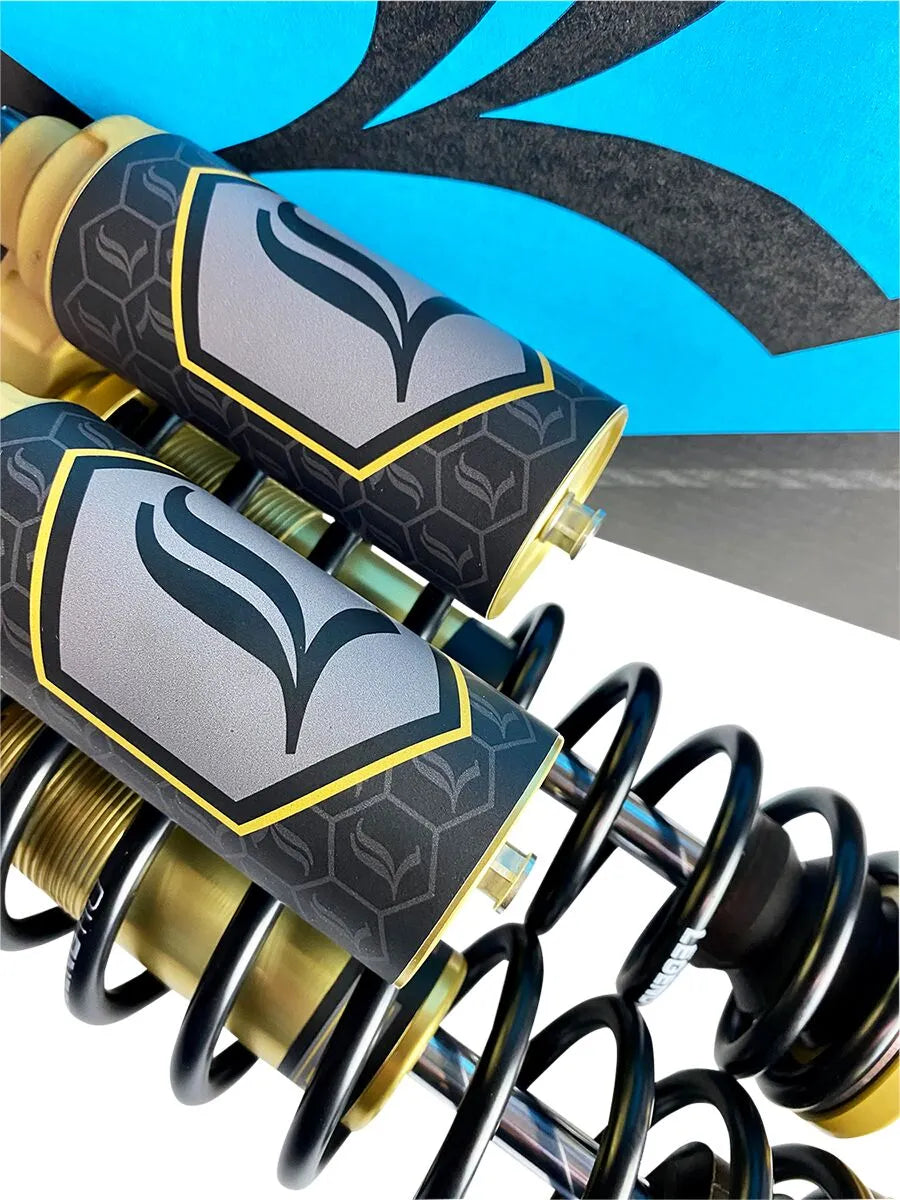

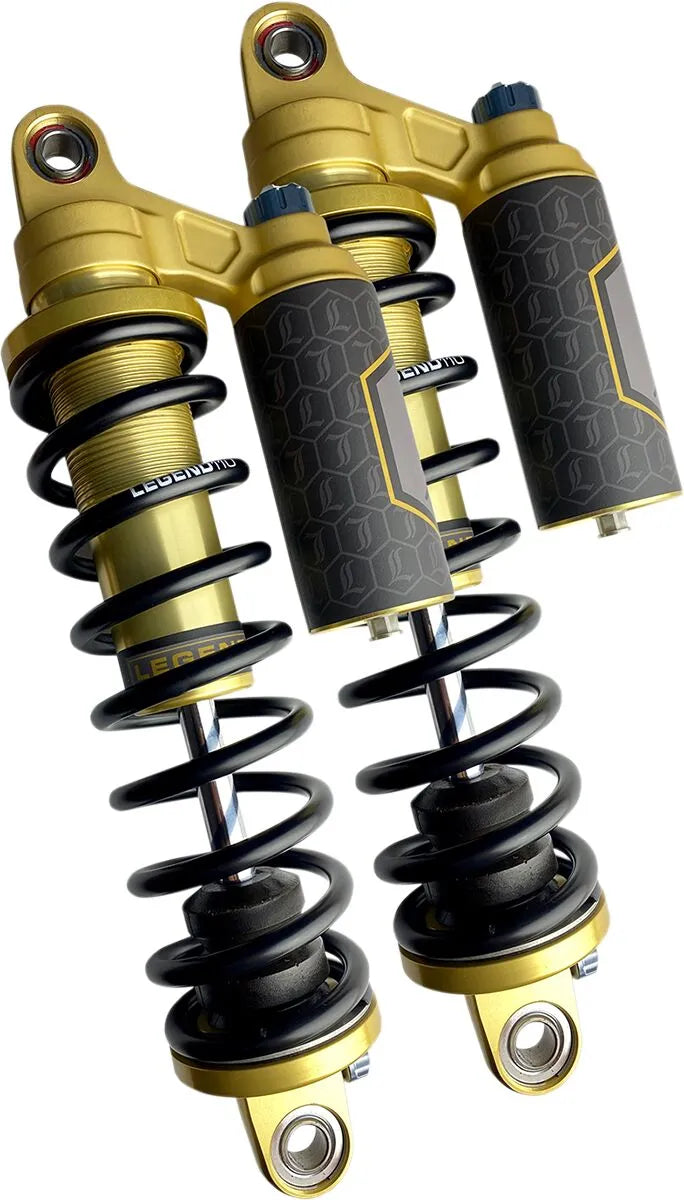

Legend Suspension Revo Arc Piggyback Coil Suspension For Fxd

Experience superior ride comfort and enhanced performance with the Legend Suspension Revo Arc Piggyback Coil Suspension. Designed specifically for FXD models, this suspension system delivers all-day comfort and improved resistance to bottoming. The Revo Arc suspension allows for easy, hand-adjustable tuning, ensuring a personalized riding experience without the need for tools.

Description

The Legend Suspension Revo Arc Piggyback Coil Suspension transforms your motorcycle's handling and comfort. Featuring a 35 mm monotube construction and deflective disc valve stacks, this system provides exceptional control and responsiveness. The balanced/matched piston and base-valve design, specific for motorcycle applications, ensures optimal performance for any rider weight or riding style. The independent compression and rebound damping adjusters allow for fast, precise, and repeatable changes to ride comfort with a simple turn of a knob. The nitrogen gas bladder design allows ultra-fast response and stiction-free movement. Spherical bearings on both top and bottom mounting points ensure easy installation and alignment. Available in a striking gold finish.

Features & highlights

• Enjoy superior ride comfort and improved performance with Legend's touring-specific coil spring rates.
• Easily adjust the suspension by hand; no tools are required for tuning.
• Benefit from easy installation and alignment, thanks to spherical bearings on both top and bottom mounting points.
• Experience optimal rebound and compression performance, tailored to your weight and riding style.
• Fine-tune your ride preference, whether you're a light or heavy rider.
• Adapt to aggressive or casual riding styles with adjustable quality and preference settings.
• Finished with a durable gold Type III hard coat anodize.

Technical specifications

• Brand: Legend Suspension
• Product Name: Shock Absorber
• Mounting Position: Rear
• Reservoir Location: Piggyback
• Color/Finish: Gold
• Extended Length: 14.00" (356.00 mm)
• Duty: Heavy Duty

Important to know

This product includes a pair of shock absorbers.
