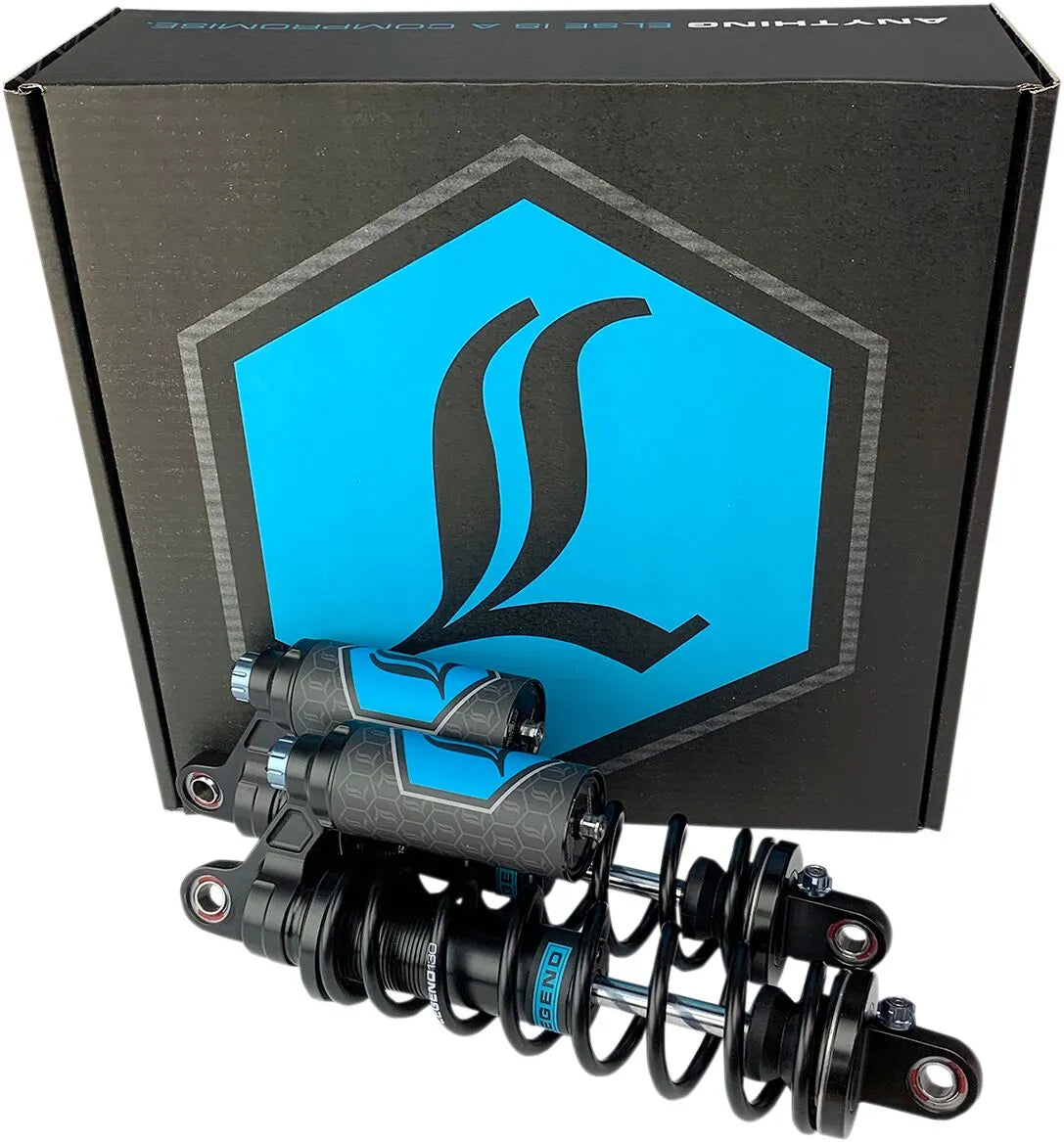

Legend Suspension Revo Arc Piggyback Coil Suspension For Fxd

Upgrade your FXD model with the Legend Suspension Revo Arc Piggyback Coil Suspension. This high-performance suspension system delivers superior ride comfort, improved handling, and increased resistance to bottoming, ensuring all-day riding pleasure. Available in black, gold, and clear Type III hard coat anodize finishes.

Description

The Legend Revo Arc shocks feature a 35 mm monotube construction and deflective disc valve stacks, offering precise and consistent damping. The balanced/matched piston and base-valve design is specifically engineered for motorcycle applications, providing optimal rebound and compression performance tailored to your rider weight and style. With independent compression and rebound damping adjusters, you can easily fine-tune your ride with a simple turn of a knob, making fast, precise, and repeatable adjustments to ride comfort and performance. The nitrogen gas bladder design ensures ultra-fast response and stiction-free movement, allowing both light and heavy riders, as well as aggressive and casual riding styles, to dial in their desired ride quality. Spherical bearings on both top and bottom mounting points provide easy installation and precise alignment.

Features & highlights

• Enjoy superior ride comfort, improved performance, and bottoming resistance with Legend's touring-specific coil spring rates.
• Easily adjust your suspension by hand – no tools required.
• Experience easy installation and alignment thanks to spherical bearings on top and bottom mounting points.
• Quickly fine-tune your ride quality with independent compression and rebound damping adjusters.
• Nitrogen gas bladder design allows for ultra-fast response and smooth movement.
• Fine-tune for light to heavy riders and aggressive to casual riding styles.
• Proudly made by hand in Sturgis, SD USA.

Technical specifications

• Brand: Legend Suspension
• Extended Length: 356.00 mm (14.00")
• Mounting Position: Rear
• Reservoir Location: Piggyback
• Duty: Heavy Duty
• Color/Finish: Black
• Units: Pair

Important to know

Ensure proper fitment for your specific FXD model before installation. Professional installation is recommended.
