Legend Suspension Revo Arc Piggyback Coil Suspension For Fxd

Experience superior ride comfort and enhanced performance with the Legend Suspension Revo Arc Piggyback Coil Suspension for FXD models. These shocks are meticulously engineered to provide all-day comfort and improved handling, making them ideal for both casual and aggressive riding styles. The gold Type III hard coat anodize finish not only looks great but also adds to the durability of these high-performance shocks.

Description

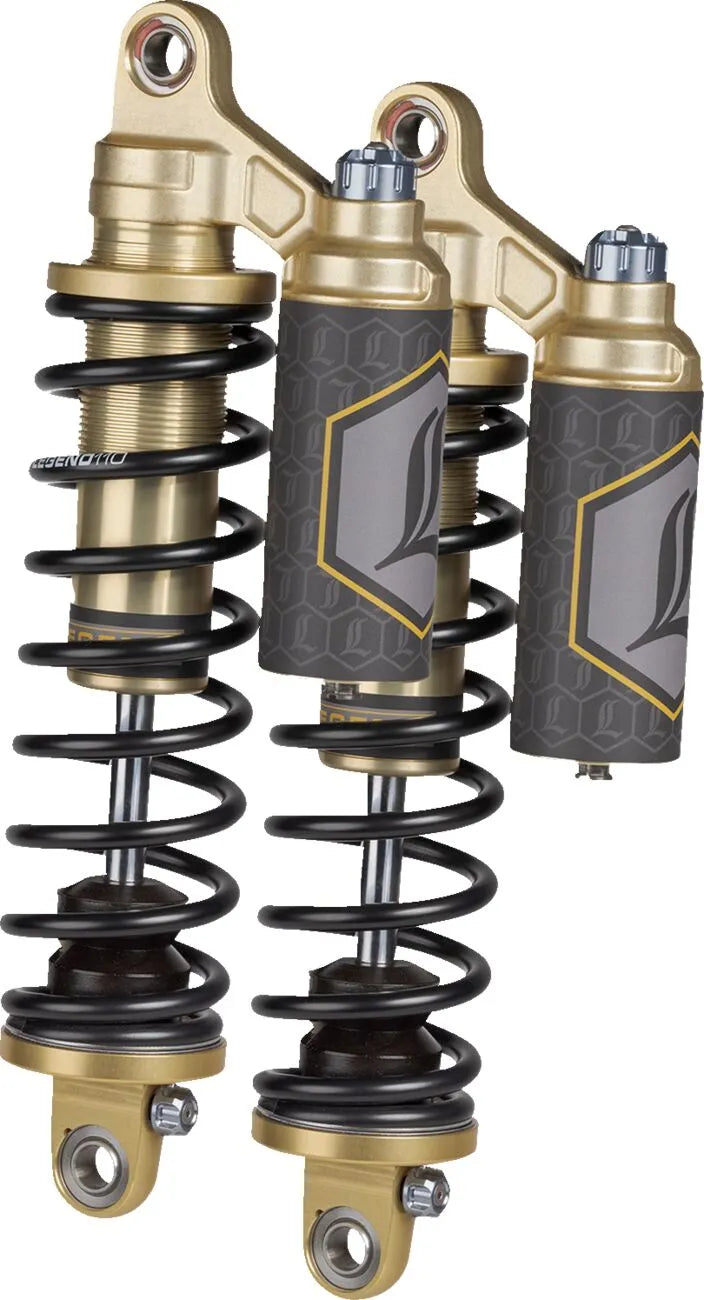

The Legend Suspension Revo Arc shocks feature a 35 mm monotube construction and deflective disc valve stacks, ensuring consistent and reliable damping. The balanced/matched piston and base-valve design is specifically tailored for motorcycle applications, offering optimal rebound and compression performance. The low-friction sealing system and sliding bearings contribute to improved performance and feel, while the nitrogen gas bladder design allows for ultra-fast response and stiction-free movement. With independent compression and rebound damping adjusters, you can easily fine-tune your ride quality to match your weight, riding preference, or style. These shocks are available in a standard duty configuration and are designed for easy installation and alignment with spherical bearings on both top and bottom mounting points. These piggyback shocks are available in a 13" length.

Features & highlights

• Enjoy superior ride comfort and improved performance with Legend's touring-specific coil spring rates.
• Fine-tune your ride with independent compression and rebound damping adjusters; no tools needed.
• Benefit from easy installation and alignment thanks to spherical bearings on both mounting points.
• Experience consistent damping and reliable performance with 35 mm monotube construction.
• Adjust your ride with a nitrogen gas bladder design for ultra-fast response and stiction-free movement.
• Finished with a gold Type III hard coat anodize for enhanced durability and a premium look.
• Handcrafted in Sturgis, SD USA.

Technical specifications

• Brand: Legend Suspension
• Part Number: 1310-1914
• Color/Finish: Gold
• Duty: Standard
• Extended Length: 13.00" (330.20 mm)
• Mounting Position: Rear
• Product Type: Shock Absorber
• Reservoir Location: Piggyback
• Units: Pair

Important to know

These shocks are designed for specific FXD models. Please ensure compatibility before purchase.
