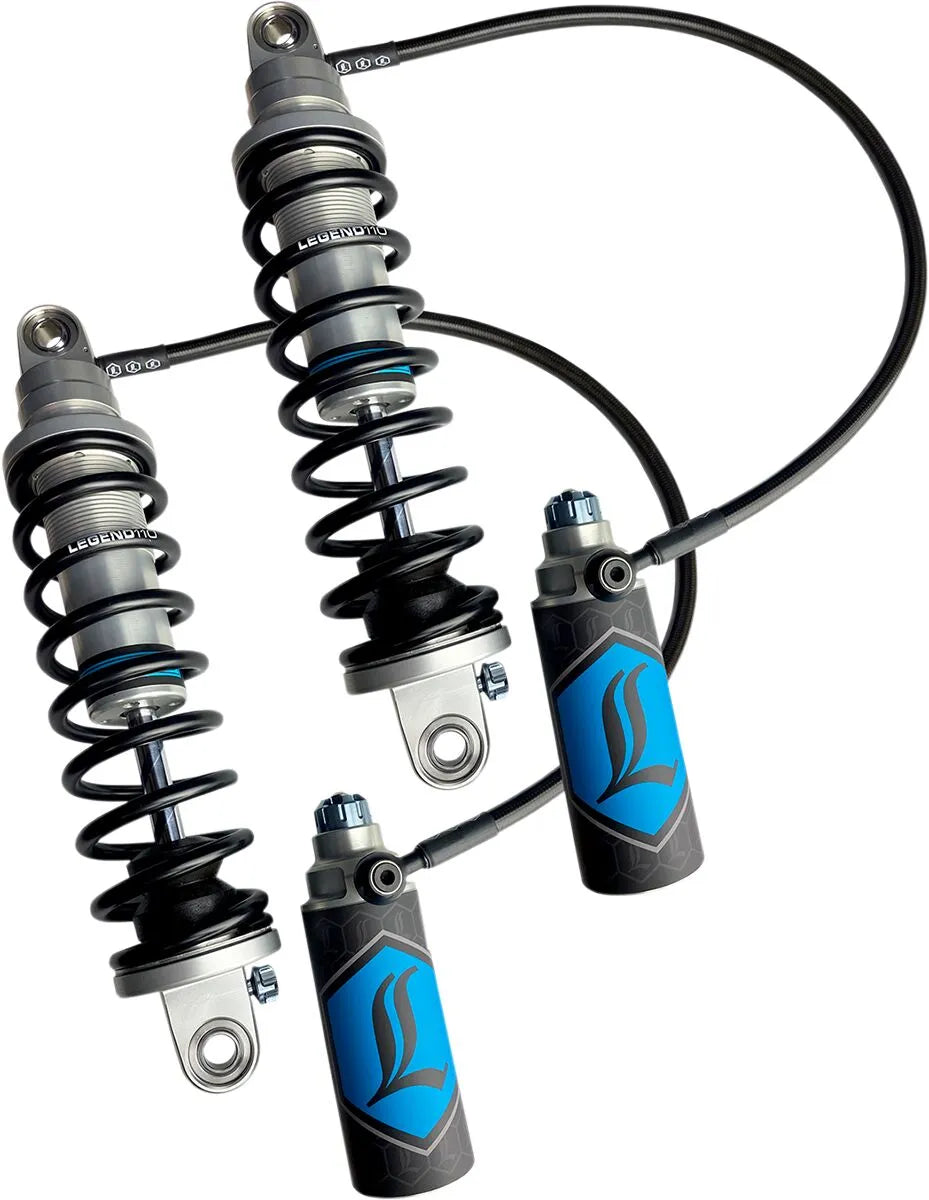

Legend Suspension Revo Arc Coil Suspension For Touring Models

Experience superior ride quality and performance with the Legend Suspension Revo Arc Remote Reservoir Coil Suspension. Designed specifically for touring models, this suspension system offers unparalleled comfort, improved handling, and increased resistance to bottoming, ensuring a smooth and enjoyable ride all day long. The Revo Arc suspension is meticulously crafted to provide the ultimate riding experience.

Description

The Legend Suspension Revo Arc system features independent compression and rebound damping adjusters, allowing for fast, precise, and repeatable changes to ride comfort and performance with a simple turn of a knob. This enables riders to fine-tune their ride preference based on weight, riding style, or personal preference, accommodating everything from light to heavy riders and aggressive to casual riding styles. The nitrogen gas bladder design ensures ultra-fast response and stiction-free movement, while the balanced/matched piston and base-valve design, specific for motorcycle applications, optimizes rebound and compression performance. The 35 mm monotube construction, combined with deflective disc valve stacks, and a low friction sealing system and sliding bearings, enhances overall performance and feel. Spherical bearings on both top and bottom mounting points ensure easy installation and alignment. The Revo Arc suspension is available in 13" and 14" lengths to suit various touring models.

Features & highlights

• Enjoy superior ride comfort and improved performance with Legend's touring-specific coil spring rates.
• Easily adjust settings by hand; no tools are required for fine-tuning your ride.
• Benefit from easy installation and alignment thanks to spherical bearings on top and bottom mounting points.
• Experience precise handling and responsiveness with the nitrogen gas bladder design.
• Fine-tune your ride with independent compression and rebound damping adjusters.
• Durable Type III hard coat anodize finish provides long-lasting protection and style.
• Handmade in Sturgis, SD USA, ensuring top-quality craftsmanship.

Technical specifications

• Brand: Legend Suspension
• Product Name: Shock Absorber
• Vendor Part Number: 1310-1928
• Mounting Position: Rear
• Reservoir Location: Remote
• Construction: 35 mm monotube
• Extended Length: 14.00" (356.00 mm)
• Duty: Standard
• Finish: Clear Type III hard coat anodize
• Units: Pair

Important to know

• Available in 13" and 14" lengths.
• Also available in heavy-duty applications (sold separately).
