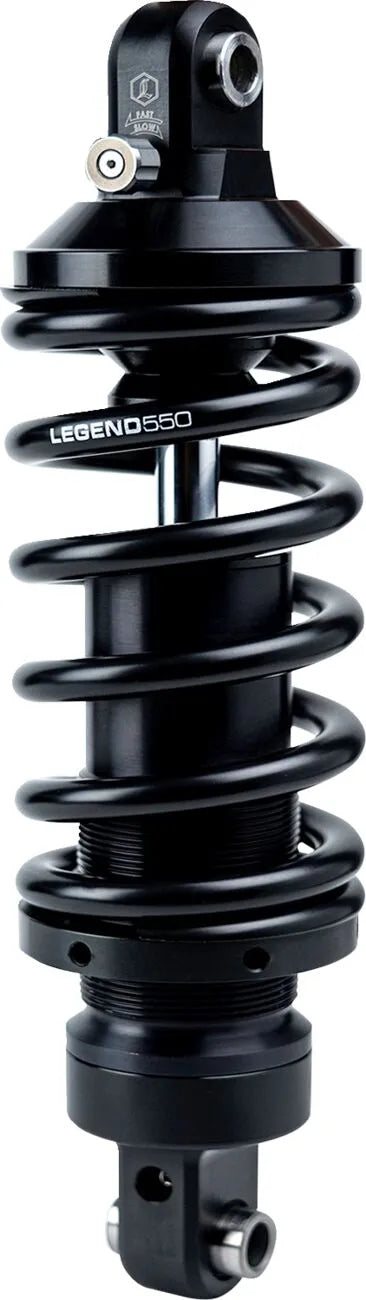

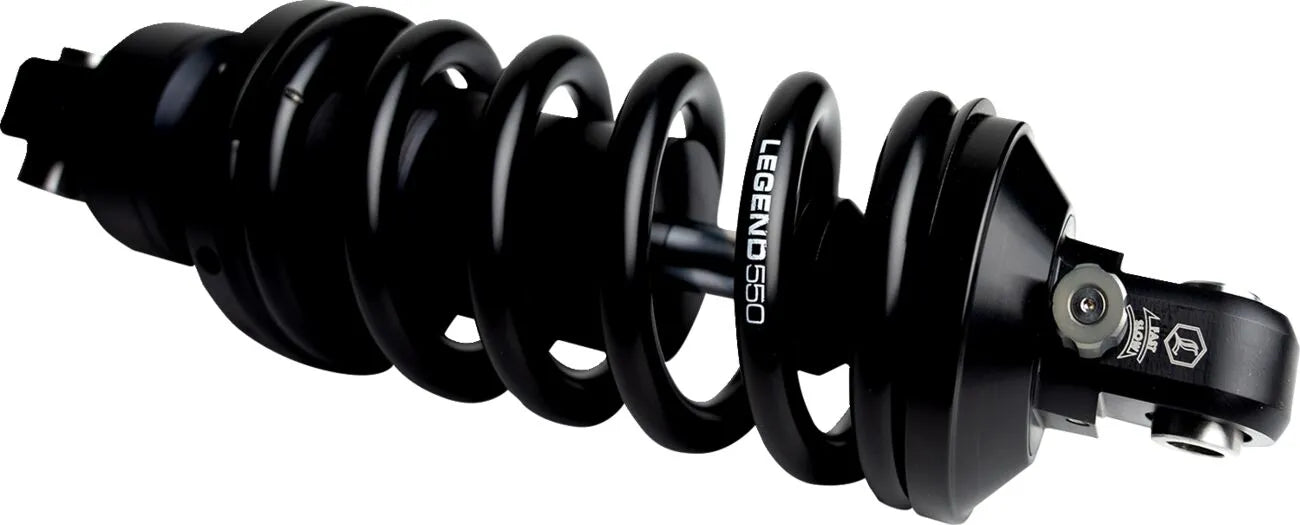

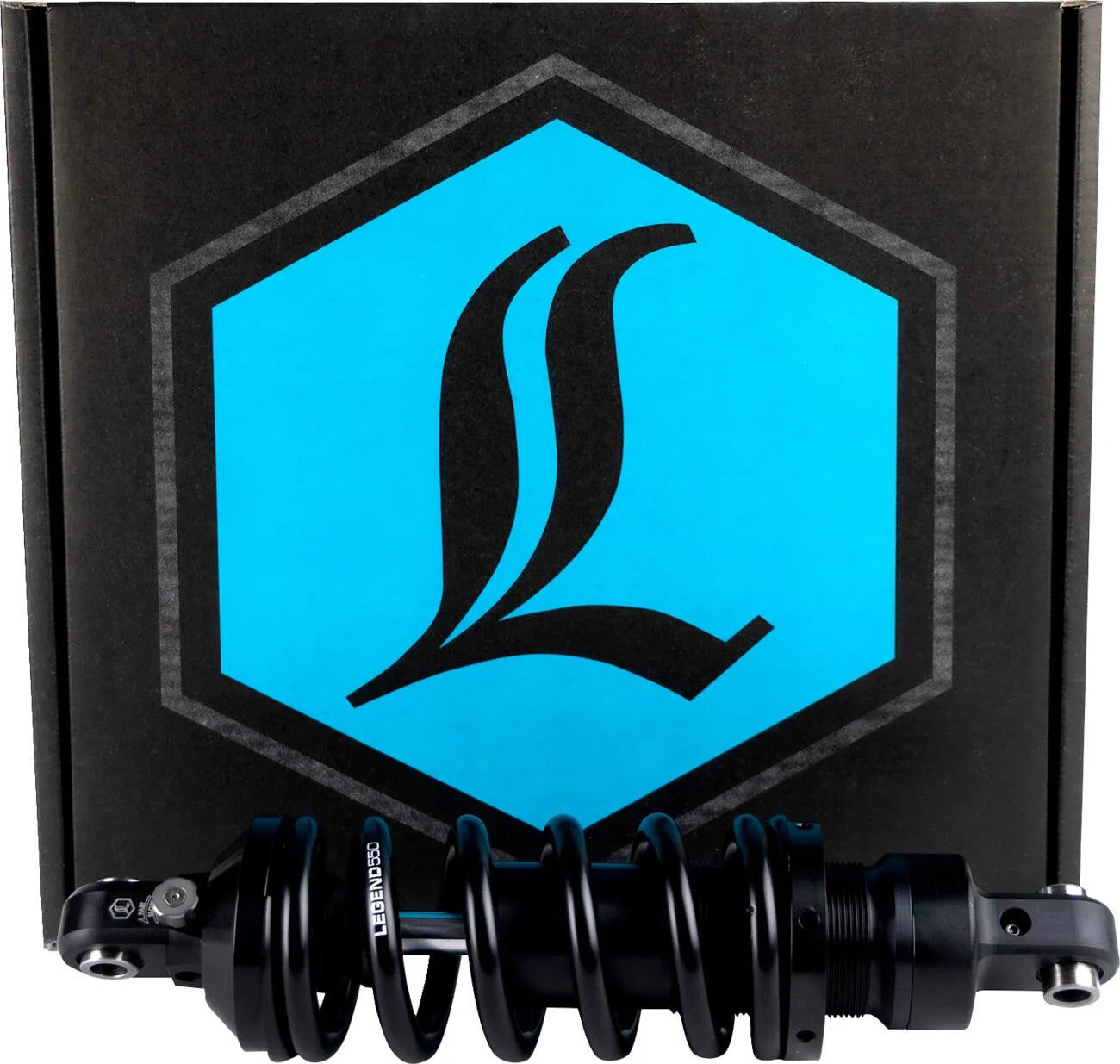

Legend Suspension Revo-a M-eight Softail Coil Suspension

Upgrade your M-Eight Softail's ride quality and handling with the Legend Suspension Revo-A adjustable coil suspension. This mono shock is designed to provide superior comfort, improved performance, and increased resistance to bottoming, ensuring all-day riding comfort. Hand-built in Sturgis, SD, USA, this shock absorber offers unmatched handling and bike control.

Description

The Legend Suspension Revo-A is engineered with a new coil design specifically for M-Eight Softail models. It features adjustable preload, allowing for easy rider setup and minimal adjustments when changing between rider weights and loads. Seven external knob adjustments provide fine-tuning of rebound, utilizing needle valve technology to adapt to your specific riding style. The hard-anodized, machined billet aluminum 46 mm mono tube incorporates a lightweight, high-flow piston design, enhancing fluid flow and overall performance. A hard chromed shaft, 14% larger for increased strength, combined with a high-quality chrome-silicon spring, ensures a consistent spring rate throughout the motorcycle's life. The internal floating nitrogen piston guarantees consistent damping performance, while deflective disc valving self-adjusts to frequency, ensuring controlled performance. Low friction sleeve bearings, both top and bottom, allow the shock to float in its mount, avoiding shock bind and simplifying installation. Finished in a durable Black Type III hard coat anodize, the Revo-A delivers both performance and style. Optimize your ride by pairing with the Legend Axeo front suspension.

Features & highlights

• Experience superior ride comfort and improved performance with the Revo-A coil spring design.
• Fine-tune rebound performance with seven external knob adjustments using advanced needle valve technology.
• Enjoy easy installation and smooth operation with low friction sleeve bearings.
• Benefit from enhanced handling and bike control thanks to the 46 mm mono tube and high-flow piston design.
• Achieve consistent damping performance with the internal floating nitrogen piston.
• Easily adjust preload for optimal setup based on rider weight and load.
• Durable construction with hard anodized billet aluminum and a hard chromed shaft for long-lasting performance.

Technical specifications

• Brand: Legend Suspension
• Product Name: Shock Absorber
• MPN: 1310-2316
• Type: Coilover Monotube
• Mounting Position: Rear
• Adjustment Type: Adjustable Rebound Damping
• Reservoir Location: Internal
• Material: Billet Aluminum
• Color/Finish: Black, Anodized
• Duty: Heavy Duty
• Extended Length: 13.50" (343.00 mm)
• Units: Each

Important to know

This is a mono shock; only one shock is included. Designed for M-Eight Softail models. Preload wrench is included for easy adjustments. Designed for optimum performance with the Legend Axeo front suspension.
