Legend Suspension Revo-a Adjustable Coil Suspension For Softail

Upgrade your M-Eight Softail's ride quality with the Legend Suspension REVO-A adjustable coil suspension. This mono shock is designed for superior comfort, performance, and handling, ensuring a smooth and controlled ride for enthusiasts and professionals alike.

Description

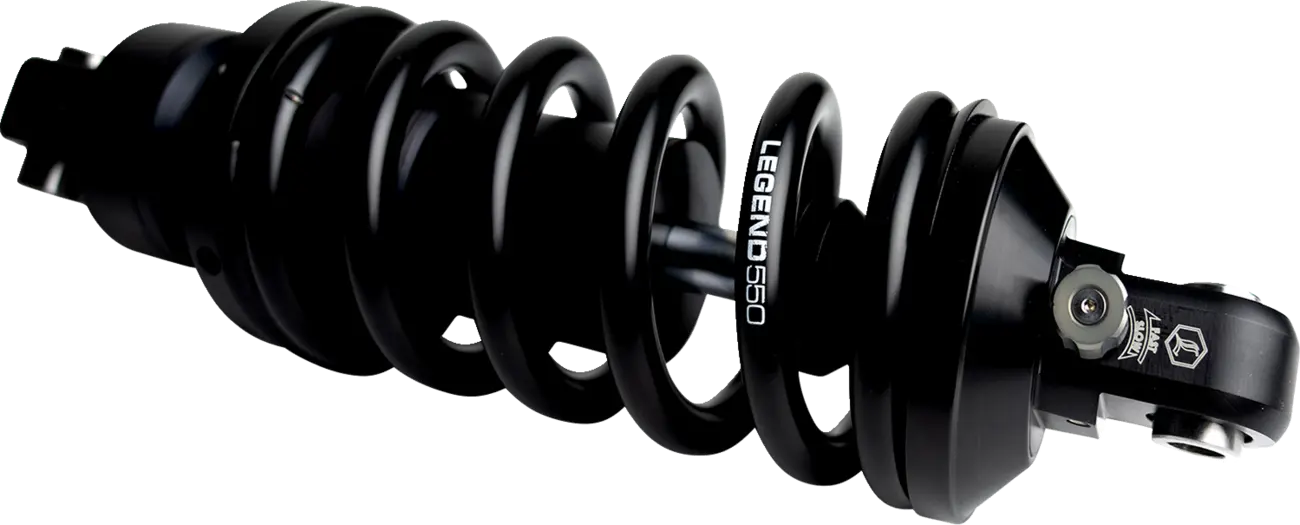

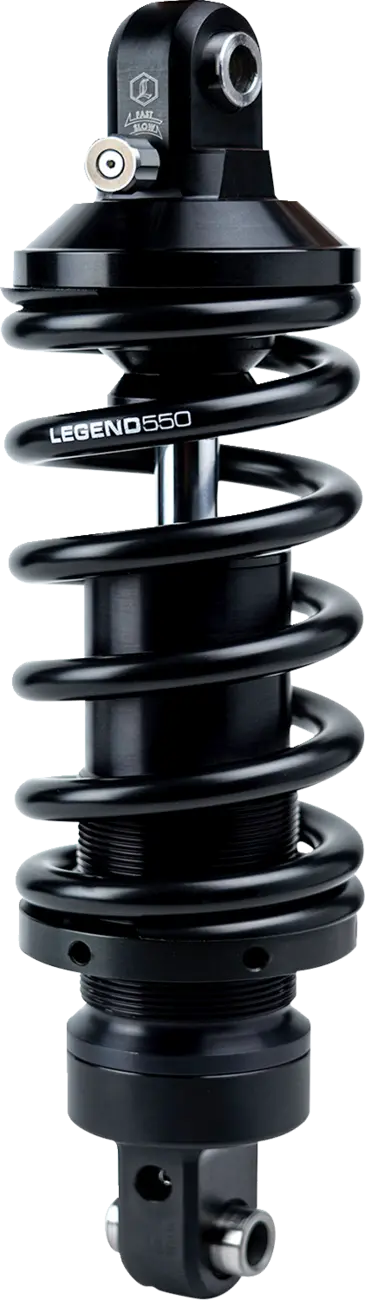

The Legend Suspension REVO-A coil suspension transforms your M-Eight Softail's handling and comfort. Featuring a newly designed Revo-A coil, this mono shock is available in multiple lengths (12.5", 13", and 13.5") and standard or heavy-duty applications to suit your specific needs. The Revo-A coil spring delivers exceptional ride comfort and resists bottoming out, making it ideal for all-day riding. Fine-tune the rebound performance with seven external knob adjustments, utilizing advanced needle valve technology to adapt to your riding style. The shock's adjustable preload allows for easy setup and adjustments when changing rider weights and loads. Built with a hard anodized, machined billet aluminum 46 mm mono tube and a lightweight high-flow piston, this suspension improves fluid flow, resulting in unmatched handling and bike control. The hard chromed shaft, 14% larger than standard, enhances strength and durability. Finished with a durable, low-friction sealing system, the Revo-A provides enhanced performance and feel.

Features & highlights

• Experience superior ride comfort and improved performance with the innovative Revo-A coil spring design.
• Fine-tune rebound performance with seven external knob adjustments using needle valve technology.
• Easily adjust preload for optimal setup and adaptability to varying rider weights and loads.
• Enjoy enhanced handling and control with the hard anodized, machined billet aluminum 46 mm mono tube and lightweight high-flow piston.
• Benefit from increased strength and durability with the 14% larger hard chromed shaft.
• Ensure consistent spring rate and longevity with the high-quality chrome-silicon spring.
• Enjoy easy installation and smooth operation with low-friction sleeve bearings and a durable sealing system.

Technical specifications

• Brand: Legend Suspension
• Product Name: Shock Absorber
• Type: Coilover Monotube
• Mounting Position: Rear
• Adjustment Type: Adjustable Rebound Damping
• Extended Length: 12.50" (318.00 mm)
• Material: Billet Aluminum
• Color/Finish: Black, Anodized
• Duty: Heavy Duty
• Reservoir Location: Internal

Important to know

• Sold as Mono Shock (1 shock only).
• Designed for optimum performance with the Legend Axeo front suspension (not included).
