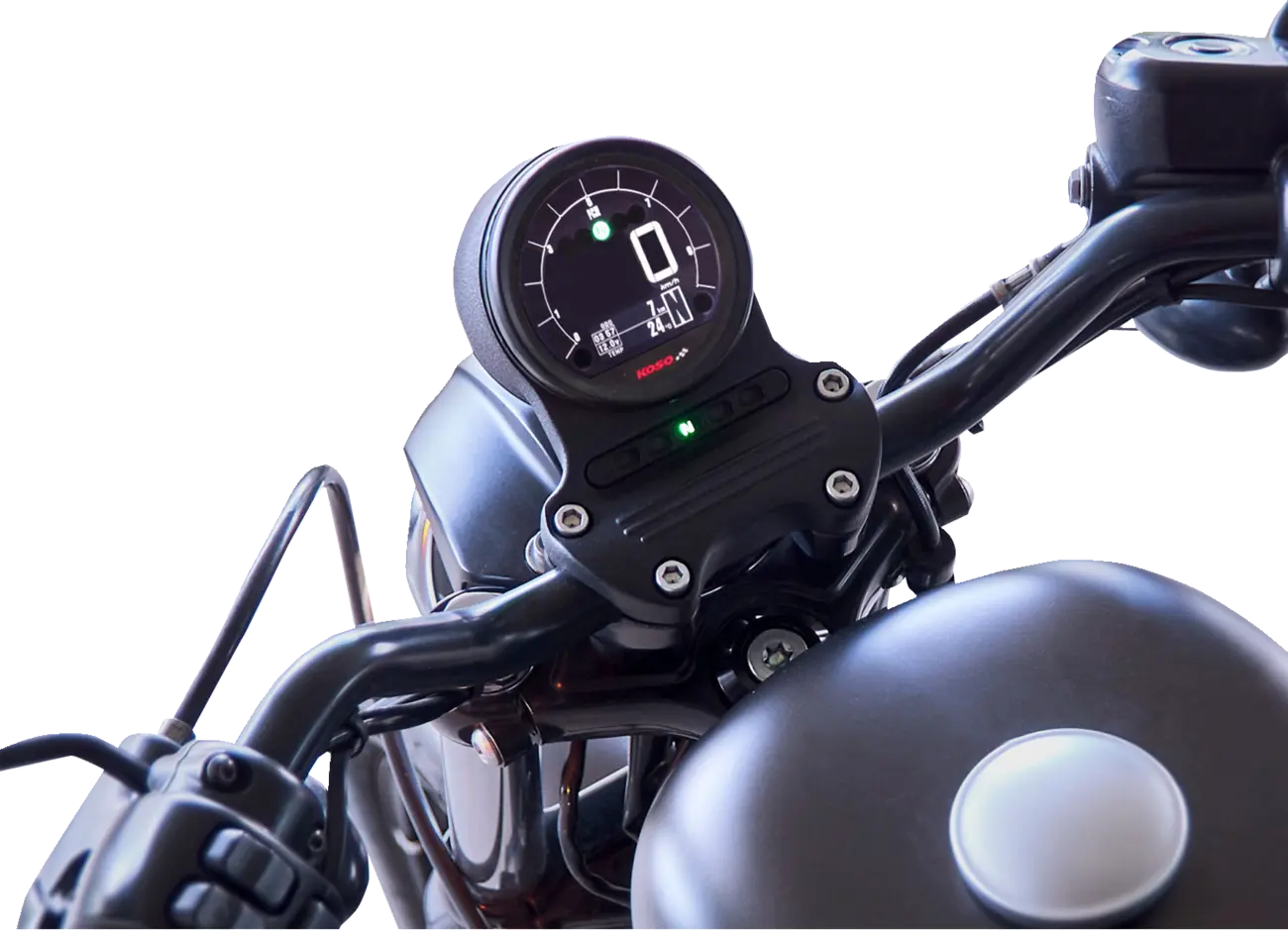

Koso North America Multifunction Meter

Upgrade your Harley-Davidson® with the Koso North America Multifunction Meter, a plug-and-play solution offering a blend of classic aesthetics and modern technology. This all-in-one gauge provides vital information at a glance, enhancing both the look and functionality of your motorcycle. The Koso Multifunction Meter is the perfect addition for any rider looking for style and performance.

Description

The Koso North America Multifunction Meter features a high-tech negative LCD screen housed in a classic round shape, providing a clear and comprehensive display of your motorcycle's essential data. Monitor your speed with the speedometer, track your mileage with the odometer and tripmeter, and stay on top of maintenance with the hour meter. The integrated indicator lights keep you informed of critical statuses such as oil, engine warning, high beam, and turn signals. The voltmeter displays voltage between DC 8V and 18V. Easily monitor your fuel level with the fuel meter, displaying six levels and the ability to track fuel tank volume from Off/1 to 9.9 US gallons.

Features & highlights

• Plug-and-Play Installation: Get up and running quickly with easy installation.
• Comprehensive Display: Monitor speed, mileage, and maintenance with a single, easy-to-read gauge.
• Enhanced Safety: Stay informed with indicator lights for oil, engine warnings, high beam, turn signals, and more.
• High-Tech LCD Screen: Experience a modern display that's easy to read in any lighting conditions.
• Fuel Monitoring: Keep track of your fuel level with the integrated fuel meter and fuel tank volume display.
• Overspeed Warning: Set an overspeed warning from 20 - 225 MPH to help you stay safe.

Technical specifications

• Brand: Koso North America
• Speedometer: 0 - 225 mph (0 - 360 kph)
• Tachometer: 0 - 10,000 RPM
• RPM Shift Light: 2,000 - 10,000 RPM
• Maximum RPM: 0 - 10,000 RPM
• Odometer: 0 - 999,999 miles
• Tripmeter: 0 - 9,999 miles
• Oil Maintenance: 999 - 10000 miles
• Voltmeter: DC 8V - 18V
• Overspeed Warning: 20 - 225 MPH
• Fuel Meter: 6 levels (1 level = 16.6%)
• Fuel Tank Volume: Off/1 - 9.9 US Gallons
• Face Color: Black
• Housing Color: Black
• Outside Diameter: 3-3/4" (95 mm)
• Depth: 2-5/16" (58.4 mm)

Important to know

Check your motorcycle's compatibility before purchase. Professional installation is recommended.
