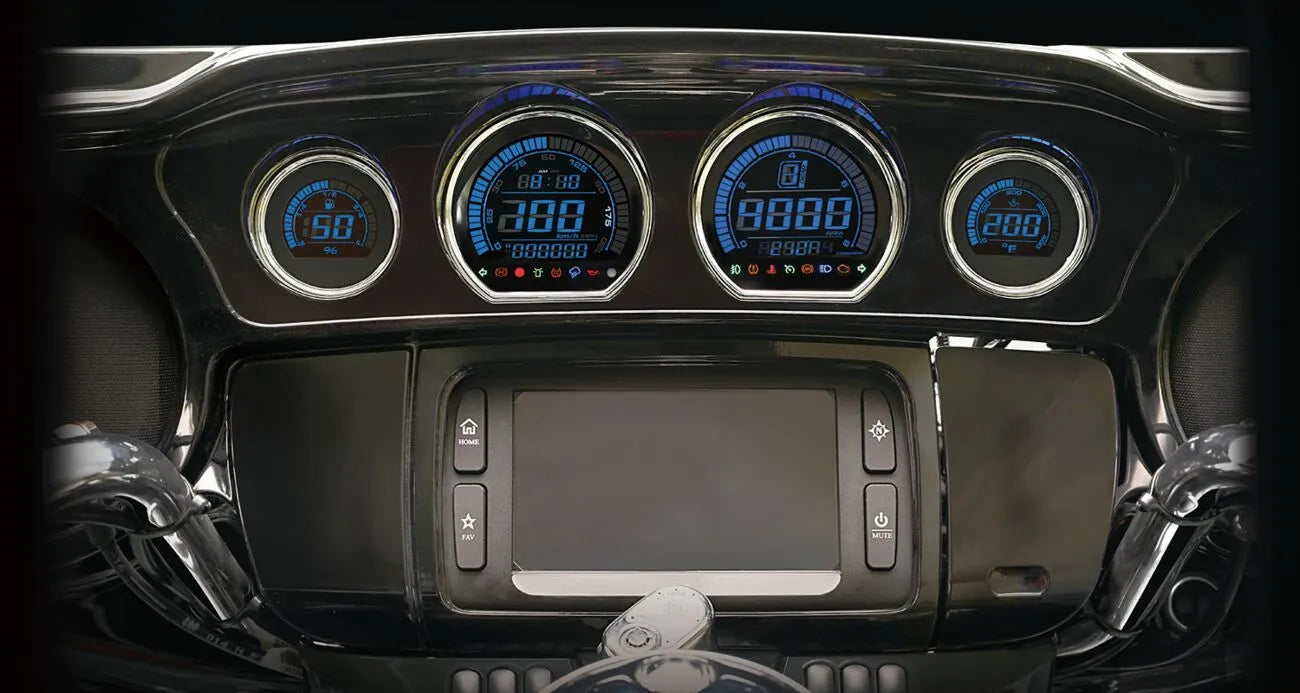

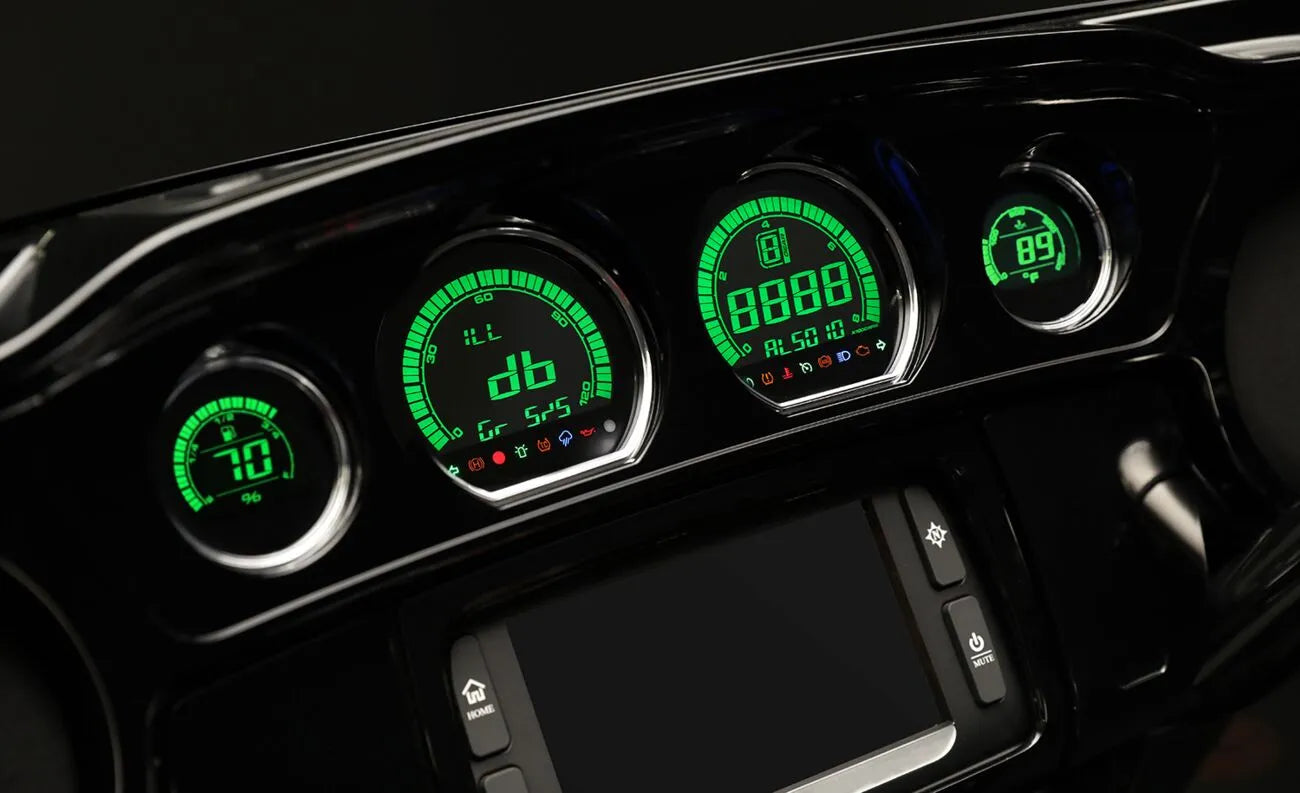

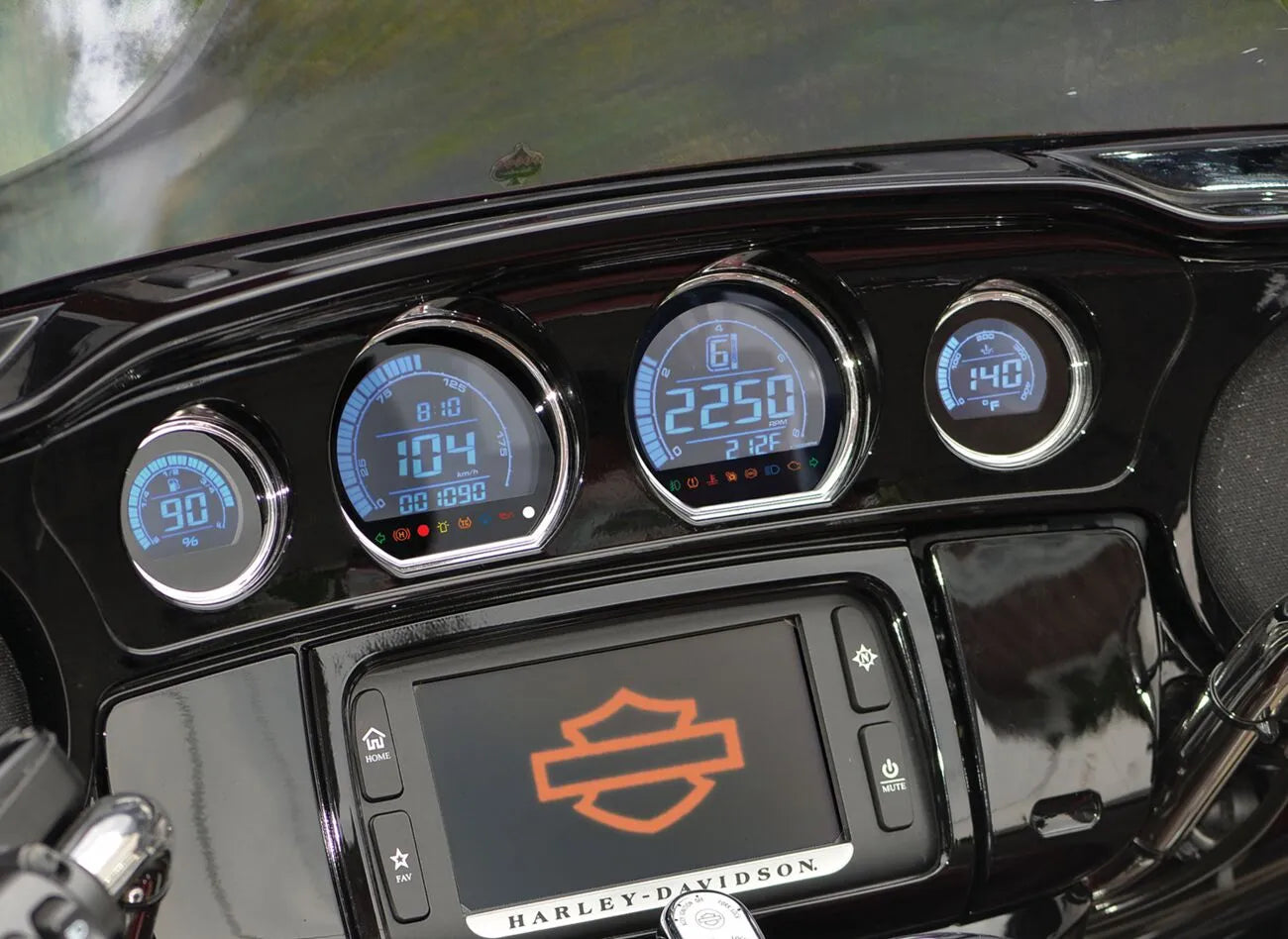

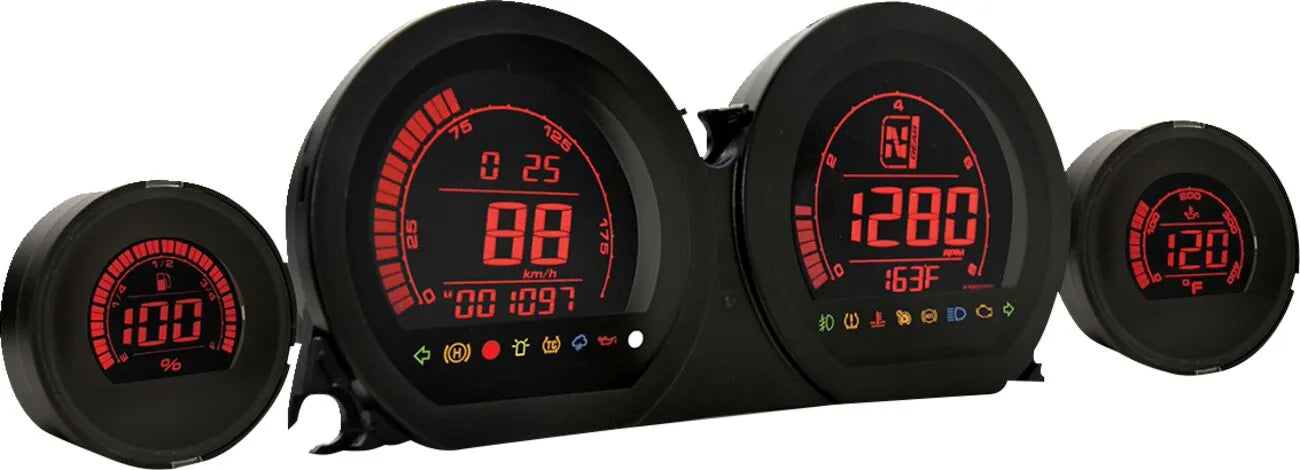

Koso North America Hd-03 Multifunction Gauge Kit

Upgrade your motorcycle's instrumentation with the Koso North America HD-03 Multifunction Gauge Kit. This all-in-one gauge solution provides a comprehensive overview of your bike's vital statistics, enhancing both your riding experience and your motorcycle's aesthetics. The HD-03 is engineered for seamless integration and reliable performance.

Description

The Koso HD-03 multifunction gauge kit offers a direct, plug-and-play replacement for your OEM dash. Featuring a color-changeable LCD display, you can customize the look to match your bike's style. This kit provides a wealth of information, including speedometer, tachometer, odometer, gear indicator, tripmeter, engine temperature, oil temperature, and fuel level. Stay informed about your bike's performance with indicator lights for oil, engine warning, high beam, fog light, and turn signals. The optional air pressure sensor (sold separately) is available for models equipped with air suspension. Monitor your speed, RPM, fuel consumption, and temperatures with ease. The HD-03 offers precision and clarity, ensuring you have all the critical data you need at a glance, ultimately boosting your confidence and control on every ride. Installation is straightforward, designed to get you back on the road quickly with enhanced insight into your motorcycle's operation.

Features & highlights

• Direct plug-and-play installation for easy setup.

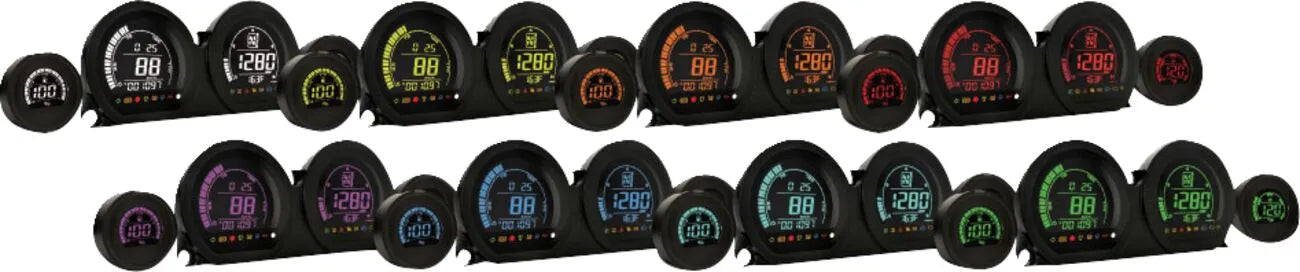

• Color-changeable LCD display for personalized aesthetics.
• Comprehensive data display: Speedometer, tachometer, odometer, and more.
• Essential indicator lights for critical alerts.
• Optional air pressure sensor available for air suspension models.
• Monitor engine and oil temperature to prevent damage.
• Track fuel consumption and remaining mileage for efficient riding.

Technical specifications

• Brand: Koso North America
• Product Name: Gauge Kit
• Type: Multi-Function
• Face Color: Black
• Housing Color: Black
• Speedometer: 0 - 199 MPH
• Maximum Speed Record: 0 - 199 MPH
• Overspeed Warning: 19 - 199 MPH
• Tachometer: 0 - 9,999 RPM
• RPM Shift Light: 2,000 - 8,000 RPM
• Maximum RPM: 0 - 8,000 RPM
• Odometer: 0 - 999,999 miles
• Tripmeter A/B: 0 - 9,999 miles
• Mileage Maintenance: 300 - 10,000 miles
• Oil Temperature Meter: 32° F - 248° F
• Maximum Oil Temperature Record: 32° F - 248° F
• Effective Temperature Range: 14° F - 140° F
• Fuel Meter: 6 levels (1 level = 16.6%)
• Fuel Tank Volume: Off/1 - 9.9 US Gallons
• Remaining Mileage: 0 - 6,249 miles
• Volt Meter: DC 8V - 18V
• Effective Voltage: DC 12V
• Depth: 2" / 1-3/4"
• Width: 3-3/4" / 2-3/4"
• Length: 2-3/4" / 10-5/8"

Important to know

Optional air pressure sensor for models equipped with air suspension is sold separately.
