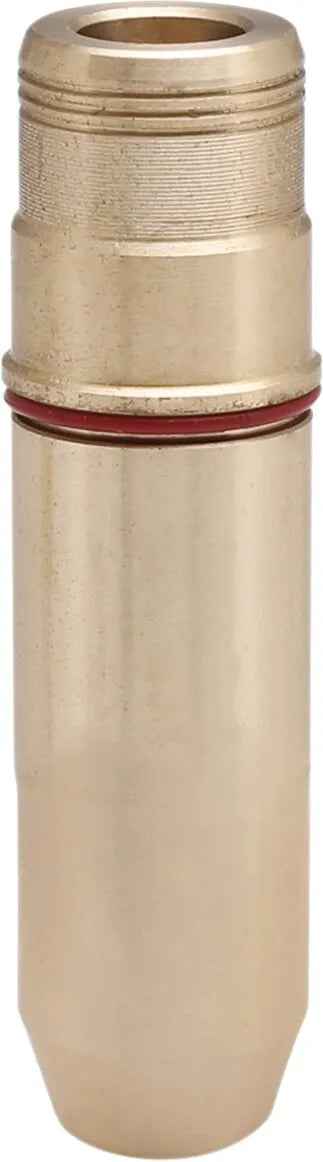

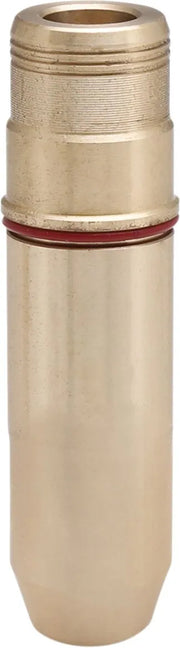

Kibblewhite Short Valve Guide - Manganese Bronze
Kibblewhite Short Valve Guide - Manganese Bronze
Hurry up, only 2 items left in stock.
-
Estimated delivery: Feb 07 - Feb 11
About this product
About this product
Upgrade your valve train with the Kibblewhite Short Valve Guide, designed for high-performance applications. Crafted from premium manganese bronze, these guides offer superior wear resistance and heat dissipation, ensuring optimal valve seating and extended engine life. Experience improved valve control and enhanced power delivery with these precision-engineered valve guides.
Description
The Kibblewhite Short Valve Guide is expertly crafted from manganese bronze, a material known for its excellent lubricity and heat transfer properties. This shortened design allows for the use of camshafts with up to 0.655" lift, making it ideal for performance builds. The guides are machined to accommodate 0.530" valve seals, providing a secure and leak-free seal. Installation is simplified with the ability to easily ream the guides using a battery-operated or electric drill, followed by finishing with a high-quality ball hone. Made in the USA, these valve guides ensure top-tier quality and reliability for your engine.
Features & highlights
- Optimized for high-performance applications, supporting cams with lifts up to 0.655".
- Manganese bronze construction provides superior wear resistance and heat dissipation.
- Allows easy reaming with standard tools for straightforward installation.
- Machined for compatibility with 0.530" valve seals, ensuring a tight, leak-free fit.
- Proudly made in the USA, guaranteeing exceptional quality and durability.
- Enhance valve seating and extend engine life with these precision-engineered guides.
Technical specifications
- Brand: KIBBLEWHITE
- Part Number: 20-20872M
- Application: Exhaust
- Inside Diameter: 0.3075"
- Outside Diameter: 0.5645"
- Material: Manganese-Bronze
- Product Name: Valve Guide
Important to know
Valve seals are not included and must be purchased separately.
Shipping & Return
Shipping & Return
Free shipping to GLS parcel shop parcel box for purchases over DKK 1,000.
GLS home delivery costs DKK 59.
We do our best to ship your order as quickly as possible. All orders are generally packed within 24 hours on weekdays.
There is a 14-day return policy. Read more
Parts Denmark Info
Parts Denmark Info
Parts Denmark is a new webshop based in Denmark. We have a physical location you can visit (No showroom yet), and we have both email and phone support in our opening hours.
Our company info is:
Parts Denmark ApS
VAT: DK45974758
Dam Holme 11
3660 Stenløse, Denmark
hello@partsdenmark.com
+45 222 333 29
Best regards,
William Svendsen & Martin Høyer (Owners)
Specifications
KIBBLEWHITE
20-20872M
Valve Guide
0.5645"
0.3075"
Exhaust
Manganese-Bronze
Each
