Feuling Parts Race Series Camchest Kit

Upgrade your Harley-Davidson engine's performance and reliability with the Feuling Parts Race Series® Camchest Kit. This comprehensive kit delivers increased oil pressure, scavenge volume, and engine oil flow, resulting in a cooler, smoother-running engine. Experience enhanced power and efficiency with reduced wet sumping and blow-by.

Description

The Feuling Parts Race Series® Camchest Kit is engineered for enthusiasts and professionals seeking maximum performance and durability. By optimizing oil circulation and reducing friction, this kit effectively lowers engine temperatures by 15°–35°F and oil temperatures by 15°–30°F. You'll also see a significant increase of 15–30 PSI in oil pressure. The heavy-duty, 0.165" wall, one-piece pushrods minimize valvetrain harmonics and maximize valve lift, allowing your engine to breathe freely. This kit pairs exceptionally well with slip-on mufflers, complete exhaust systems, and high-flow air cleaners, further enhancing performance with increased bore and/or compression. The included full-travel lifters are designed with a slower bleed-down rate to handle heavy valve spring pressures, increasing engine RPM before valve float. Clearance for steep ramped camshafts and the front exhaust camshaft lobe flange is also built-in. Increase the performance and reliability of your engine with the Feuling Parts Race Series® Camchest Kit. Includes a Reaper Series® camshaft with an intake duration of 237° and exhaust duration of 241.5°.

Features & highlights

• Experience quieter and smoother engine operation.
• Achieve cooler engine temperatures (15°–35°F) and oil temperatures (15°–30°F).
• Enjoy increased oil pressure (15–30 PSI), scavenge volume, and overall engine oil flow.
• Eliminates wet sumping, blow-by, and oily air cleaners for a cleaner running engine.
• Maximizes valve lift and minimizes valvetrain harmonics with heavy-duty pushrods.
• Optimized for use with performance upgrades like exhaust systems and high-flow air cleaners.
• Made in the USA.

Technical specifications

• Brand: Feuling Parts
• Product Name: Camchest Kit
• Type: Chain
• Grind: 508 Series
• Intake Duration: 237°
• Intake Lift: 0.508"
• Intake Open: 20.5°
• Intake Close: 37°
• Intake Lobe Centerline: 98.5°
• Intake Lift at TDC: 0.180"
• Exhaust Duration: 241.5°
• Exhaust Lift: 0.511"
• Exhaust Open: 44°
• Exhaust Close: 17.5°
• Exhaust Lobe Centerline: 103.25°
• Exhaust Lift at TDC: 0.146"
• Application: Exhaust, Intake
• Features: Twin Cooled

Important to know

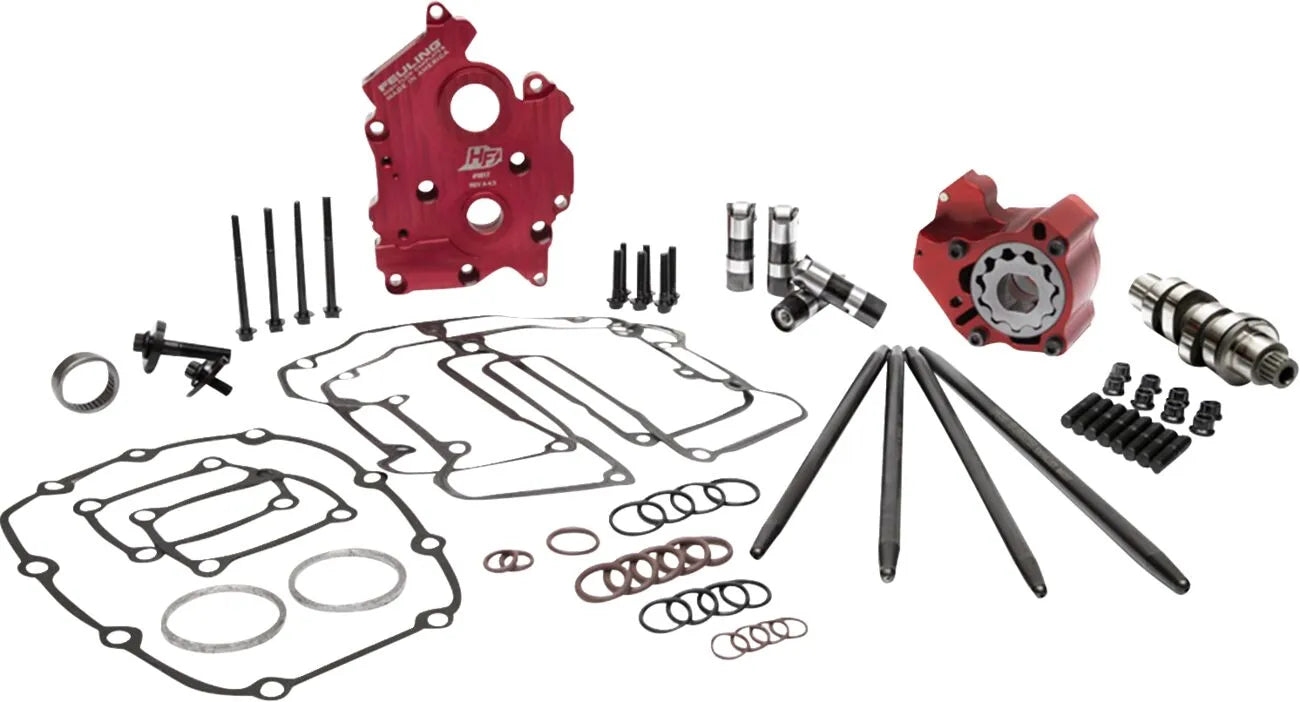

• Kit includes: Race Series® high volume oil pump, High Flow billet camplate, Reaper Series® camshaft, full-travel Race Series® hydraulic roller lifters, fixed length pushrods, Timken/Koyo cam bearing, rocker arm studs and nuts, gaskets, O-rings, ARP® cam/crank fasteners, washers, moly lube, and Loctite®.
• Not compatible with '23-'24 models equipped with 121" VVT motors.
