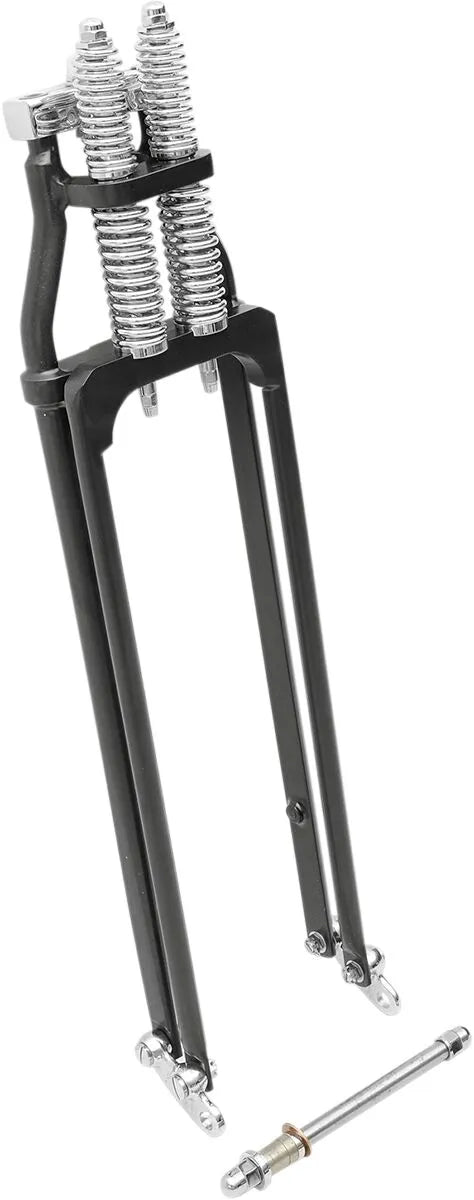

Drag Specialties Custom Springer Forks For Fxst Front End

Upgrade your motorcycle with the Drag Specialties Custom Springer Forks. This fully assembled springer front end offers an economical alternative to shock-dampened designs, providing classic styling and reliable performance. Designed for enthusiasts seeking a traditional look and feel, these forks deliver a distinctive appearance and solid handling.

Description

The Drag Specialties Custom Springer Forks are engineered for easy installation and compatibility with a range of custom applications. With an in-line top bracket and no built-in rake, these forks offer a clean and streamlined aesthetic. The standard length of 31" (measured from the top bearing to the axle) mirrors that of a standard-length FXST front end, ensuring a familiar riding experience. Featuring a 1" O.D. steering stem designed for Timken® type bearings, these forks guarantee smooth and precise steering. Both rear legs are threaded to accommodate right or left brakes, offering versatile customization options. The included 3/4" O.D. axle kit comes complete with a brake mount pivot, thrust washer, and hub spacers, though custom spacers may be needed depending on your specific wheel. These springer forks measure 9-1/4" between the Rockers and the riser mounts are on 4-3/4" centers and threaded 1/2"-20. Upgrade your ride with the quality and style of Drag Specialties.

Features & highlights

• Economical alternative to shock-dampened Springer forks, offering classic style at a great value.
• Fully assembled with an in-line top bracket for straightforward installation.
• Standard 31" length comparable to a stock FXST front end, ensuring familiar geometry.
• 1" O.D. steering stem designed for Timken® type bearings for smooth handling.
• Rear legs threaded for versatile brake configurations (right or left).
• Includes 3/4" O.D. axle kit with brake mount pivot, thrust washer, and hub spacers.
• Riser mounts on 4-3/4" centers with 1/2"-20 threads for easy handlebar setup.

Technical specifications

• Brand: Drag Specialties
• Color/Finish: Black
• Product Name: Springer
• Steering Stem O.D.: 1"
• Axle O.D.: 3/4"
• Length: 31" (from top bearing to axle)
• Distance Between Rockers: 9-1/4"
• Riser Mount Centers: 4-3/4"
• Riser Mount Thread: 1/2"-20

Important to know

Requires a wheel compatible with a 3/4" O.D. axle. Custom spacers may be required depending on the wheel used. Springers do not accept spotlight bars and have no fender mounts.
