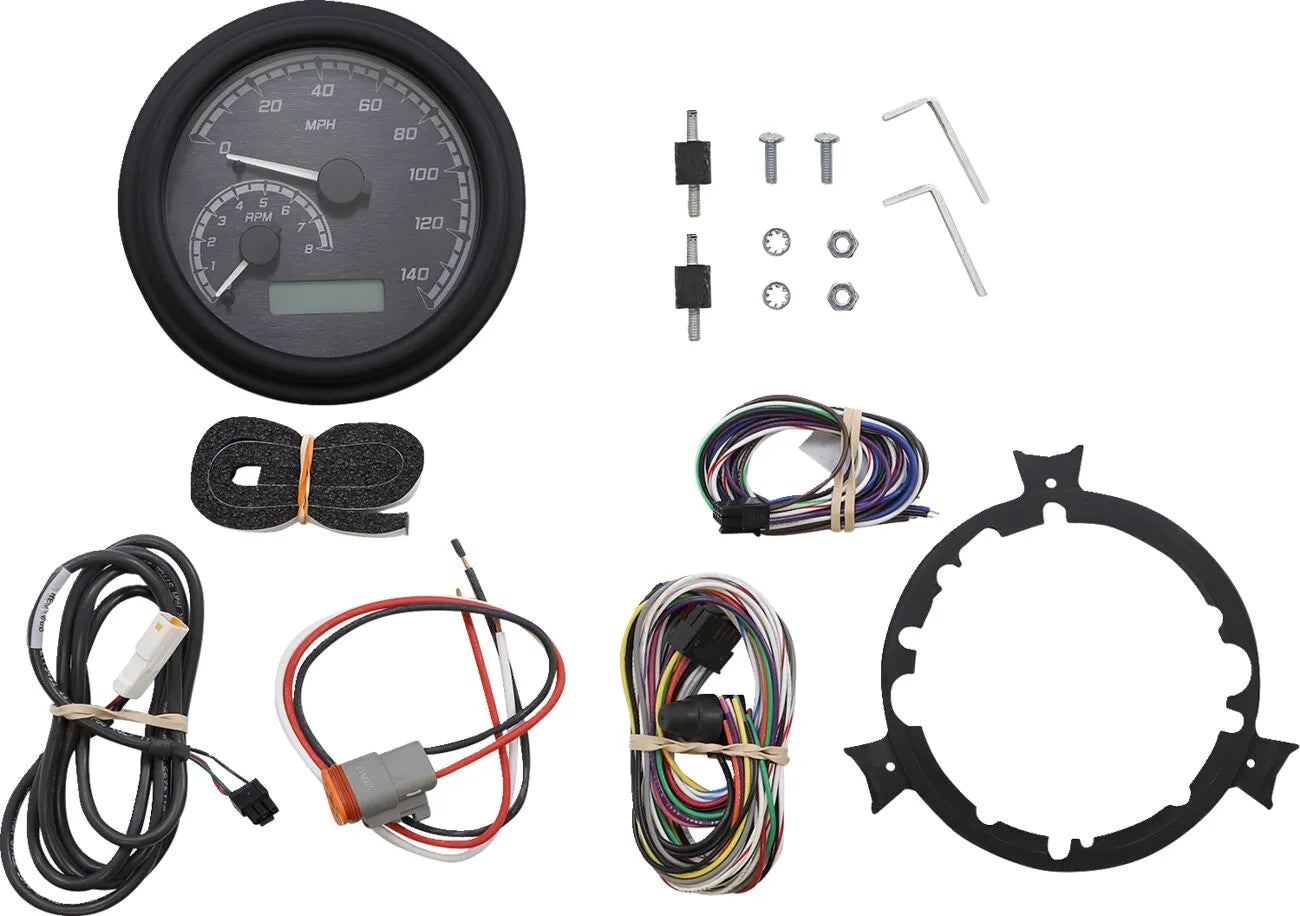

Dakota Digital Mvx Analog Gauge - 140 Mph Speedometer

Upgrade your motorcycle's instrumentation with the Dakota Digital MVX Series Analog Gauge System. This all-in-one gauge combines essential functions with customizable aesthetics, providing a sleek and informative display for your ride. Experience enhanced control and monitoring with this premium gauge system.

Description

The Dakota Digital MVX Series Analog Gauge System offers a comprehensive suite of features, including a 140 mph speedometer, 8,000 rpm tachometer, odometer, and dual resettable trip meters. The system also incorporates a full indicator light complement for turn signal, high beam, neutral, and low oil pressure. For '99-'03 models, enjoy seven user-selectable colors for the pointer, backlight, and LCD message center. For '11-'22 models, the options expand to 31 user-selectable colors. The tachometer includes an adjustable shift point and digital numeric readout. Additional functionalities include resettable miles to service, hour meter, clock, voltage readout with low-voltage alert, cylinder head temperature sensor compatibility (if equipped), and a seven-speed gear position indicator. Performance calculations, such as 0-60 time and top speed recall, are also available. The gauge features a 4-1/4" case diameter and 4-5/8" bezel diameter.

Features & highlights

• All-in-one analog gauge system with 140 mph speedometer and 8,000 rpm tachometer.
• User-selectable colors for pointer, backlight, and LCD message center (7 colors for '99-'03 models, 31 colors for '11-'22 models).
• Comprehensive indicator lights for turn signal, high beam, neutral, and low oil pressure.
• Advanced features include resettable miles to service, hour meter, and voltage readout with low-voltage alert.
• Gear position indicator compatible with 3- to 7-speed transmissions.
• Performs performance calculations: 0-60 time, top speed recall, and quarter-mile stats.
• Stylish design with a 4-5/8" bezel diameter.

Technical specifications

• Brand: Dakota Digital
• Product Name: Gauge
• Type: Analog Speedometer
• Face Color: Black, Gray
• Housing Color: Black
• Speedometer Calibration: 0 kph - 225 kph (0 mph - 140 mph)
• Tachometer Calibration: 0 rpm - 8,000 rpm
• Outside Diameter: 4.625" (11.8 cm)

Important to know

Note: This gauge requires cut/splice wiring installation and is not a direct plug-in. The oil pressure sending unit is sold separately (part #s 2212-0513 or DS-250019). Ensure compatibility with your motorcycle's factory sender unit for cylinder head temperature readings.
