Biltwell 1" Handlebar With Tbw Plugs

Upgrade your motorcycle with the Biltwell 1" Handlebar, designed for superior performance and aesthetics. This handlebar offers seamless compatibility with both cable and Throttle-By-Wire (TBW) systems, providing versatility for a wide range of motorcycle builds. Crafted with precision and durability in mind, it's the perfect blend of form and function.

Description

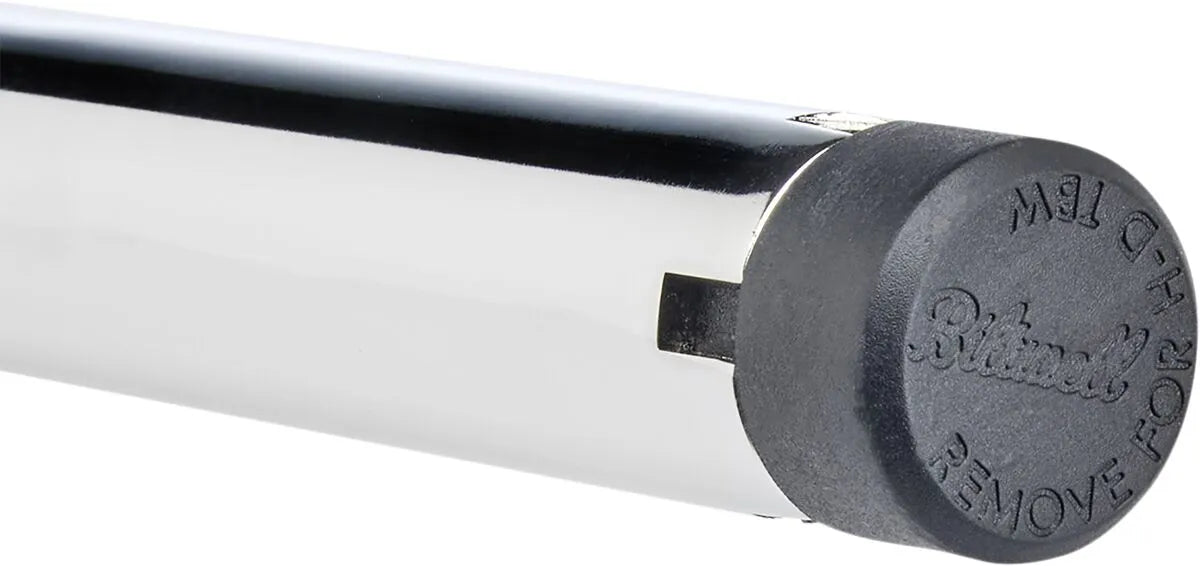

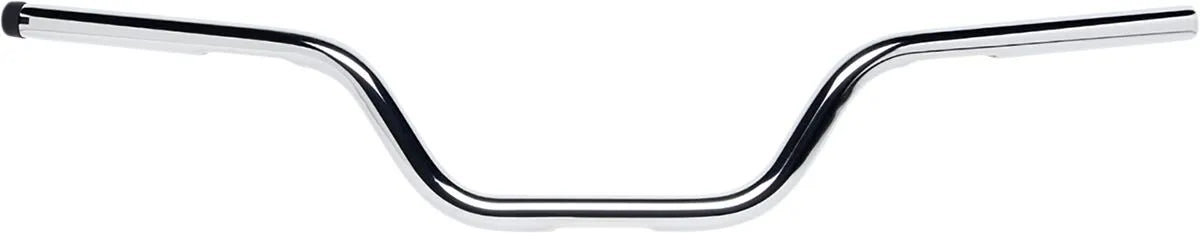

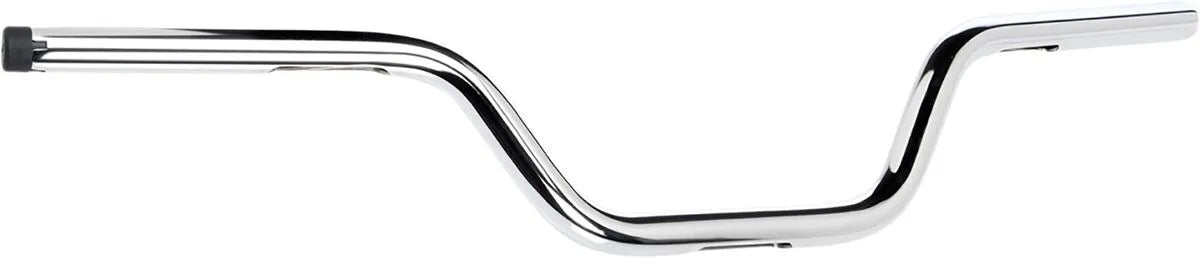

The Biltwell 1" Handlebar features a reinforced nylon plug that allows for easy adaptation between cable throttles and TBW systems. Constructed from thick-walled 0.120" 4130 chromoly steel, this handlebar offers exceptional strength and longevity. The precision mandrel-bent tubing ensures accurate alignment and comfortable ergonomics. Milled slots on the bar ends and clamping area facilitate clean internal wire routing, giving your motorcycle a professional, uncluttered look. The notched and internally tapered right-side bar end is specifically designed to accommodate Harley-Davidson's Throttle-By-Wire control module. Precision mitered and TIG-welded tube joints further enhance the handlebar's structural integrity and visual appeal. Finished in a brilliant chrome, these handlebars are 1" in diameter and have a 4-1/2" rise, a 2-3/4" pullback, and a 30" width. The clamping and controls diameter are both 1".

Features & highlights

• Adapts seamlessly between cable and Throttle-By-Wire (TBW) systems for maximum compatibility.
• Constructed from robust 0.120" (3 mm) thick-walled 4130 chromoly steel for superior strength.
• Precision mandrel-bent tubing ensures accurate alignment and comfortable ergonomics.
• Milled slots allow for clean and easy internal wire routing.
• Notched and tapered bar end designed for Harley-Davidson Throttle-By-Wire control module.
• Features precision mitered and TIG-welded tube joints for enhanced durability and aesthetics.

Technical specifications

• Brand: Biltwell
• Part Number: 6009-1057
• Base Color: Silver
• Finish: Chrome
• Center Width: 5" (12.5 cm)
• Clamping Diameter: 1" (25.4 mm)
• Controls Diameter: 1" (25.4 mm)
• End Rise: 4" (10 cm)
• Handlebar Diameter: 1" (25.4 mm)
• Height/Rise: 4-1/2" (11.5 cm)
• Material: Chromoly
• Pullback/Sweep: 2-3/4" (69.9 mm)
• Type/Bend: Tracker, High
• Width: 30" (76 cm)
• Features: Cable Throttle Application, Slotted, Notched for Throttle-By-Wire

Important to know

This handlebar is sold individually (each).
