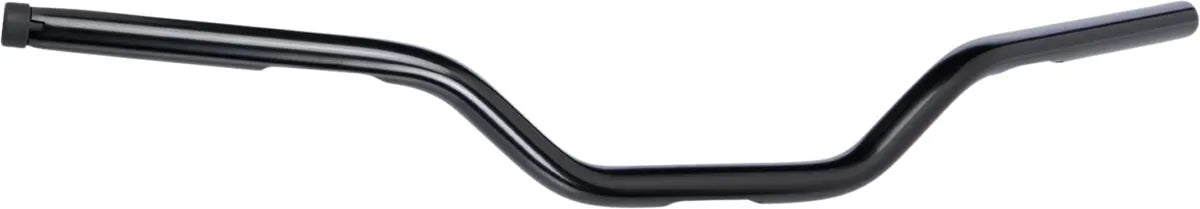

Biltwell 1" Handlebar W/ Tbw Plugs

Upgrade your motorcycle with the Biltwell 1" Handlebar, engineered for superior performance and compatibility. This handlebar combines robust construction with rider-focused design, ensuring a comfortable and controlled riding experience. Whether you're cruising or carving corners, the Biltwell handlebar enhances your connection with the road.

Description

Crafted from seamless, thick-walled 0.120" (3 mm) 4130 chromoly, the Biltwell 1" Handlebar offers exceptional strength and durability. Precision mandrel-bent tubing ensures accurate alignment and comfortable ergonomics, reducing rider fatigue. The handlebar features milled slots on the bar ends and clamping area, facilitating clean internal wire routing for a streamlined appearance. The notched and internally tapered right-side bar end is specifically designed to accept Harley-Davidson Throttle-By-Wire (TBW) control modules, providing seamless integration. Precision mitered, TIG welded tube joints guarantee structural integrity and long-lasting performance. The injection-molded, reinforced nylon plug in the bar end on the throttle side is compatible with select stock and aftermarket single- and dual-cable throttles, and can be easily removed for TBW applications. The 1" clamping diameter ensures compatibility with a wide range of motorcycles.

Features & highlights

• Constructed from high-strength 0.120" (3 mm) thick 4130 chromoly steel for maximum durability.
• Precision mandrel-bent tubing provides accurate alignment and comfortable ergonomics.
• Milled slots allow for clean and easy internal wire routing.
• Notched and tapered right-side bar end is designed for Harley-Davidson Throttle-By-Wire (TBW) compatibility.
• Injection-molded nylon plug adapts to both cable and TBW throttle systems.
• TIG welded tube joints ensure superior strength and a clean look.
• Black finish.

Technical specifications

• Brand: Biltwell
• Part Number: 6008-2017
• Color/Finish: Black
• Material: Chromoly
• Handlebar Diameter: 1" (25.4 mm)
• Clamping Diameter: 1" (25.4 mm)
• Controls Diameter: 1" (25.4 mm)
• Center Width: 5" (12.5 cm)
• Width: 30-1/2" (77.5 cm)
• Rise: 3-1/4" (82.6 mm)
• End Rise: 3" (76.2 mm)
• Pullback/Sweep: 2-3/4" (69.9 mm)
• Type/Bend: Tracker, Mid
• Features: Cable Throttle Application, Slotted, Notched for Throttle-By-Wire

Important to know

Check compatibility with your specific motorcycle model before installation.
