Biltwell 1" Handlebar W/ Tbw Plugs

Upgrade your motorcycle's control and style with the Biltwell 1" Handlebar. Expertly crafted for performance and aesthetics, this handlebar offers exceptional durability and compatibility. Designed for riders who demand the best in both form and function, it's an ideal choice for customizing your ride.

Description

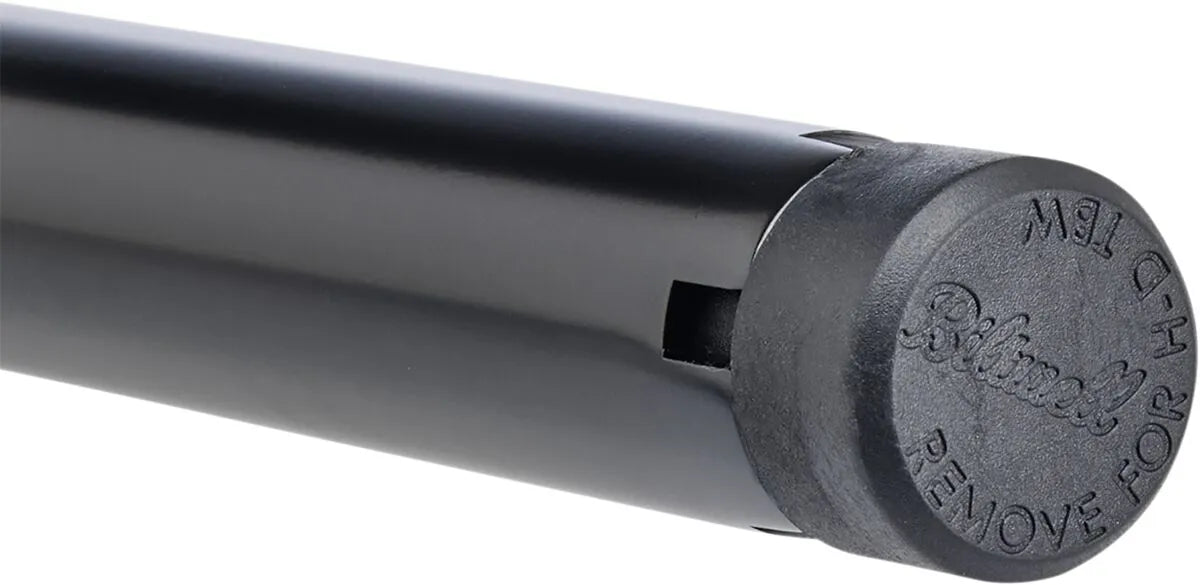

The Biltwell 1" Handlebar is constructed from seamless, thick-walled 0.120" (3 mm) 4130 chromoly steel, ensuring superior strength and longevity. Precision mandrel bending provides accurate alignment and comfortable ergonomics, enhancing your riding experience. Milled slots on the bar ends and clamping area facilitate clean and efficient internal wire routing, giving your bike a sleek, uncluttered look. The notched and internally tapered right-side bar end is specifically designed to accept the Harley Throttle-By-Wire control module. The injection-molded, reinforced nylon plug allows for easy adaptation to both cable and Throttle-By-Wire (TBW) systems. Precision mitered and TIG-welded tube joints guarantee structural integrity and a refined finish.

Features & highlights

• Constructed from high-strength, seamless 0.120" (3 mm) thick 4130 chromoly steel for maximum durability.
• Compatible with both cable and Throttle-By-Wire (TBW) systems for versatile applications.
• Milled slots enable clean and easy internal wire routing, improving aesthetics.
• Precision mandrel-bent tubing ensures accurate alignment and comfortable ergonomics.
• TIG-welded tube joints offer superior strength and a refined appearance.
• Features a black finish for a stylish and custom look.

Technical specifications

• Brand: Biltwell
• Product Name: Handlebar
• Type/Bend: Tracker, High
• Material: Chromoly
• Color/Finish: Black
• Handlebar Diameter: 1" (25.4 mm)
• Clamping Diameter: 1" (25.4 mm)
• Controls Diameter: 1" (25.4 mm)
• Center Width: 5" (12.5 cm)
• Width: 30" (76 cm)
• Height: 4.5" (11.5 cm)
• End Rise: 4" (10 cm)
• Pullback/Sweep: 2.75" (69.9 mm)
• Features: Notched for Throttle-By-Wire, Slotted, Cable Throttle Application

Important to know

This handlebar requires proper installation and may require additional components depending on your motorcycle model. Professional installation is recommended.
