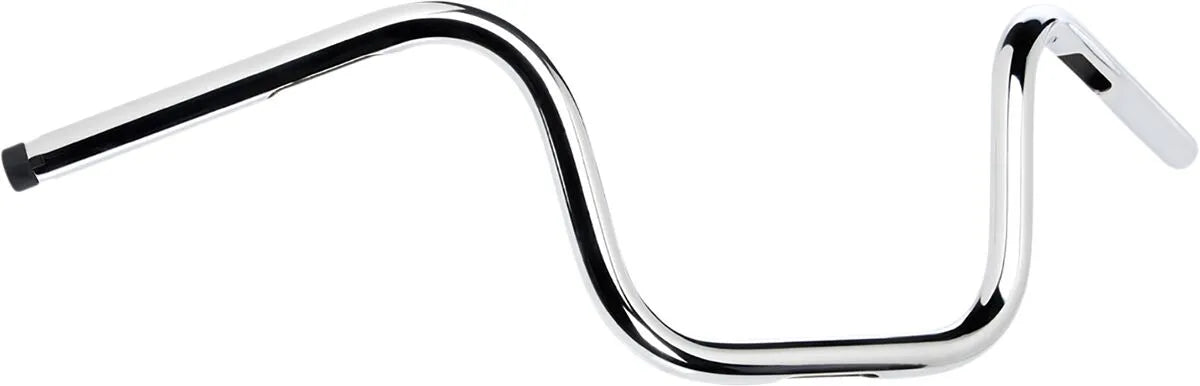

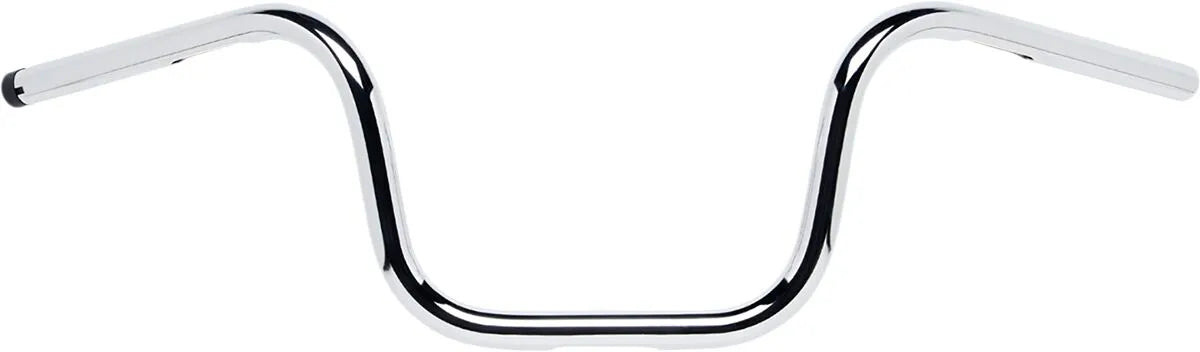

Biltwell 1" Chrome Handlebar With Tbw Plugs

Upgrade your motorcycle's controls with the Biltwell 1" Handlebar, designed for both style and performance. This handlebar combines classic aesthetics with modern functionality, making it a perfect choice for custom builds and performance upgrades. The chrome finish adds a touch of elegance while ensuring durability.

Description

The Biltwell 1" Handlebar is constructed from seamless, thick-walled 0.120" (3 mm) 4130 chromoly for superior strength and reliability. Precision mandrel-bent tubing ensures accurate alignment and comfortable ergonomics, enhancing your riding experience. Milled slots on the bar ends and clamping area facilitate clean internal wire routing, providing a professional, uncluttered look. The notched and internally tapered right-side bar end is specifically designed to accept Harley-Davidson Throttle-By-Wire (TBW) control modules. An injection-molded, reinforced nylon plug is included for compatibility with standard cable throttles; simply remove the plug for TBW applications. Precision mitered and TIG welded tube joints guarantee exceptional build quality.

Features & highlights

• Constructed from high-strength 0.120" (3 mm) thick 4130 chromoly steel for maximum durability.
• Designed for use with Harley-Davidson Throttle-By-Wire (TBW) systems, offering seamless integration.
• Features milled slots for clean and easy internal wire routing, enhancing aesthetics and functionality.
• Precision mandrel-bent tubing ensures accurate alignment and comfortable ergonomics.

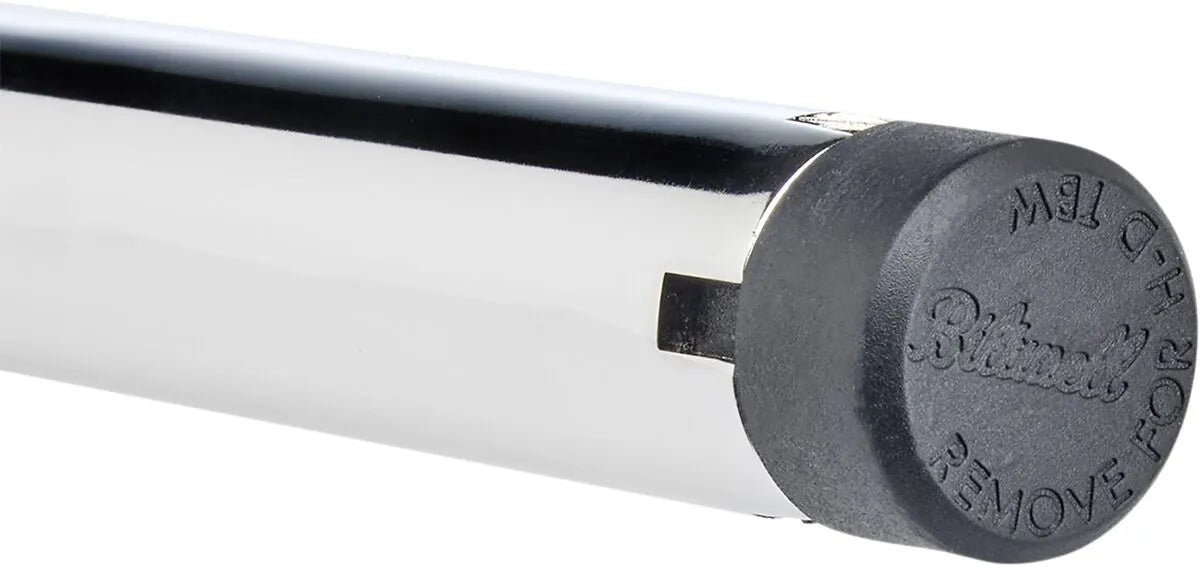

• Includes an injection-molded nylon plug for compatibility with cable throttles.
• Chrome finish provides a stylish and durable appearance.

Technical specifications

• Brand: Biltwell
• Product Name: Handlebar
• Type/Bend: Chumps
• Material: 4130 Chromoly
• Handlebar Diameter: 1" (25.4 mm)
• Clamping Diameter: 1" (25.4 mm)
• Controls Diameter: 1" (25.4 mm)
• Finish: Chrome
• Width: 30-1/2" (77.5 cm)
• Height: 8" (20.5 cm)
• End Rise: 6" (15 cm)
• Pullback/Sweep: 6-1/2" (16.5 cm)
• Center Width: 4-3/4" (12 cm)
• Features: Cable Throttle Application, Slotted, Notched for Throttle-By-Wire

Important to know

Ensure compatibility with your motorcycle's make and model before installation. Professional installation is recommended for optimal performance and safety.
