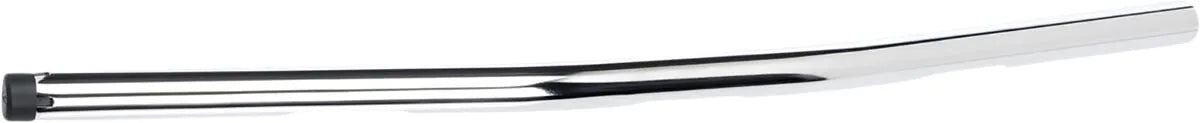

Biltwell 1" Chrome Handlebar W/ Tbw Plugs

Upgrade your motorcycle with the Biltwell 1" Handlebar, designed for both performance and style. This handlebar combines robust construction with rider-friendly features, making it an excellent choice for enthusiasts and professionals alike. Its compatibility with Throttle-By-Wire systems adds a modern touch to your ride.

Description

The Biltwell 1" Handlebar is expertly crafted from seamless, thick-walled 0.120" (3 mm) 4130 chromoly steel, ensuring exceptional durability and reliability. Precision mandrel-bent tubing provides accurate alignment and comfortable ergonomics. Milled slots on the bar ends and clamping area facilitate clean internal wire routing, keeping your controls organized and streamlined. The notched and internally tapered right-side bar end is specifically designed to accept Harley-Davidson Throttle-By-Wire control modules. The bar includes an injection-molded, reinforced nylon plug on the throttle side, allowing compatibility with both stock and aftermarket single- and dual-cable throttles. Simply remove the plug for TBW applications. Featuring precision mitered and TIG welded tube joints, this handlebar guarantees superior strength and a seamless finish. The chrome finish adds a sleek, custom look to any motorcycle.

Features & highlights

• Constructed from high-strength 0.120" (3 mm) thick 4130 chromoly steel for maximum durability.
• Compatible with Harley-Davidson Throttle-By-Wire (TBW) systems with a notched and tapered right-side.
• Features milled slots for clean and easy internal wire routing.
• Precision mandrel-bent tubing ensures accurate alignment and comfortable ergonomics.

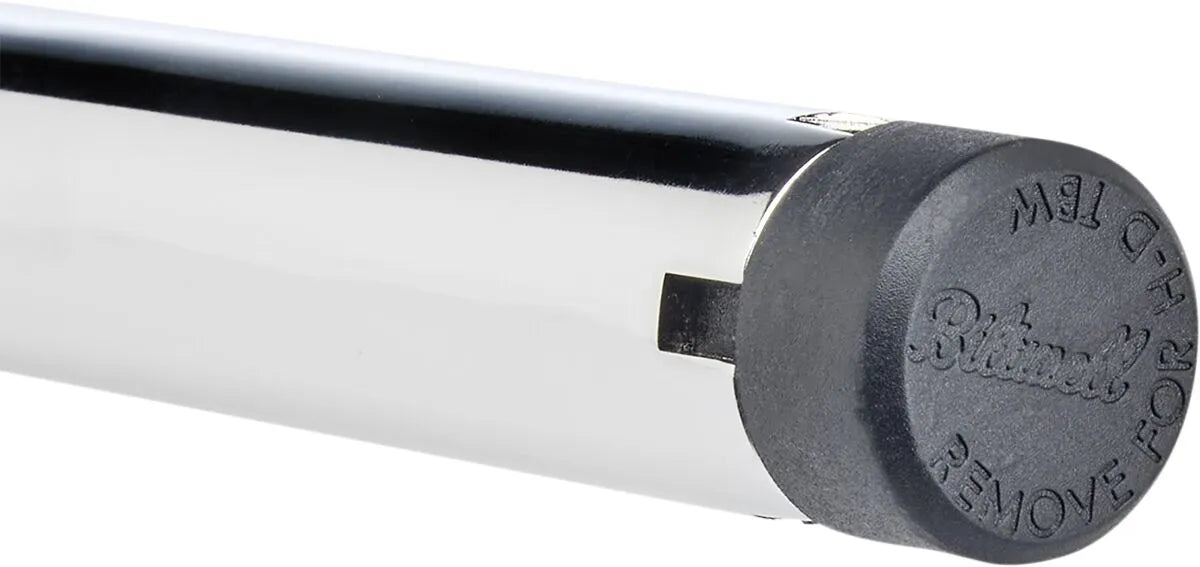

• Includes a removable nylon plug for use with cable throttles.
• Boasts precision mitered and TIG welded tube joints for enhanced strength and a seamless finish.

Technical specifications

• Brand: Biltwell
• Product Name: Handlebar
• Type/Bend: Zero, Drag
• Handlebar Diameter: 1" (25.4 mm)
• Clamping Diameter: 1" (25.4 mm)
• Controls Diameter: 1" (25.4 mm)
• Material: Chromoly
• Finish: Chrome
• Base Color: Silver
• Width: 27-1/4" (69 cm)
• Pullback/Sweep: 2" (50.8 mm)
• Center Width: 5" (12.5 cm)
• Rise: 0" (0 mm)
• End Rise: 0" (0 mm)
• Features: Cable Throttle Application, Slotted, Notched for Throttle-By-Wire

Important to know

No additional hardware is included.
