Biltwell 1" Chrome Handlebar Tbw

Upgrade your motorcycle with the Biltwell 1" Handlebar, designed for superior performance and aesthetics. This handlebar combines robust construction with intelligent design, ensuring compatibility with both cable and Throttle-By-Wire (TBW) systems.

Description

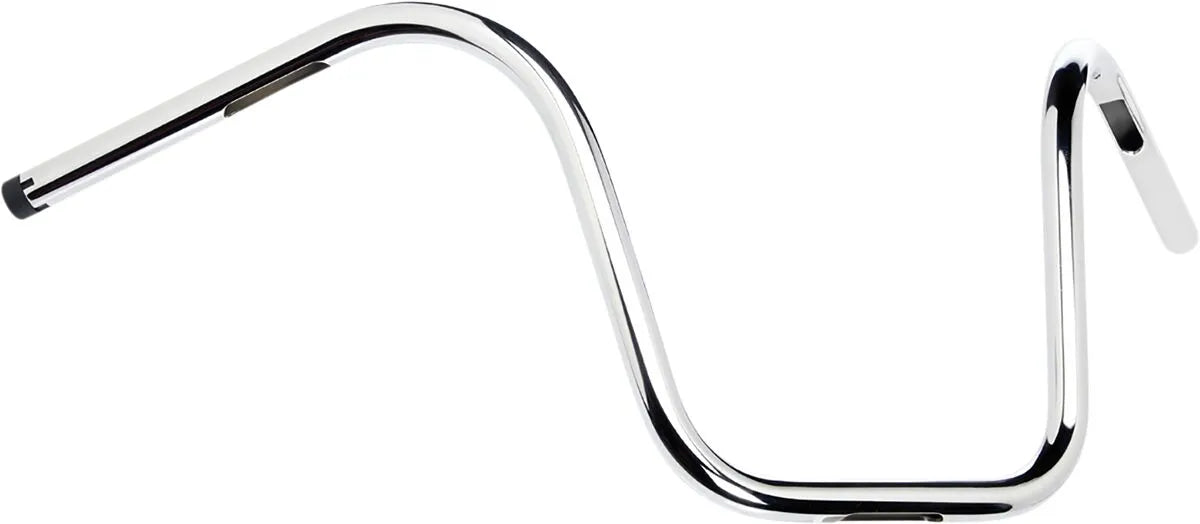

The Biltwell 1" Handlebar provides exceptional durability and a sleek chrome finish. Constructed from seamless, thick-walled 0.120" (3 mm) 4130 chromoly, this handlebar is precision mandrel-bent to achieve accurate alignment and comfortable ergonomics. Milled slots on the bar ends and clamping area facilitate clean internal wire routing, enhancing the overall look of your motorcycle. The notched and internally tapered right-side bar end is specifically designed to accept the Harley Throttle-By-Wire control module, offering seamless integration. For those using standard cable throttles, an injection-molded, reinforced nylon plug is included, easily removable for TBW compatibility. Precision mitered and TIG-welded tube joints ensure maximum strength and a flawless appearance. With a 1" clamping diameter, these ape hanger handlebars provide a custom look and enhanced riding experience. Chrome handlebars that offer both style and function.

Features & highlights

• Constructed from seamless, thick-walled 0.120" (3 mm) 4130 chromoly for maximum strength and durability.
• Precision mandrel-bent tubing ensures accurate alignment and comfortable ergonomics.
• Milled slots on bar ends and clamping area allow for clean and efficient internal wire routing.
• Notched and internally tapered right-side bar end is designed to accept the Harley Throttle-By-Wire control module.

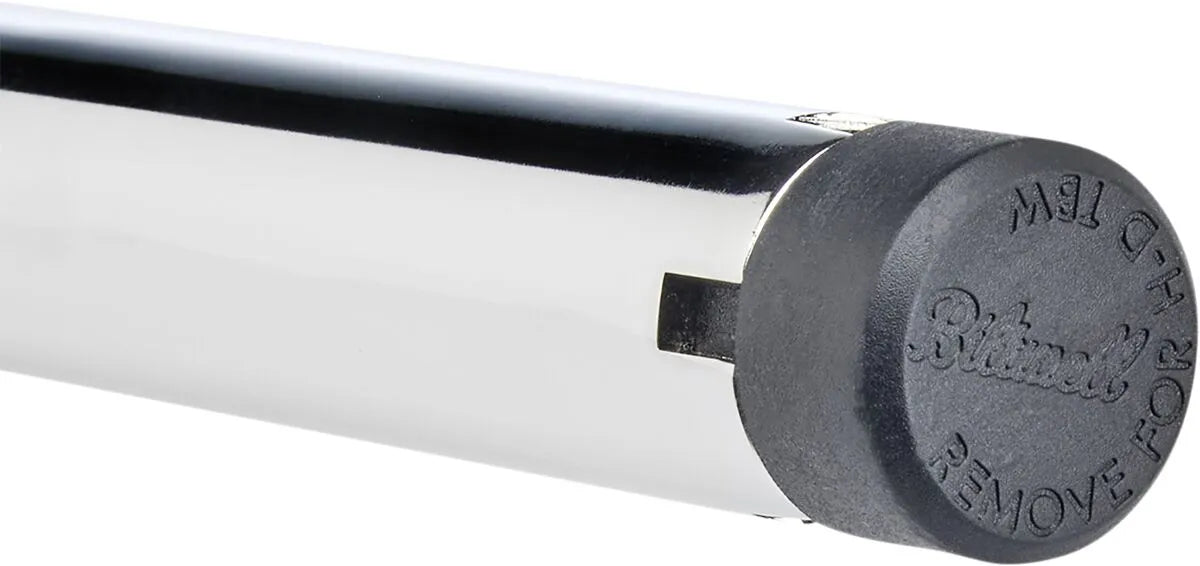

• Includes an injection-molded, reinforced nylon plug for compatibility with both cable and Throttle-By-Wire systems.
• Features precision mitered and TIG-welded tube joints for a flawless finish and enhanced strength.
• Eye-catching chrome finish adds a touch of style to your motorcycle.

Technical specifications

• Brand: Biltwell
• Product Name: Handlebar
• Type/Bend: Ape Hanger
• Handlebar Diameter: 1" (25.4 mm)
• Clamping Diameter: 1" (25.4 mm)
• Controls Diameter: 1" (25.4 mm)
• Width: 32" (81.5 cm)
• Height: 12" (30.5 cm)
• Rise: 9-1/2" (24 cm)
• End Rise: 9-1/2" (24 cm)
• Pullback/Sweep: 6-1/2" (16.5 cm)
• Center Width: 4-3/4" (12 cm)
• Material: Chromoly
• Finish: Chrome
• Features: Cable Throttle Application, Slotted, Notched for Throttle-By-Wire

Important to know

Ensure proper fitment and compatibility with your motorcycle before installation. Professional installation is recommended.
