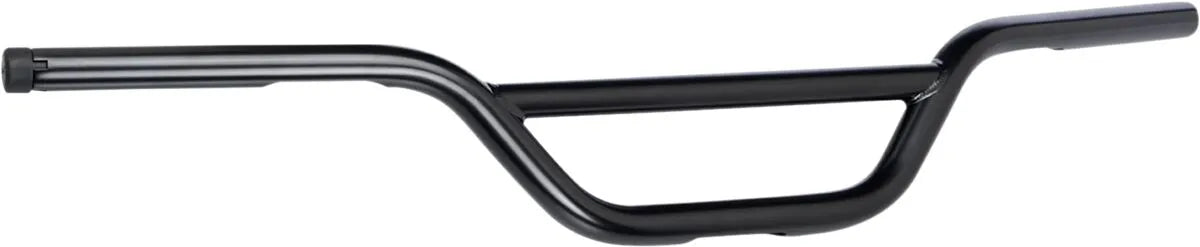

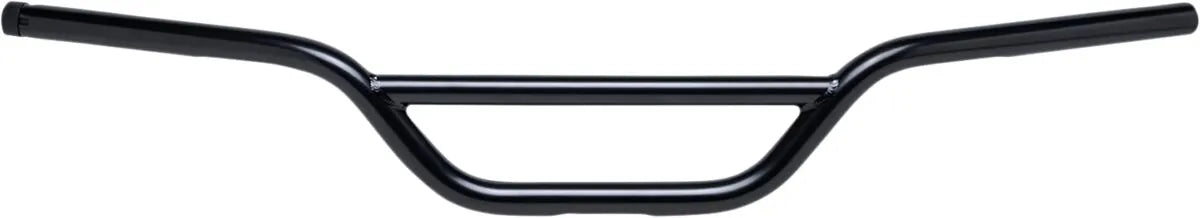

Biltwell 1" Black Handlebar W/ Tbw Plugs

Upgrade your motorcycle with the Biltwell 1" Handlebar, designed for superior performance and a sleek aesthetic. Crafted from high-quality materials and engineered for precision, this handlebar enhances your riding experience whether you're navigating city streets or cruising on the open road. The black finish adds a touch of modern style to any bike.

Description

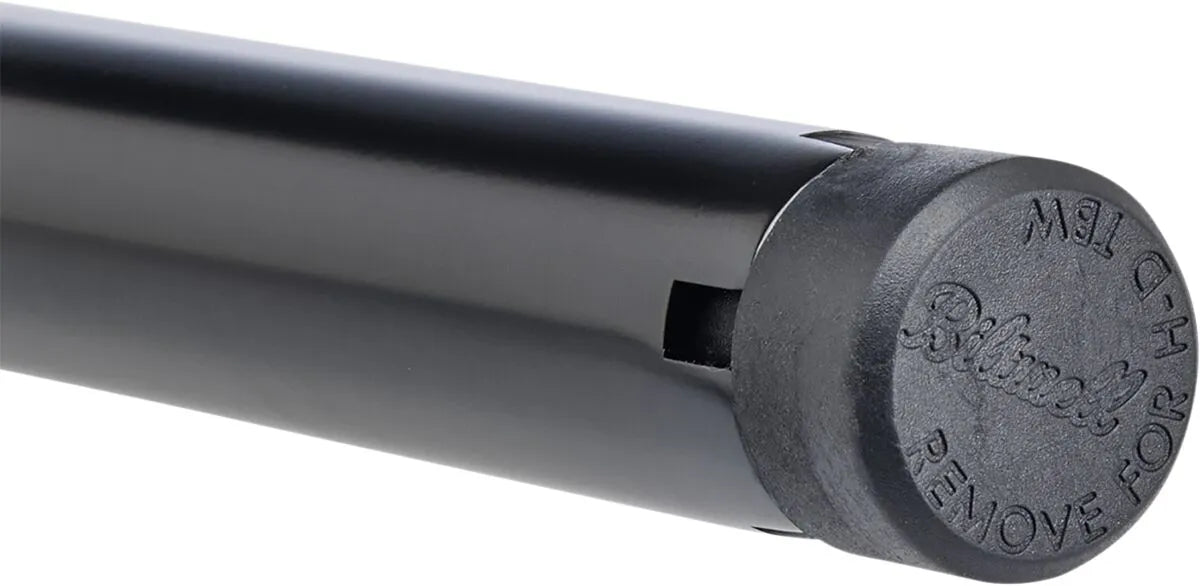

The Biltwell 1" Handlebar features a robust, thick-walled 0.120" (3 mm) 4130 chromoly construction, ensuring durability and reliability. Precision mandrel-bent tubing provides exceptional alignment and comfortable ergonomics. Milled slots on the bar ends and clamping area facilitate clean internal wire routing, offering a professional look. The notched and internally tapered right-side bar end is specifically designed to accept the Harley Throttle-By-Wire (TBW) control module, ensuring seamless integration. Furthermore, an injection-molded, reinforced nylon plug in the bar end allows compatibility with both cable throttles and TBW systems by simply removing the plug. Precision mitered, TIG welded tube joints guarantee a strong and clean connection, enhancing the overall integrity of the handlebar. With a 1" clamping diameter and a sleek black finish, this Biltwell handlebar is perfect for riders seeking both style and function. The handlebar measures 78.5 cm (31") in width, with a 11 cm (4-1/4") end rise.

Features & highlights

• Durable 0.120" (3 mm) thick-walled 4130 chromoly construction for long-lasting performance.
• Throttle-By-Wire (TBW) compatible with notched and internally tapered right-side bar end.
• Milled slots for clean and easy internal wire routing.
• Precision mandrel-bent tubing ensures accurate alignment and comfortable ergonomics.
• Injection-molded nylon plug for compatibility with both cable and TBW throttles.
• Sleek black finish enhances the look of any motorcycle.
• Precision mitered and TIG welded tube joints for superior strength.

Technical specifications

• Brand: Biltwell
• Product Name: Handlebar
• Type/Bend: Moto
• Material: Chromoly
• Color/Finish: Black
• Handlebar Diameter: 1" (25.4 mm)
• Clamping Diameter: 1" (25.4 mm)
• Controls Diameter: 1" (25.4 mm)
• Width: 31" (78.5 cm)
• Center Width: 4-3/4" (12 cm)
• Rise: 4-1/4" (11 cm)
• End Rise: 4-1/4" (11 cm)
• Pullback/Sweep: 2-3/4" (69.9 mm)
• Features: Cable Throttle Application, Slotted, Notched for Throttle-By-Wire

Important to know

Ensure proper installation and compatibility with your motorcycle model before use. Professional installation is recommended.
