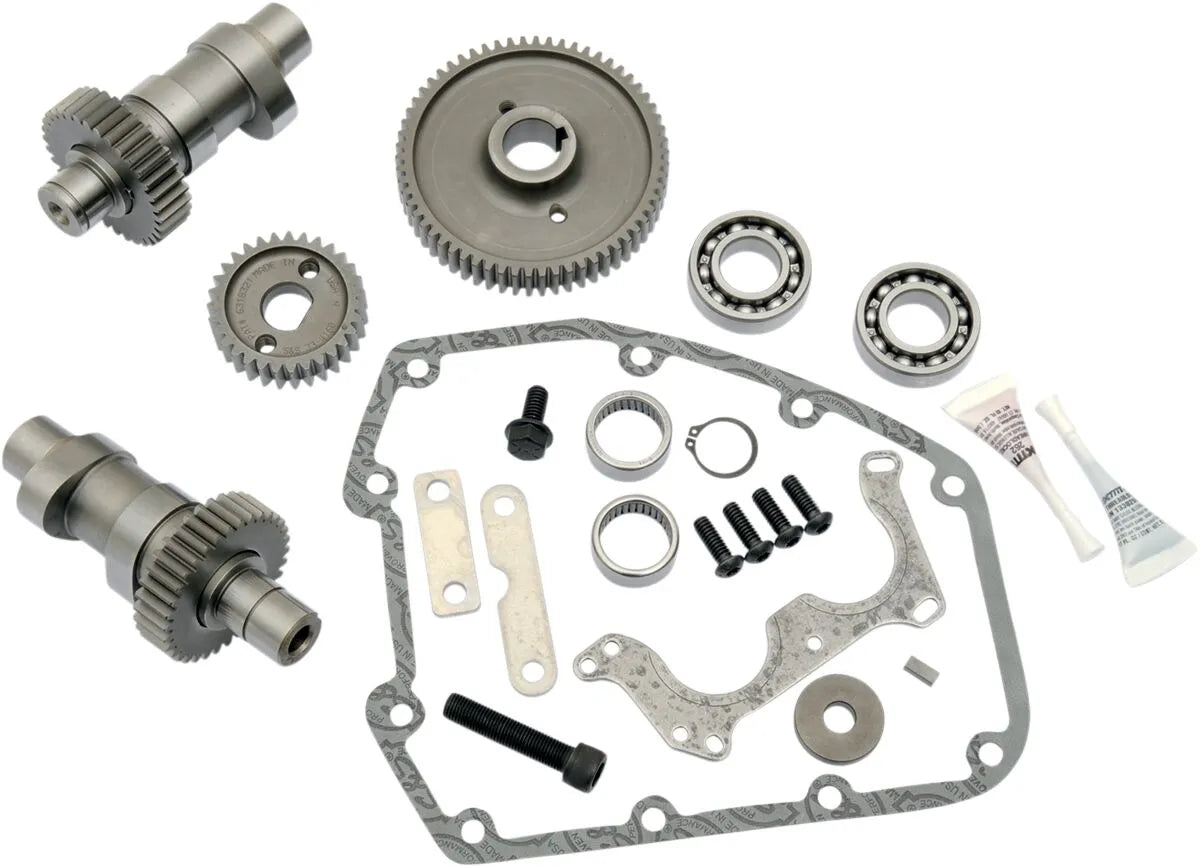

S&s Cycle 570g Camshaft Kit - Gear Drive

Upgrade your Harley-Davidson's performance with the S&S Cycle 570G Camshaft Kit. This gear drive camshaft kit is engineered to deliver increased valve timing accuracy and superior performance. Experience the difference in power and responsiveness that S&S Cycle provides.

Beskrivelse

The S&S Cycle 570G Camshaft Kit is specifically designed for 88" to 103" CID engines with compression ratios between 9:1 and 10:1. This kit provides the strongest performance gains in the 3200-3700 RPM range, making it ideal for riders seeking enhanced mid-range power. By utilizing a gear drive system, the kit eliminates timing chain lash and replaces loosely fitted stock chain drives, resulting in more precise valve timing. The innovative design reverses the rear cam's rotation, which creates additional operating clearance between cam lobes, allowing for higher cam lifts. S&S Cycle's commitment to quality ensures that you receive a product that is built to last and perform. Note that material must be removed from the inner surface of the stock gear cover to ensure proper installation.

Funktioner og højdepunkter

• Optimized for 88" to 103" CID engines with 9:1 to 10:1 compression ratios, delivering peak performance.
• Gear drive system enhances valve timing accuracy by eliminating timing chain lash.
• Increases mid-range power, with the strongest gains between 3200-3700 RPM.
• Reverse rear cam rotation provides increased cam lobe clearance, enabling higher cam lifts.
• Manufactured in the USA with high-quality materials for durability and reliability.
• Complete kit includes all necessary components for installation, simplifying the upgrade process.
• Designed for enthusiasts and professionals seeking improved engine performance and responsiveness.

Tekniske specifikationer

• Brand: S&S Cycle
• Product Name: Camshaft Kit
• Type: Gear
• Grind: 570 Series
• Intake Open: 20°
• Intake Close: 40°
• Intake Duration: 240°
• Intake Lift: 0.570"
• Intake Lift at TDC: 0.187"
• Intake Lobe Centerline: 100°
• Exhaust Open: 55°
• Exhaust Close: 20°
• Exhaust Duration: 255°
• Exhaust Lift: 0.570"
• Exhaust Lift at TDC: 0.179"
• Exhaust Lobe Centerline: 107.5°

Vigtigt at vide

• Designed for 88" to 103" CID engines with compression ratios between 9:1 and 10:1.
• Material must be removed from the inner surface of the stock gear cover for installation.
• A hydraulic press and other professional-level tools are required for installation.
• S&S recommends using an adjustable pushrod/cover kit.
• Cam bearings and gasket must be replaced when installing new cams.
• Due to the characteristics of gear drives, increased valve train noise may occur.
• The installer must check coil bind, valve-to-valve clearance, and valve-to-piston clearance.
