Kibblewhite Stainless Intake Valve Spring Kit

Upgrade your valvetrain with the Kibblewhite Stainless Steel Intake Conversion Valve and Spring Kit. This kit provides a cost-effective and durable alternative to OEM titanium parts, significantly extending the lifespan of your intake components.

Beskrivelse

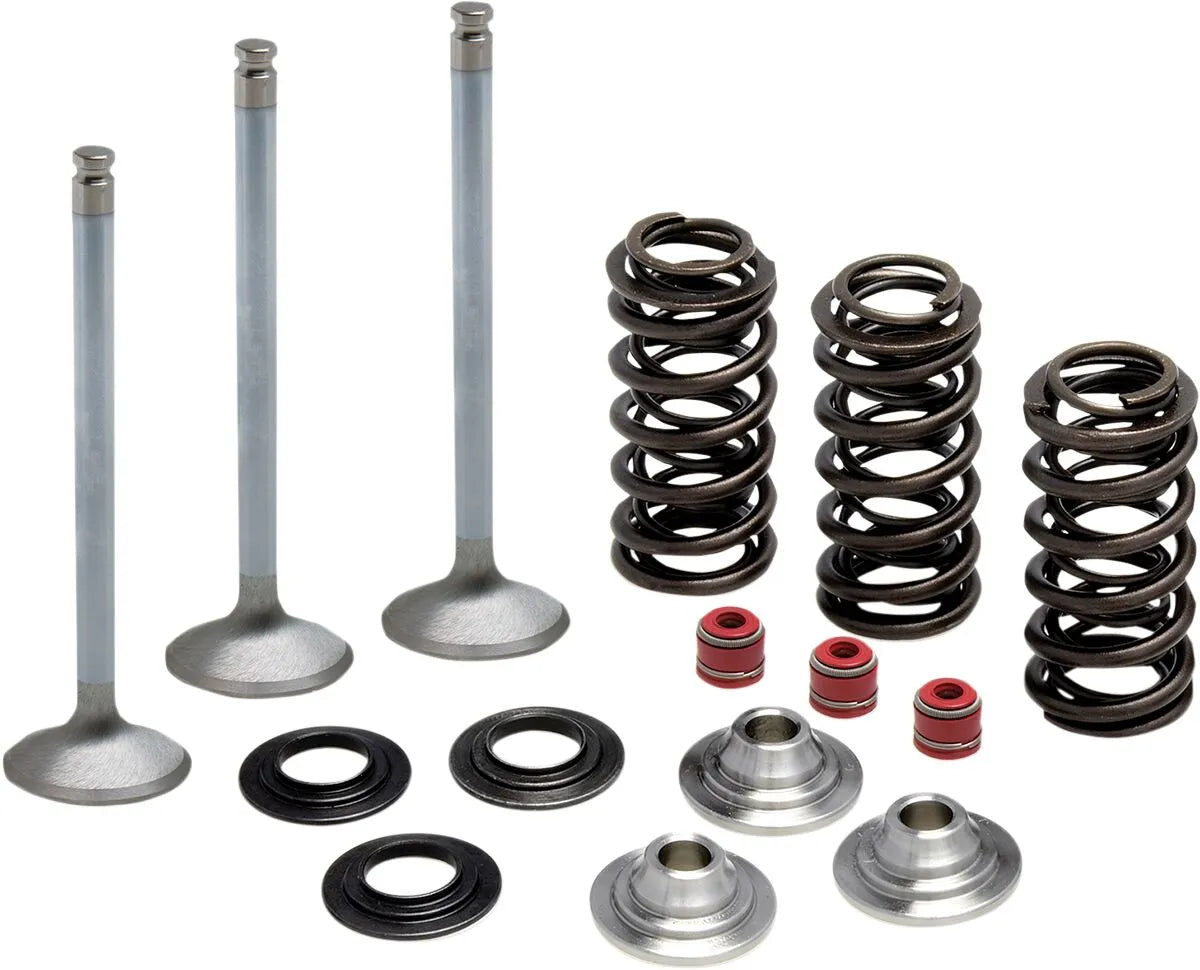

The Kibblewhite Intake Valve and Spring Kit is engineered to enhance the durability and performance of your engine's valvetrain. Specifically designed as a conversion kit, it replaces original equipment titanium intake valves with robust, one-piece forged stainless steel Black Diamond intake valves. This conversion can extend the life of your valvetrain up to four times longer than the OEM titanium parts. The kit includes wound chrome-silicon heat-treated wire valve springs, ultra-light titanium retainers, and hardened steel bases. Each component is meticulously crafted using Finite Element Analysis (F.E.A.) software, coupled with specialized camshaft analysis and spring design software, ensuring optimal performance and compatibility. Installation ensures a more reliable and longer-lasting valvetrain.

Funktioner og højdepunkter

• Upgrades to long-life stainless steel Black Diamond intake valves.
• Extends valvetrain life up to 4x compared to OEM titanium parts.
• Includes forged one-piece stainless steel intake valves for superior strength.
• Features wound chrome-silicon heat-treated wire valve springs for consistent performance.
• Ultra-light titanium retainers reduce valvetrain mass.
• Hardened steel bases provide a stable foundation for the valve springs.
• Precision-engineered using F.E.A. software for optimal design.

Tekniske specifikationer

• Brand: Kibblewhite
• Vendor Part Number: 80-80950
• Application: Intake
• Collar Material: Titanium
• Head Diameter: 27.00 mm
• Length: 3.040", 3.000"
• Material: White Diamond® Stainless
• Product Name: Valve and Spring Kit
• Spring Lift: 0.380"
• Spring Open Pressure: 86 lb
• Spring Seat Pressure: 39 lb
• Stem Diameter: 4.50 mm
• Tulip Angle: 15°
• Type: Conversion
• Units: Kit
• Valve Seat Height: 1.105"

Vigtigt at vide

This kit is specifically designed as an intake conversion kit. Please ensure compatibility with your motorcycle model before installation.
