Kibblewhite Intake Valve And Spring Kit

Upgrade your valvetrain with the Kibblewhite Intake Stainless Conversion Valve and Spring Kit. This kit provides a cost-effective solution to convert your cylinder head to utilize long-life stainless steel Black Diamond intake valves. Experience enhanced durability and performance with components engineered for demanding applications.

Beskrivelse

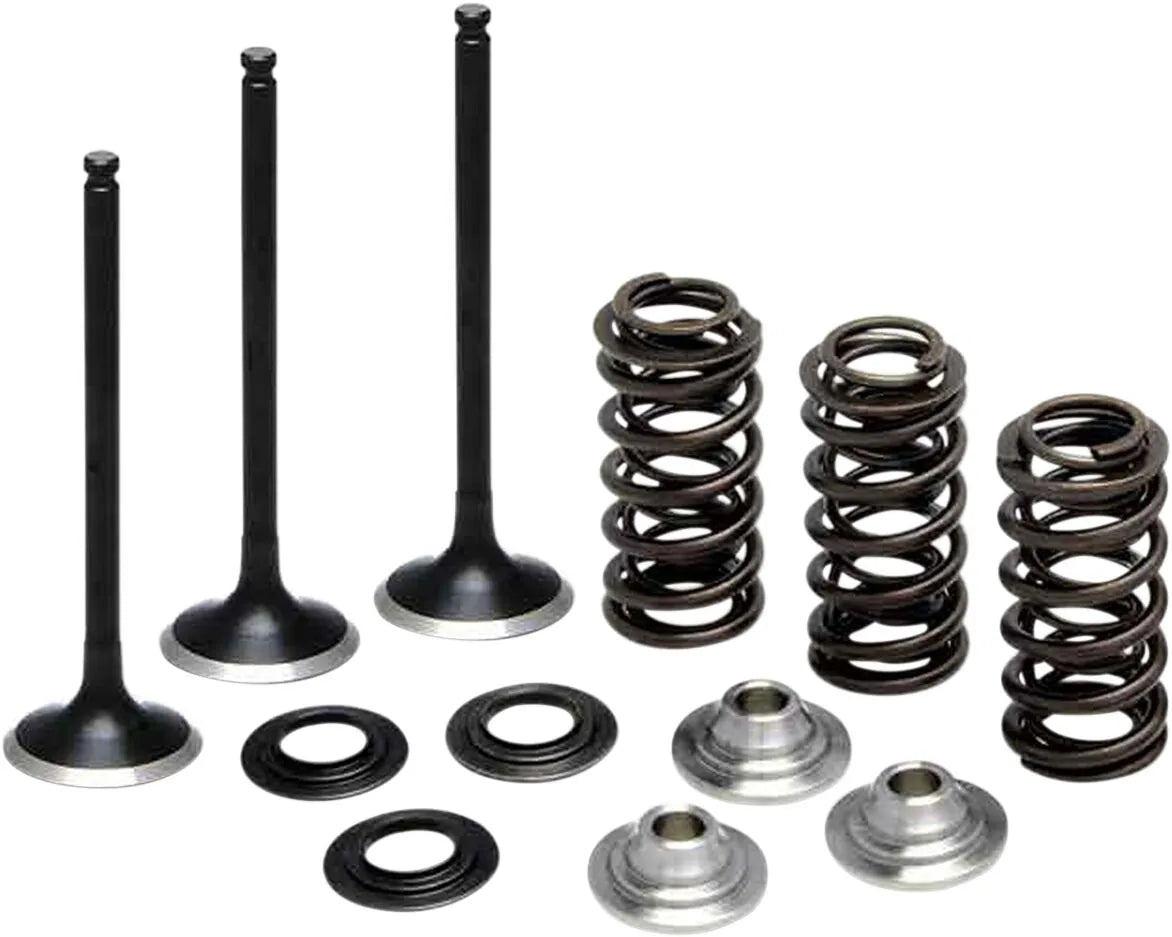

The Kibblewhite Intake Stainless Conversion Valve and Spring Kit dramatically extends the lifespan of your valvetrain and intake components, offering up to 4x the durability compared to OEM titanium parts. This comprehensive kit includes forged one-piece stainless steel intake valves, precision-wound chrome-silicon heat-treated valve springs, ultra-light titanium retainers, and hardened steel bases. Each component is meticulously designed using Finite Element Analysis (F.E.A.) software, combined with proprietary camshaft analysis and spring design software. Specifically engineered for optimal performance and a precise fit, this conversion kit ensures reliability and longevity. Installation is straightforward, allowing for a seamless upgrade to your engine's intake system.

Funktioner og højdepunkter

• Extends valvetrain life up to 4x compared to OEM titanium parts.
• Includes forged one-piece Black Diamond stainless steel intake valves.
• Features chrome-silicon heat-treated valve springs for consistent performance.
• Ultra-light titanium retainers reduce valvetrain mass.
• Hardened steel bases provide enhanced durability.
• Engineered using Finite Element Analysis (F.E.A.) for optimal design.
• Proudly made in the USA.

Tekniske specifikationer

• Brand: Kibblewhite
• Vendor Part Number: 80-80850
• Application: Intake
• Valve Material: Black Diamond™ Stainless
• Collar Material: Titanium
• Head Diameter: 23.00 mm
• Stem Diameter: 4.00 mm
• Length: 3.150"
• Tulip Angle: 25°
• Valve Seat Height: 1.105"
• Spring Lift: 0.380"
• Spring Open Pressure: 86 lb
• Spring Seat Pressure: 39 lb
• Type: Conversion Kit

Vigtigt at vide

This kit includes all necessary components to convert your head to stainless steel intake valves. Please ensure compatibility with your specific engine model before installation.
