Kibblewhite Intake Valve And Spring Kit

Upgrade your valvetrain with the Kibblewhite Intake Stainless Conversion Valve and Spring Kit. This kit provides a robust and long-lasting alternative to OEM titanium parts, enhancing the performance and lifespan of your engine.

Beskrivelse

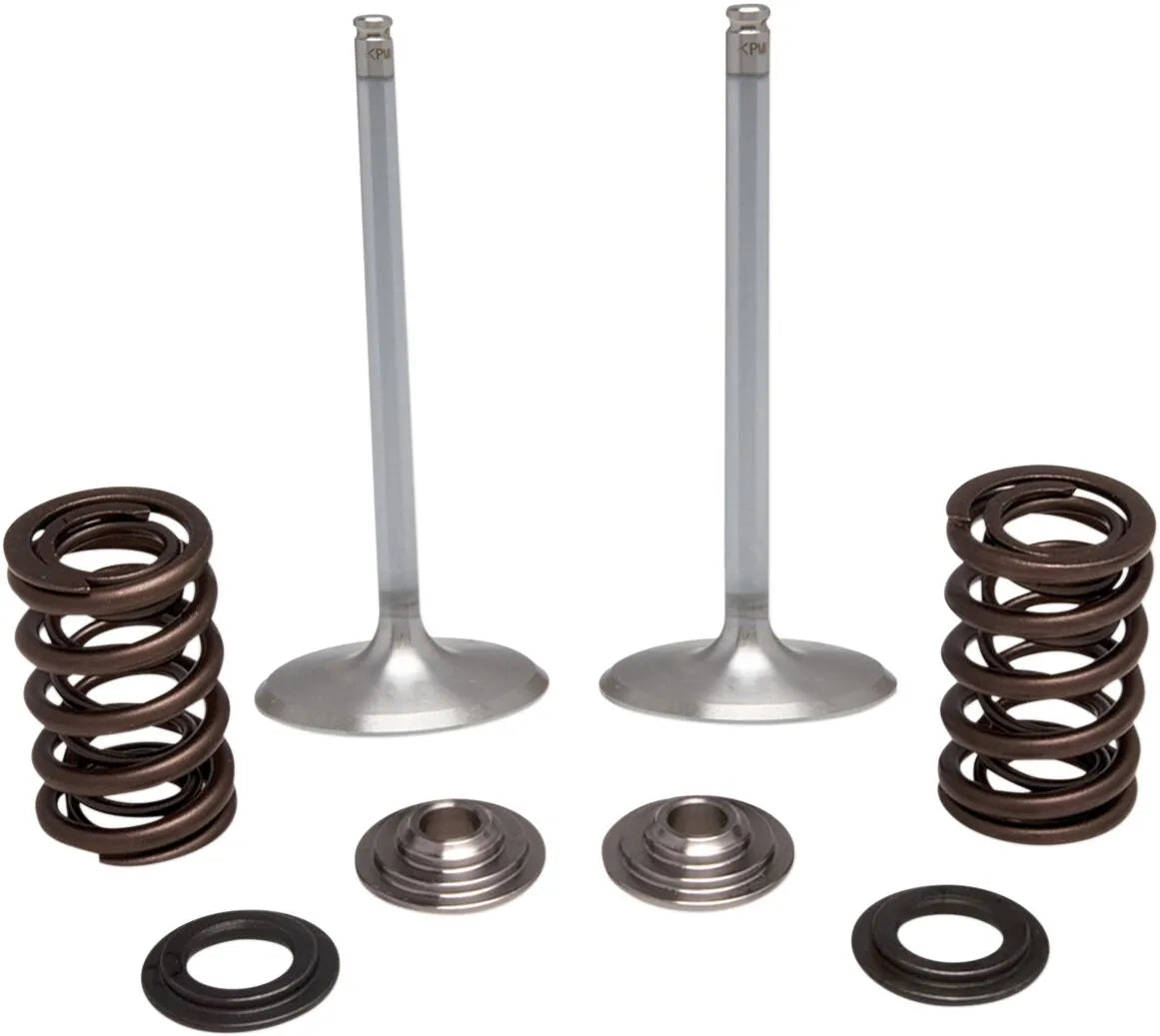

The Kibblewhite Intake Stainless Conversion Valve and Spring Kit is engineered to extend the life of your valvetrain and intake components by up to four times compared to OEM titanium parts. This comprehensive kit includes forged one-piece stainless steel intake valves, wound chrome-silicon heat-treated wire valve springs, ultra-light titanium retainers, and hardened steel bases. Each component is meticulously designed using Finite Element Analysis (F.E.A.) software, as well as proprietary camshaft analysis and spring design software, ensuring optimal performance and reliability. Specifically engineered for each application, this conversion kit offers a seamless upgrade, delivering improved durability and consistent performance. The 38.00 mm head diameter ensures proper flow, while the White Diamond® Stainless material provides excellent wear resistance. Made in the USA, this kit exemplifies superior quality and craftsmanship.

Funktioner og højdepunkter

• Extends valvetrain life up to 4x over OEM titanium parts.
• Includes forged one-piece stainless steel Black Diamond intake valves.
• Features wound chrome-silicon heat-treated wire valve springs for superior performance.
• Ultra-light titanium retainers minimize valvetrain mass.
• Hardened steel bases provide exceptional durability.
• Engineered with Finite Element Analysis (F.E.A.) for optimal design.
• Made in the USA for guaranteed quality.

Tekniske specifikationer

• Brand: KIBBLEWHITE
• Product Name: Valve and Spring Kit
• Application: Intake
• Type: Conversion
• Material: White Diamond® Stainless
• Head Diameter: 38.00 mm
• Stem Diameter: 5.00 mm
• Length: 3.080"
• Tulip Angle: 20°
• Collar Material: Titanium
• Spring Lift: 0.440"
• Spring Open Pressure: 162 lb
• Spring Seat Pressure: 50 lb

Vigtigt at vide

This stainless steel conversion kit includes only what's needed to convert your head to the long-life stainless steel Black Diamond intake valves.
