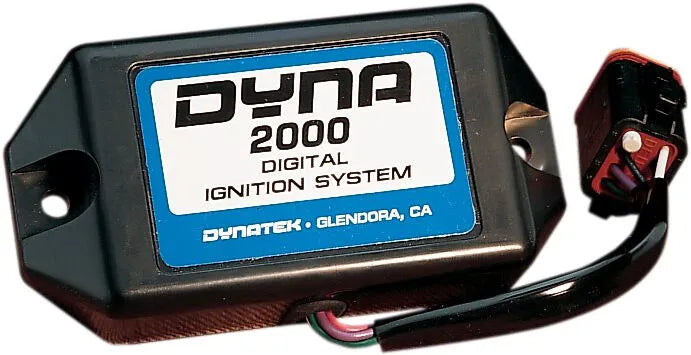

Dynatek 2000-hde Digital Ignition Module

Upgrade your late-model Harley's ignition system with the Dynatek 2000-HDE PC-Programmable Digital Ignition Module. This micro-computer controlled ignition module provides precise control over the entire ignition process, optimizing performance and reliability. Tailor the advance curve and rev limiter to match your engine's specific requirements for peak power and efficiency.

Beskrivelse

The Dynatek 2000-HDE ignition module features four built-in advance curves to accommodate stock to highly modified engines across diverse operating conditions. Four independent rev limiter settings, ranging from 6000 to 7500 rpm, provide customizable engine protection. PC programmability allows for defining wide-open throttle and part-throttle curves, rev limits, dead-cranking revs, and rear cylinder offset. The module's separate tach output wire ensures accurate tachometer operation during rev limiting and in single-fire mode. A diagnostic LED indicator simplifies troubleshooting and static timing procedures. Improve your motorcycle's performance with this high-quality ignition module. Note: Installation may require professional assistance. Ensure compatibility before purchase.

Funktioner og højdepunkter

• Provides extremely accurate control over the entire ignition process.
• Allows riders to tailor the advance curve and rev limiter to their engine's needs.
• Offers four built-in advance curves for stock to highly modified engines.
• Features four independent rev limiter choices from 6000 to 7500 rpm for optimal protection.
• PC programmability enables custom wide-open and part-throttle curves, rev limits, and more.
• Includes a separate tach output wire for clean tach operation.
• Diagnostic LED simplifies troubleshooting and static timing.

Tekniske specifikationer

• Brand: Dynatek
• Product Name: Module
• Type: Ignition
• Color/Finish: Black
• Connection Type: 8 Pin
• Ignition Fire Method: Dual

Vigtigt at vide

This ignition module is not compatible with fuel-injected models or Dyna "S" systems; use HD1/HD2 systems only. Carbon fiber-type suppression spark plug wires are required to reduce radio frequency interference when using electronic advance ignitions like the Dyna 2000-HD1 or the stock Harley ignition. Copper wires may cause ignition malfunction due to electrical noise. The original wires supplied by Harley-Davidson should be suitable.
