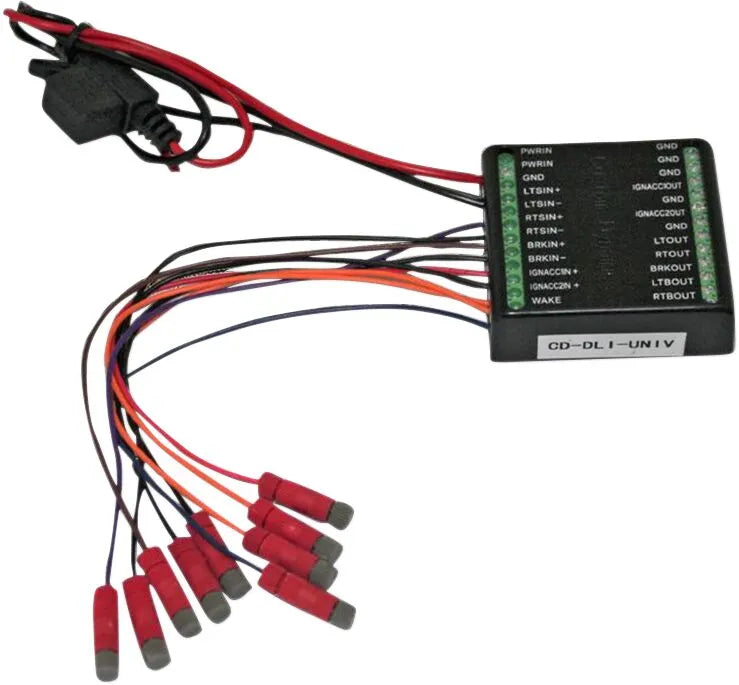

Custom Dynamics Dynamic Load Isolator Module
Custom Dynamics Dynamic Load Isolator Module
På lager (15)
-
Estimated delivery: Feb 04 - Feb 08
Om dette produkt
Om dette produkt
The Custom Dynamics Dynamic Load Isolator Module provides total electrical isolation for your motorcycle's lighting and accessories. This unit ensures reliable performance and protects your vehicle's electrical system from damage, allowing you to add custom lighting with confidence.
Beskrivelse
This Dynamic Load Isolator (DLI) module provides complete isolation between your motorcycle's electrical system and aftermarket lighting or accessories. It features short circuit protection on all outputs, eliminating the need for relays or other mechanical components. With a robust 30 A maximum total capacity, this module can handle a significant load. The DLI provides isolated outputs for left turn, right turn, brake, and run/accessory functions. An isolated integrated turn/brake output simplifies wiring for combination lighting setups. Installation is plug-and-play, and an optional 4-pin trailer harness (part # 2120-0929, sold separately) can be connected to the DLI outputs for a fully isolated, plug-and-play trailer lighting connection. Upgrade your lighting setup with the peace of mind that comes with the Custom Dynamics Dynamic Load Isolator module.
Funktioner og højdepunkter
- Provides total isolation of lighting and electrical accessories from the vehicle's electrical system, preventing interference and damage.
- Offers short circuit protection on all outputs, eliminating the need for external relays and simplifying wiring.
- Features a high 30 A maximum total capacity, capable of handling multiple accessories.
- Includes isolated outputs for left turn, right turn, brake, and run/accessory functions.
- Integrated turn/brake output simplifies wiring for combination lighting applications.
- Offers plug-and-play installation for ease of use.
- Supports optional plug-and-play trailer lighting hookup with the Custom Dynamics 4-pin trailer harness (sold separately).
Tekniske specifikationer
- Brand: Custom Dynamics
- Product Name: Isolator Module
- Amps: 30 A
- Color/Finish: Black
- Connector Style: Hard Wire
Vigtigt at vide
Optional 4-pin trailer harness (part # 2120-0929) is sold separately.
